ZPE Nodegrid Gate SR Quick Start Manual

Security Warning
The Nodegrid Gate SR (GSR)
provides extensive access to
the devices attached to this
equipment. As a result, care
must be taken to avoid
compromising your security
policies.
From the factory, this
equipment is shipped with
the following settings:
• DHCP, SSHv2, HTTPS –
ENABLED
• All Serial, USB, SFP+ and
switch ports – DISABLED
• Ethernet – ENABLED
• Two default users with
passwords:
– root / root
– admin / admin
ZPE recommends changing
the default passwords of
admin and root, as well as
carefully configuring
security settings
immediately after initial
setup.
Please consult the GSR User
Guide for more information
on security settings.
Please consult the GSR
Safety Information before
installation.
This equipment is intended
only for installation in a
RESTRICTED ACCESS
LOCATION.
By installing, copying, or otherwise using this device, you agree to be bound by the terms of the licensing, maintenance and sale agreements set forth on
www.zpesystems.com/docs/legal. if you do not agree to the terms of those agreements, do not install or use the Hardware and/or Software Product(s).
Quick Start Guide for Nodegrid Gate SR
1
Rack mounting or desktop
(Rack mounting ears shown)
Front
Back
4
Option for
DC power adaptor or DC source
1
Desktop or rack mount your GSR
For detailed rack mounting instructions, see
the GSR User Guide.
2
Connect to your network
Connect a ZPE-recommended
CAT 5e or CAT 6 cable from the
10/100/1000BaseT port to your network.
3
Connect to the Serial Console port
Using the ZPE's RJ-45 console adaptor,
connect a terminal or workstation to the
serial console port on the GSR. The GSR will
Note: All remaining manual setup steps are required the first time you configure your GSR.
For manual downloads and support, visit: www.zpesystems.com/document-library/
For further assistance please contact ZPE Technical Support (support@zpesystems.com).

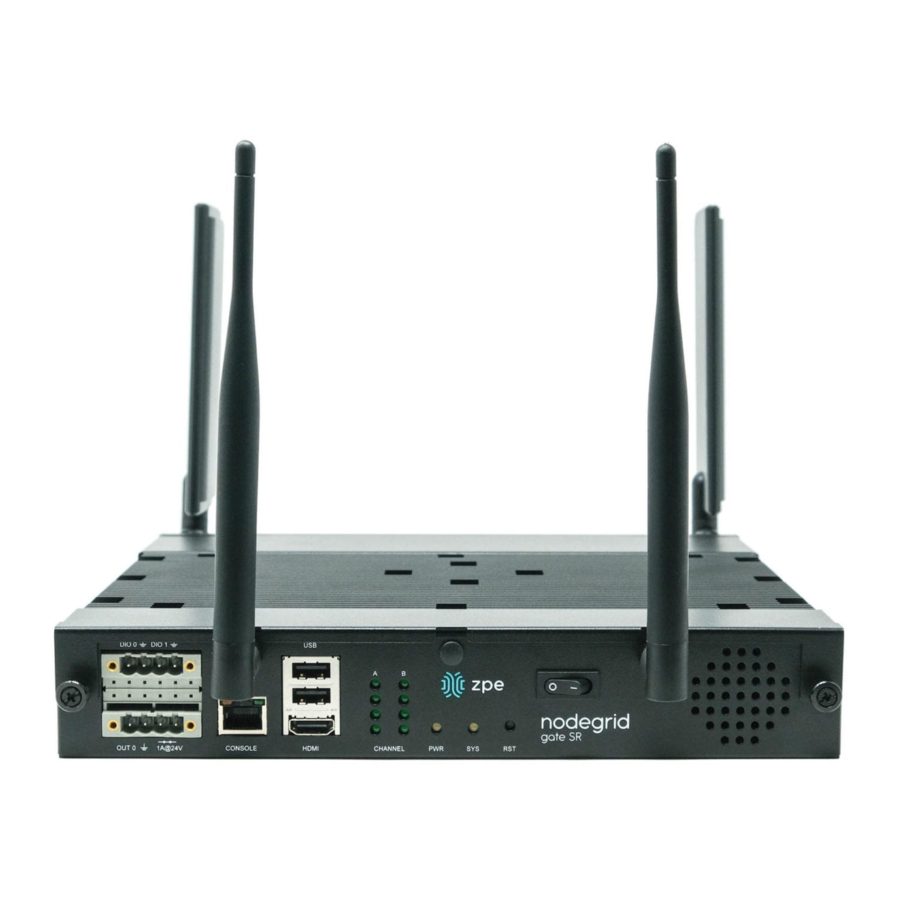

Nodegrid Gate SR shown
Wi-Fi
Optional
Antenna
Console
HDMI
3
Key Description
V1-
Return
V2-
⏚ Ground
V1+
36 – 75V
V2+
be configured using a terminal or terminal
emulator with session settings of: 115200
bps, 8, N, 1 no flow control.
Alternatively, use the HDMI port.
4
Connect power cables
Connect the power cables to the appliance.
5
Turn GSR on
Turn on the power switches.
Nodegrid Gate SR
4G/LTE
Optional
Antenna
5
Power
Switch
2
GbE
TM
