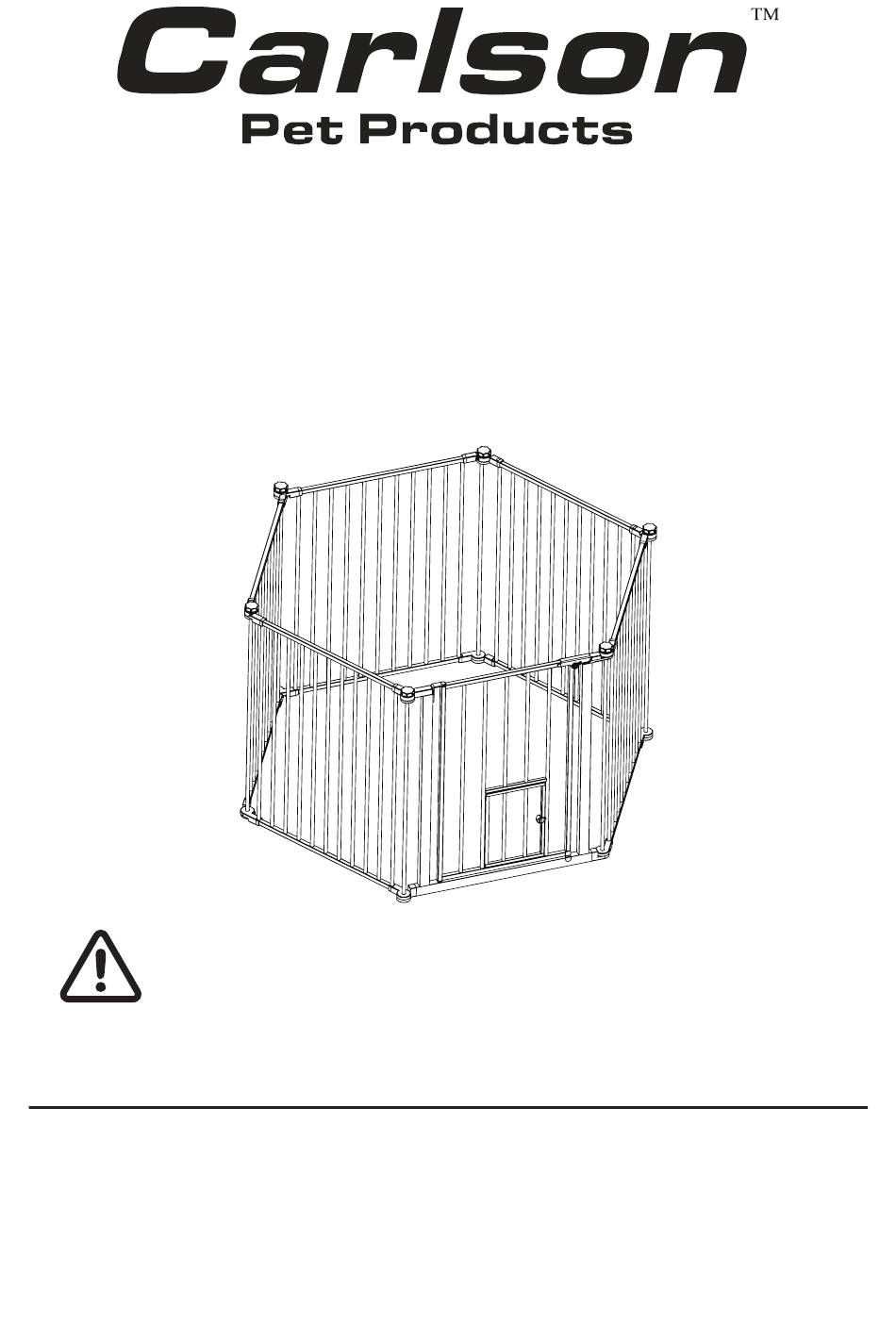

2 in 1 Super Wide
Pet Pen & Gate
™
with small pet door
MODEL NO: 2600, 2600 HW
Owner's Manual
READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE
OF GATE. KEEP INSTRUCTIONS FOR FUTURE USE.
www.carlsonpetproducts.com
Carlson Pet Products, Inc.
3200 Corporate Center Drive, Suite 105
Burnsville, MN 55306-9804,USA
Phone: 952-435-1084
Made in China
Advertisement
Related Manuals for Carlson Pet Products 2 in 1 Super Wide
Summary of Contents for Carlson Pet Products 2 in 1 Super Wide
- Page 1 2 in 1 Super Wide Pet Pen & Gate ™ with small pet door MODEL NO: 2600, 2600 HW Owner’s Manual READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE. KEEP INSTRUCTIONS FOR FUTURE USE. www.carlsonpetproducts.com Carlson Pet Products, Inc.
-
Page 2: Assembly And Installation Instructions
Contact Carlson for questions and replacement parts. For questions about the use of your pet gate, call our customer care line 952-435-1084. Carlson Pet Products, Inc. 3200 Corporate Center Drive, Suite 105, Burnsville, MN 55306-9804,USA. Made in China... - Page 3 Check to make sure you have all of the parts shown: A. Pet Yard Frame Panels (6 panels) B. Wall Mounting Brackets (X4) Attached to frame end panels C. Wall Mounting Screws (X8) ADDITIONAL PANELS SOLD SEPARATELY!
- Page 4 Installation Option A : To install the Super Gate as a barrier between two walls. Step 1. Begin by unfolding the gate frame. To do this, simply loosen the Locking Knobs at each pivoting joint by turning the knob counter clockwise as shown in Diagram A. Loosen the knobs enough to allow the gate to swing open freely without fully removing the knobs.
- Page 5 Step 3. Use a Phillips/crosshead screwdriver to x the Wall Mounting Bracket to the Wall as shown in Diagram C Diagram C Step 4. Repeat steps 2 & 3 on the other end of the gate. Arrange the panels into your desired con guration, then tighten each of the Locking Knobs.
- Page 6 Installation Option B : To set it up as a Pet Yard enclosure. Step 1. Begin by unfolding the gate frame. To do this, simply loosen the Locking Knobs at each pivoting joint by turning the knob counter clockwise as shown in Diagram A. Loosen the knobs enough to allow the gate to swing open freely without fully removing the knobs.
- Page 7 Step 3. Position the Pet into your desired con guration (Example: Octagon, Square, etc.) Then, join the free ends of the the Pet Yard together at the plastic joints as shown in Diagram E1 and E2. Diagram E1 Diagram E2 Step 4.
- Page 8 Step 5. Finally, tighten each of the Locking Knobs by turning them clockwise, xing the Pet Yard into the con guration you have decided upon. To position the Pet Yard into a new con guration or shape, simply loosen each of the Locking Knobs, adjust and re-tighten.
- Page 9 Carlson Pet Products LLC will replace or repair it at Carlson’s option. PROOF OF PURCHASE REQUIRED.
- Page 10 Repla cement Parts Available In the event of any damage or breakage, the following replacement parts are available for order by contacting Carlson Customer Service.
- Page 11 To extend your Pet Yard or gate into a larger shape, please purchase: E Pet Yard Extension Kit Model # : 0440W And/Or O Pet Yard Extension Kit Model # : 0450W...
- Page 12 Carlson Pet Products,Inc 3200 Corporate Center Drive, Suite 105 Burnsville, MN 55306-9804,USA Phone: 952-435-1084 20190103ET...
