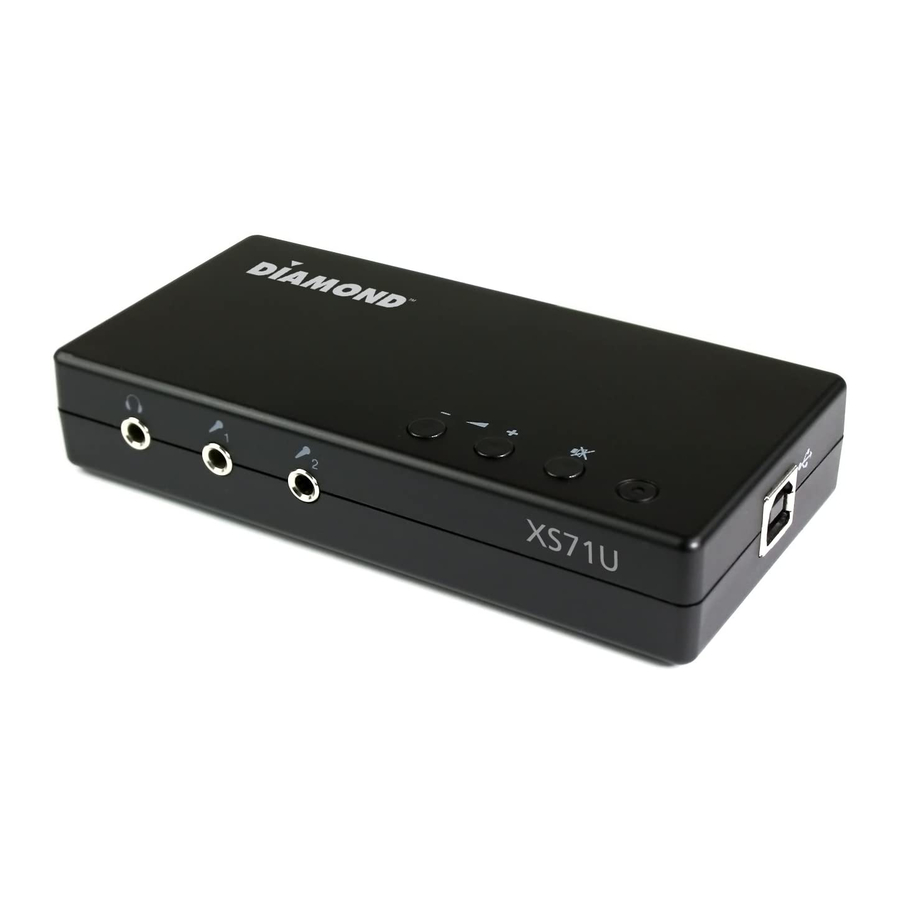

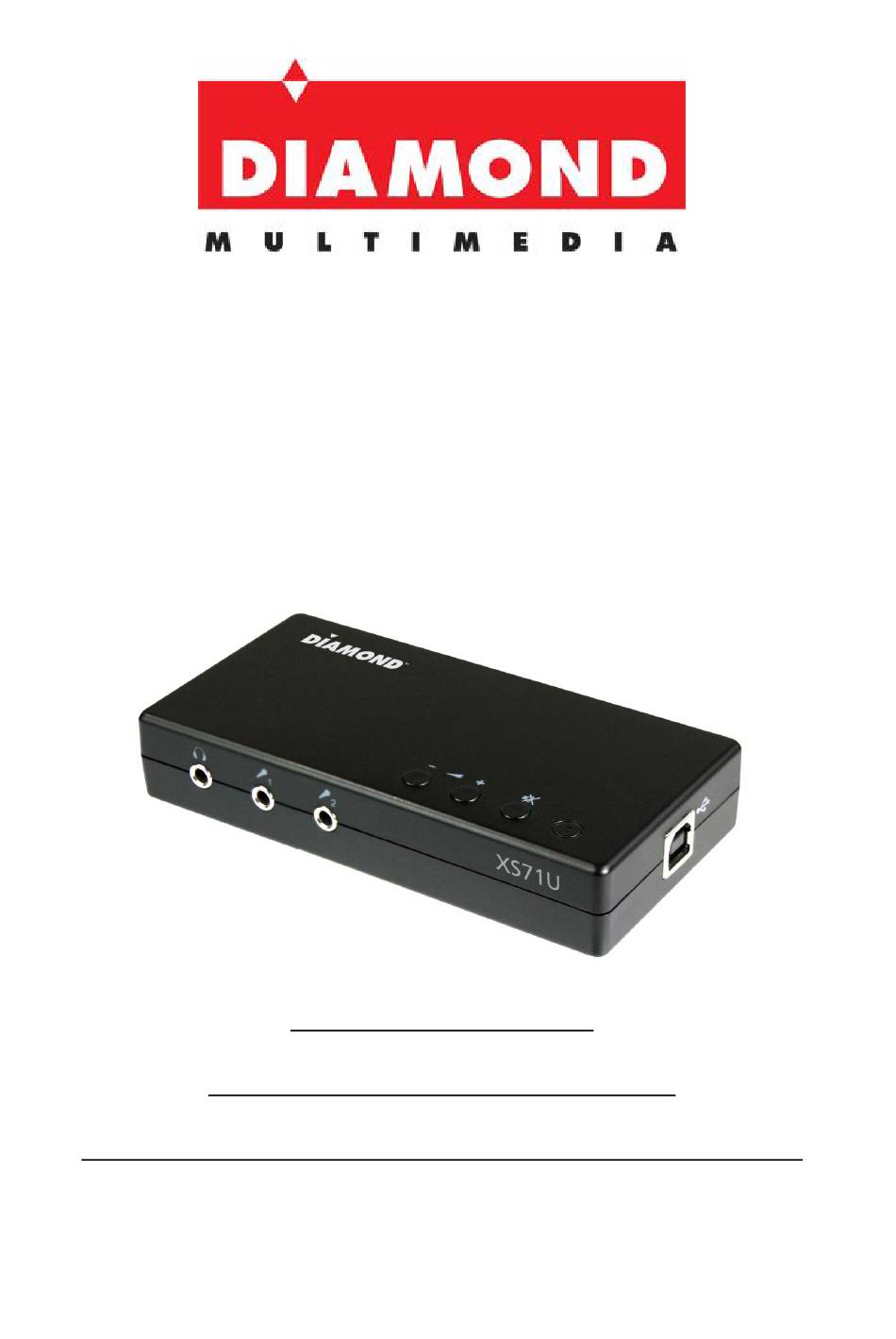

- Page 1 Xtreme Sound USB External Sound Card Digital HD 7.1 XS71U Quick Installation Guide Configuration Guide for Windows XP Configuration Guide for Windows Vista, Windows 7/8/8.1...
- Page 2 Quick Setup Guide of 7.1 USB Sound Card 1) Switch your PC on and wait until Windows is fully loaded. 2) Now connect the Diamond XS71U 7.1 USB Sound Card with your PC. 3) Now install the drivers and the control panel. A message may appear that the publisher of the driver software could not be verified.
-
Page 3: Configuration Guide
Configuration Guide for Windows XP Configuration Guide Diamond 7.1 USB Sound Card in Windows XP For the installation of the Diamond XS71U 7.1 USB Sound Card are two steps necessary: Step 1. The automatic installation of a generic USB driver. Step 2. - Page 4 In order to use all connected Speakers, you have to make a few more settings as shown below! The “Diamond 7.1 USB Sound Card” has to be set as „Default device“. If this is done, click on „Advanced“ at the “Volume”-Tab to enable the 7.1 surround functionality.
- Page 5 Choose „ Diamond 7.1 home theatre speakers“ and then “OK”! Now the configuration is done. You will get back to the Sound Menu! In order to use the Diamond 7.1 USB Sound Card as your default record device, you have to follow the next steps shown below.
- Page 6 CD. If that does not launch automatically, please run the „autorun. exe“ from the software CD. After the successful installation of the control panel you have to restart your system. Please follow the instructions of the installation routine. On-Line Diamond Multimedia Support: http://tickets.diamondmm.com/ On-Line Diamond Multimedia Knowledge base: http://tickets.diamondmm.com/kb/index.php...
- Page 7 Configuration Guide for Windows Vista, Windows 7/8/8.1 Configuration Guide 7.1 USB Sound Card in Windows Vista / 7 / 8 / 8.1 For the installation of the 7.1 USB Sound Card are two steps necessary: Step 1. The automatic installation of a generic USB driver. Step 2.
- Page 8 When the installation is done, please check in the Device-Manager if Windows Vista / 7/8/8.1 /recognized the Soundcard and installed it under Sound, Video and Game Controllers as 7.1 USB Sound Card“. In order to use all connected Speakers, you have to make a few more settings as shown below! The “Diamond 7.1”...
- Page 9 Click on „7.1 Surround“ and on “Next”! Here you have to activate the „Center“, „Sub-woofer“, „Side pair“ and „Rear pair“. Proceed by clicking on „Next“. Here you can activate / deactivate both options as needed. Click on „Next“ to proceed!
- Page 10 Click on „Finish“ and the installation is done. You will get back to the Sound Menu!
- Page 11 In order to use the 7.1 USB Sound Card as your default record device, you have to follow the next steps shown below. (This applies to both microphone inputs). Here you have to set the “7.1 USB Sound Card” (1) as default device (2) for recording. If you want to use the Line Input as recording device, you have to mark the „Line“-input as default recording device.
- Page 12 CD. If that does not launch automatically, please run the „autorun.exe“ from the software CD. After the successful installation of the control panel you have to restart your system. Please follow the instructions of the installation routine. On-Line Diamond Multimedia Support: http://tickets.diamondmm.com/ On-Line Diamond Multimedia Knowledge base: http://tickets.diamondmm.com/kb/index.php...
