- Page 1 User Manual of 7.1 USB Sound Card Windows Vista, Windows 7,8 and 8.1 1. Introduction 1.1 Package Content • 1pcs Diamond XS71U 7.1 USB sound card • 1pcs USB cable (1.8m) • 1pcs Software CD • 1pcs Quick Start Guide...

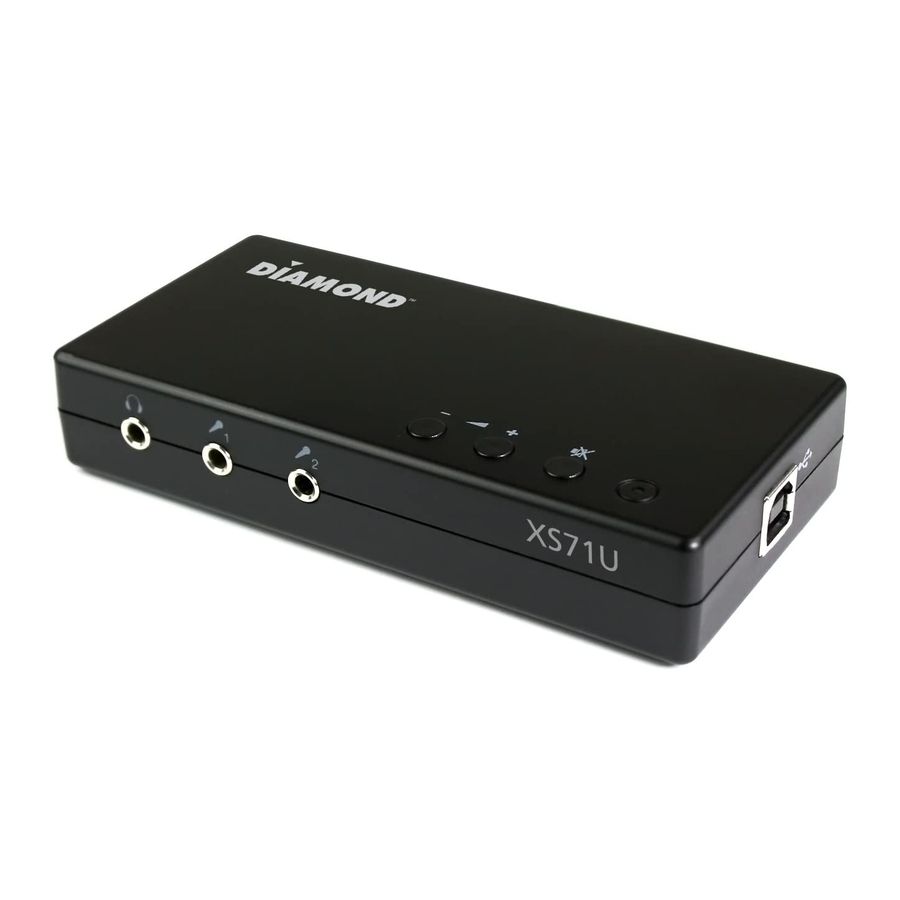

- Page 2 1.2 Layout of the 7.1 USB Sound Card Front View 1 – Analog Headphone stereo line output (3.5mm jack plug) 2 – Analog Microphone input (3.5mm jack plug) 3 – Analog Microphone input (3.5mm jack plug) 4 – USB port 5 –...
- Page 3 8 – Digital S/PDIF input (Toslink) 9 – Digital S/PDIF output (Toslink) 10 – Analog stereo line input (3.5mm jack plug) 11 – Analog stereo line output “Front” (3.5mm jack plug) 12 – Analog stereo line output “Surround” (3.5mm jack plug) 13 –...
-
Page 4: Installation
2. Installation 2.1 Connecting the 7.1 USB Sound Card to the computer To connect the 7.1 USB Sound Card to your computer, you need a free USB Type A port. It makes no difference whether the port is a USB 1.1 or USB 2.0 port; the device functions equally well when attached to either. - Page 5 Output Mode Set the speaker configuration you want to use here. Whenever you make a change, the 3D model of the speakers changes accordingly. This setting defines the number of analogue out-puts. You can activate every single speaker separately here to test them for correct wiring and function.
- Page 6 3.2 Mixer Volume You can adjust the volume of each individual input here. The faders controls the different inputs and give you the ability to mute one using the MUTE button or adjust the volume of the speakers using the faders. Record In the Record window you can set the signal source that you want to record and its volume.
- Page 7 3.3 Effect Environment You can use this menu to simulate sound effects. Have fun experimenting with different settings! Environment Size Select the size of the room in which you have set up the 7.1 speakers. This selection adjusts the volume to the room. Equalizer Using the integrated equalizer, you can increase or attenuate audio signals in 10 frequency bands to emphasize bass or treble.
- Page 8 3.4 Karaoke / Magic Voice Here you can activate special effects for your microphone input, move the tone of the play or regulate voice suppression.
- Page 9 The last tab displays general information about the application. It also allows you to Choose whether or not to display the icon for starting the Control Panel in the taskbar. On-Line Diamond Multimedia Support: http://tickets.diamondmm.com/ On-Line Diamond Multimedia Knowledge base: http://tickets.diamondmm.com/kb/index.php...
