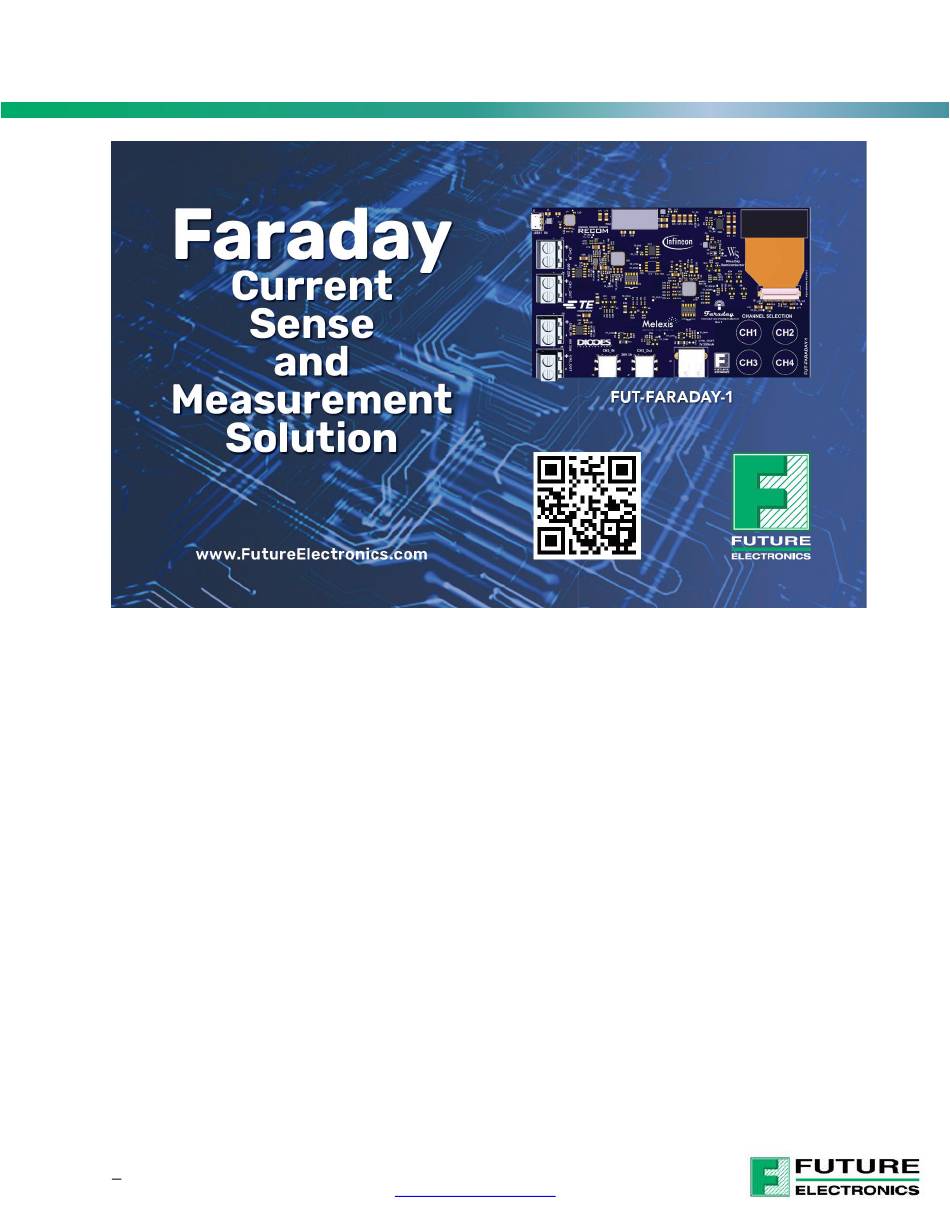

- Page 1 Faraday Current Sense and Measurement Solution Quick Start Guide 1. Faraday Package Content A. Faraday Board x 1 B. USB cable A-to-MicroB x 1 Page 1 of 5 www.FutureElectronics.com...
- Page 2 Quick Start Guide 2. Faraday Overview Faraday is a simple platform designed by Future Electronics System Design Center to demonstrate current sensing designs. It implements four channels with current sensors controlled by two Infineon PSoC 4 (CY8C4245) microcontrollers to measure voltage, current and power. Channel 1 and 2 are isolated channels...
- Page 3 Select one of the test setups as shown above and connect the power and device o Connect the Faraday board to a PC using USB port (J1) using the USB cable provided, the board will enumerate as Serial COM Port o Press the CHx button corresponding to the desired channel number (i.e.
- Page 4 Faraday Current Sense and Measurement Solution Quick Start Guide Power Source Figure 1. Voltage, Current & Power Measurement Using Channel 1 Power Source DC/DC Load Figure 2. Power Efficiency Measurement Using Both Channel 1 & 2 Page 4 of 5...
- Page 5 Faraday Current Sense and Measurement Solution Quick Start Guide USB Type C USB Type C Power Source Device Figure 3. Voltage, Current & Power Measurement on USB Type C Ports Using Channel 3 USB Device Figure 4. Voltage, Current & Power Measurement on USB Port Using Channel 4 Page 5 of 5 www.FutureElectronics.com...
