Ponte Giulio G02JAS12 Assembly Instructions

ASSEMBLY INSTRUCTIONS

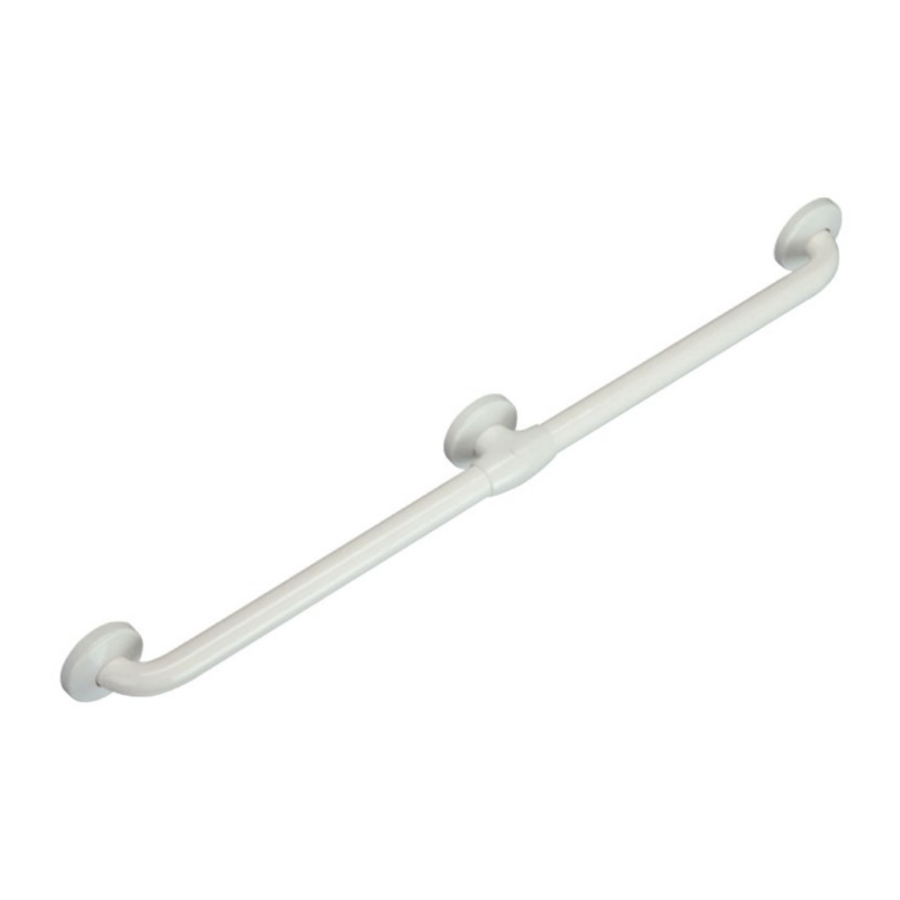

STRAIGHT GRAB BAR WITH HAND SHOWER
HOLDER
ANTIMICROBIAL
STANDARD ADA
TESTED PRODUCT
RECYCLABLE AND RECYCLED PRODUCT
ELECTRICAL INSULATION
NON-SLIP
Thank you for purchasing this Ponte Giulio item. This
product has been manufactured in respect of the
environment and safety requirements.
Ponte Giulio USA, Inc
W241 S4021 Rockwood Circle Waukesha
WI 53189 – USA
Phone +1.877.766.8301 * fax +1.877.766.8306
Web Site: www.pontegiuliousa.com
Email: usa@pontegiuliousa.com
CODE L
G02JAS12 18" 3,09 1.100 lb
L
G02JAS13 24" 3,64 1.100 lb
G02JAS14 36" 5,16 1.100 lb
G02JAS16 42" 6,33 1.000 lb
b = Rated load
= l
= lb = Net weight
= Read this manual carefully and store this manual
= No percussion
WARNING!
THE FOLLOWING STEPS REQUIRE DRILLING INTO
THE WALL.
When drilling into the wall, exercise care to avoid any
electrical wiring or plumbing that may be located behind
the wall. Damaged electrical wiring can cause electrical
shock and/or fire. Since older homes do not always fall
in line with current housing codes and requirements,
know where internal wall wiring is located so that no
wires will interfere with your installation.
PROPER INSTALLATION IS EXTREMELY IMPORTANT.
IF IN DOUBT, INSTALLATION SHOULD BE DONE BY A
QUALIFIED PROFESSIONAL.
1
2
3
4
5
6
7
8
