Brightlink 16x16 Manual

18gbps 4k@60hz hdmi 2.0 hdbaset matrix modular version
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

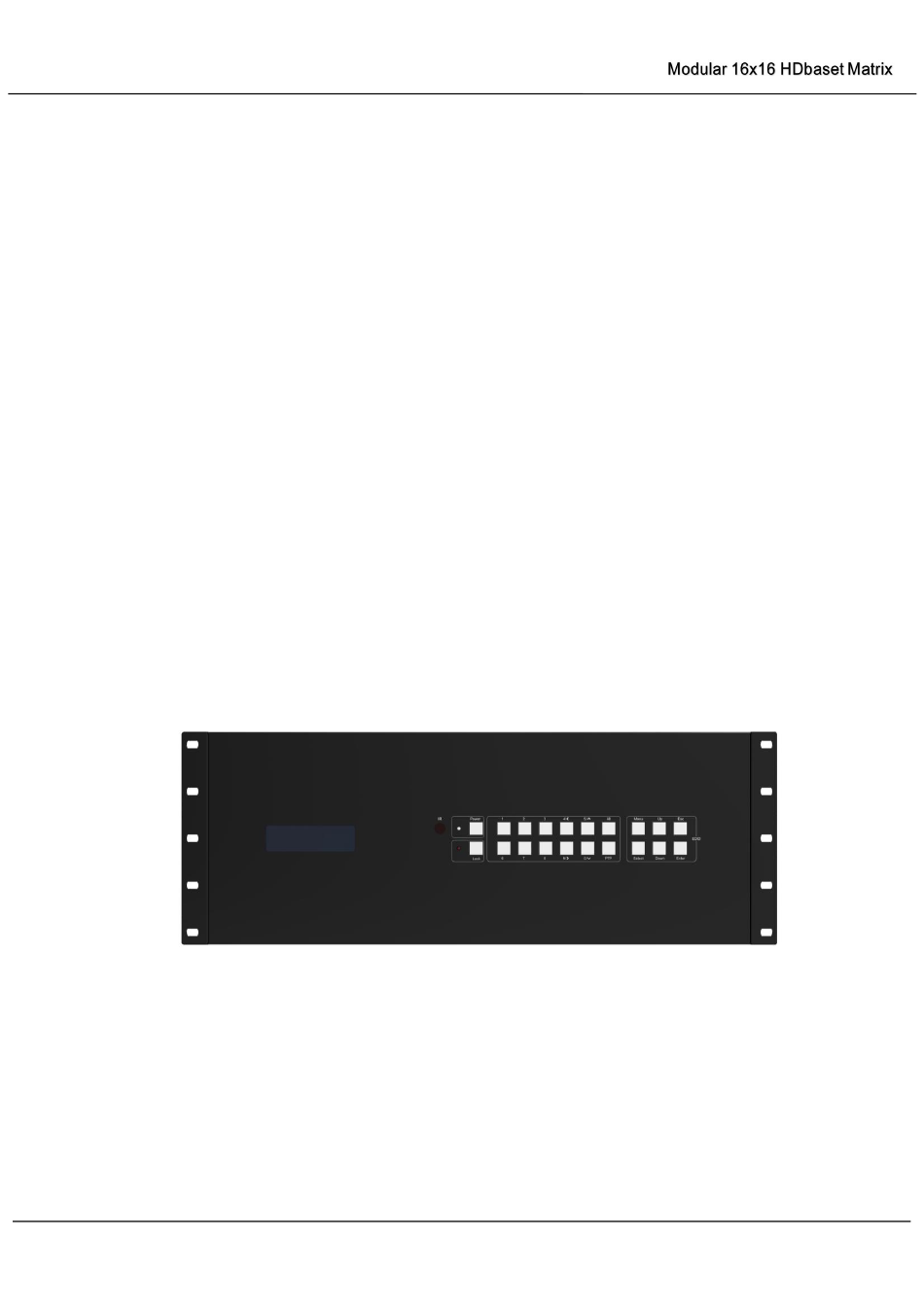

18Gbps 4K@60hz HDMI 2.0
HDbaset matrix modular version
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 16x16 and is the answer not in the manual?

Questions and answers

Related Manuals for Brightlink 16x16

Summary of Contents for Brightlink 16x16

  • Page 1 18Gbps 4K@60hz HDMI 2.0 HDbaset matrix modular version...
  • Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Table Of Contents

    Table of Contents Introduction........................4 Features........................4 Panel Descriptions...................... 5 Front Panel......................5 Back Panel......................7 Remote Control Description..................8 Application Diagram....................9 Specifications......................10 Package Contents..................... 10 RS-232 Pin Assignment................... 11 RS232 and Telnet Commands................11 GUI Control.........................14 Web GUI....................... 26 Maintenance........................

  • Page 4: Introduction

    Introduction The 16x16 HDbaset matrix is a Pro Matrix Switcher featured with 16x HDMI Inputs and 16x HDMI Outputs & 16x HDBaseT Outputs. This unit supports 4K/UHD video @ 60Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18Gbps. It is also compatible with high dynamic range (HDR10) formats and all 3D formats.

  • Page 5: Panel Descriptions

    Panel Descriptions Front Panel LCD Display -- Show the status of input-output selection, EDID info and so on. IR Receiver Window -- Receive the IR from the remote control of matrix. Power LED Indicator -- Indicate the status of the power for the matrix. Power Button -- Press to power on/off the matrix.
  • Page 6 7.1CH 4K2K NONE D1024 D1024=DVI 1024 x 768 D1080 D1080=DVI 1920 x 1080 D1200 D1200=DVI 1920 x 1200 OUT1 OUT1=Copy OUTPUT1 EDID to INPUTx OUT2 ALL=Set EDID to ALL INPUTs OUT2=Copy OUTPUT2 EDID to INPUTx OUT3 OUT3=Copy OUTPUT3 EDID to INPUTx OUT4 OUT4=Copy OUTPUT4 EDID to INPUTx OUT5...

  • Page 7: Back Panel

    Back Panel 1. RJ45 – TCP control 1. Master RS232 Port –DB9, female 2. L/R Input 1 to 16 – 3.5mm stereo earphone jack, to embed 2CH audio into the corresponding HDMI Inputs 3. RS232 Port 1 to 16 -- 3-pin phoenix terminal connector 4.

  • Page 8: Remote Control Description

    Remote Control Description Output and Input select A. OUTPUT-X select INPUT-Y: 1. Press OUTPUT-X (X means 1 to 8 of outputs)  Press INPUT-Y ( Y means 1 to 8 of inputs ) 2. Press OUTPUT-X (X means 1 to 8 of outputs) ...

  • Page 9: Application Diagram

    Application Diagram...

  • Page 10: Specifications

    Specifications Bandwidth 18Gbps Video Input Connectors 16x HDMI Type A, 19-pin, female Audio Input Connectors 16x 3.5mm stereo earphone jack (L/R) Video Output Connectors 16x HDMI Type A, 19-pin, female 16x HDBaseT RJ45 connector Audio Output Connectors 16x 3.5mm stereo earphone jack (L/R), 16x RCA (SPDIF) TCP/IP Control 1x RJ45 connector, female...

  • Page 11: Rs-232 Pin Assignment

    RS-232 Pin Assignment 16x16 Matrix Remote Control Console Assignment Assignment Baud Rate: 57600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None NOTE: Use Straight Through DB9 Cable to connect the matrix with computer, DO NOT use Crossover Cable (Null Modem Cable).
  • Page 12 OUT xx ON/OFF Set OUTPUT:xx On Or Off OUT xx FR yy Set OUTPUT:xx From INPUT:yy OUT xx EH/ET Set OUTPUT:xx Use HDMI/HDBT EDID xx=[00]: All OUTPUT Port, [01...08]: OUTPUT Port yy=[01...08]: INPUT Port POH TX yy ON/OFF Set OUTPUT:yy POH On Or Off yy=[00]: All OUTPUT Port, [01...08]: OUTPUT Port VLC TX yy ON/OFF Set OUTPUT:yy Valens Long Cable Mode On Or Off...
  • Page 13 zz=19: HDMI 4K@60Hz 4:2:0, Audio 5.1CH DTS/DOLBY zz=20: HDMI 4K@60Hz 4:2:0, Audio 7.1CH DTS/DOLBY/HD zz=21: HDMI 4K@60Hz 4:4:4, Audio 2CH PCM zz=22: HDMI 4K@60Hz 4:4:4, Audio 5.1CH DTS/DOLBY zz=23: HDMI 4K@60Hz 4:4:4, Audio 7.1CH DTS/DOLBY/HD MXIR xx FR yy Remote RX:xx IR Output From Local IR in:yy xx=[00]: All Remote Rx IR Output, [01...08]: Remote Rx IR Output yy=[01...08] Local IR In...

  • Page 14: Gui Control

    Microsoft Windows Operation System Installation 16x16 HDMI Matrix controller is a green software. You just need to copy “16x16 HDMI Matrix Controller vx.x.exe” to the PC which is used to control the Matrix by RS232 COM or TCP to complete installation.
  • Page 15 “General” page Select control mode: RS232 COM mode (Auto COM ports detected) or TCP mode List detected COM ports List all Matrix devices after search operation Click to search all Matrix devices that connected in same subnet Click to configuration the selected Matrix’s TCP control configurations Click to connect or disconnect PC and Matrix ( Connection will be established automatically before control commands sending ) Click to refresh device status: include device information displayed in ⑨...
  • Page 16 Set TCP control configuration Click Config button to show TCP configuration window. Set tag to identify Matrix device Set IP mode: Subnet should support DHCP protocol when set Auto IP mode, then Matrix device will obtain IP automatically. Otherwise, set Static IP mode and designate a useable IP for Matrix device Set IP address, not editable when Auto IP mode selected.
  • Page 17 Input port tags Click to edit Input port tags Output port tags Click to edit Output port tags NOTE: 1) Edit boxes are read only, click “Edit” button to pop up window to edit the tags. 2) One set of Input/output port tags can be set for Matrix device when COM control mode selected.
  • Page 18 Edit Output port tags After action of ④, edit form will pop-up as below: Define tags for respective Output port, then displays connect the Output ports can be easily remembered. Click buttons with “×” caption to delete tag which is no use any more, if tag is still used by any other Output port, delete action will be discarded.
  • Page 19 Display Output from Input with tag information when mouse moves over ② buttons Pre-Setting items: Default is Port to Port Click to edit selected pre-setting item Set selected pre-setting item to Matrix NOTE: When Change to this “Setting” page, software will try to refresh source selection status of Output port.
  • Page 20 Pop-up Menu When mouse moves over ② setting buttons, and click mouse right button, menu will pop up like as: All Outputs: All Outputs from same Input “1 Output” to “7 Outputs”: Set current Output (where mouse right clicked) and the next x-1 ( x range is from 1 to 7, set total x Outputs at the same time ) Output(s) from same Input Port to Port: Output1 from Input1, Output2 from Input2, Output3 from Input3, etc.
  • Page 21 Edit selected pre-setting item After action of ⑥, edit form will pop-up as below: Pre-Setting name Set all Output ports from same Input Select Input for respective Output “EDID control” page Set EDID mode for selected Input port or All Input ports, click “Set” button to complete action.
  • Page 22 NOTE: When set User1/User2 EDID mode, should Download EDID content to User1 Memory/User2 Memory first. User1/User2 default EDID content is 1080p, Stereo Audio 2.0. Copy EDID from Output port to selected Input port or All Input ports, click “Copy” button to complete action.
  • Page 23 “FW upgrade” page Click to open firmware file (file extension is “.fw”). Firmware upgrade progress bar Click the button to upgrade firmware. Firmware upgrading messages display Click to clear the messages displayed in the memo box. NOTE: If failure occurs during upgrading firmware process, the following steps SHOULD be done sequentially to establish next upgrading procedure: Power down the Matrix Close the 8x8 HDMI Matrix Controller...
  • Page 24 Set Video Input Source Each input can be from HDMI or HDBaseT chosen via the pop-up menu under each Input port. 1) Choose HDMI, then the HDMI input will be enabled; the HDBT input will be disabled. 2) Choose HDBT, then the HDBT input will be enabled; the HDMI input will be disabled. 3) Choose Auto, the input will auto-scan the inputs between HDMI and HDBT.
  • Page 25 HDBT receiver. For example: Local IR in 1 to IR output of remote HDBT receiver 1 and local IR in 8 to IR output of remote HDBT receiver 8. Global All IR In Global All IR In can be set flexibly to any specific IR output or all of the IR outputs. Global All IR Out Global All IR Out can be set flexibly from any specific IR output or all of the IR inputs.

  • Page 26: Web Gui

    Global RS232 can be flexibly set to any of the RS232 port, whether remote receiver side or the local side. Web GUI How to enter Web GUI Type in IP address "192.168.0.200" in web browser to enter the Web GUI. First login will enter the default Guest account, in which you can only check limited system info and perform simple source switching.
  • Page 27 Zone Page Same as Guest account interface Status Page System info and Web UI info including Model Number, Firmware Version, Power Status, IP status, IP address, Gateway, Subnet Mask, MAC Address and UI Version. You can turn ON/OFF the matrix thru click the power icon on the bottom.
  • Page 28 Config Page You can set DHCP, IP Address, Gateway and Subnet Mask, you can aslo custom name for the Inputs (such as Sky STB, SONY DVD, SAMSUNG DVD, etc) and Outputs (such Room 1, Room 2, Room 3, etc.) Output Page...
  • Page 29 You can select Input for each Output, enable/disable each Ouput and set priority for HDMI/HDBaseT. This page also shows the connect status for HDMI/HDBaseT ports. Input Page You can set the Input Source priority (Force HDMI, Force HDBT, Auto HDMI or Auto HDBT), check the current input source and check the HDMI/HDBT connect status.
  • Page 30 EDID Page You can select build-in EDID patterns for each input, and select EDID priority for HDMI/HDBT.
  • Page 31 Audio Page You can select audio source for each output, set audio delay values, and control audio volume. IR&RS232 Page You can set routing path for IR & RS232.
  • Page 32 Users Page You can creat, edit and remove account. PS: Admin account can't be deleted. Custom Account Example for create Custom Account – Gordon_Gong...
