O
RX G
RANGE
P
:
RODUCT OVERVIEW
D
ESCRIPTION AND FEATURES

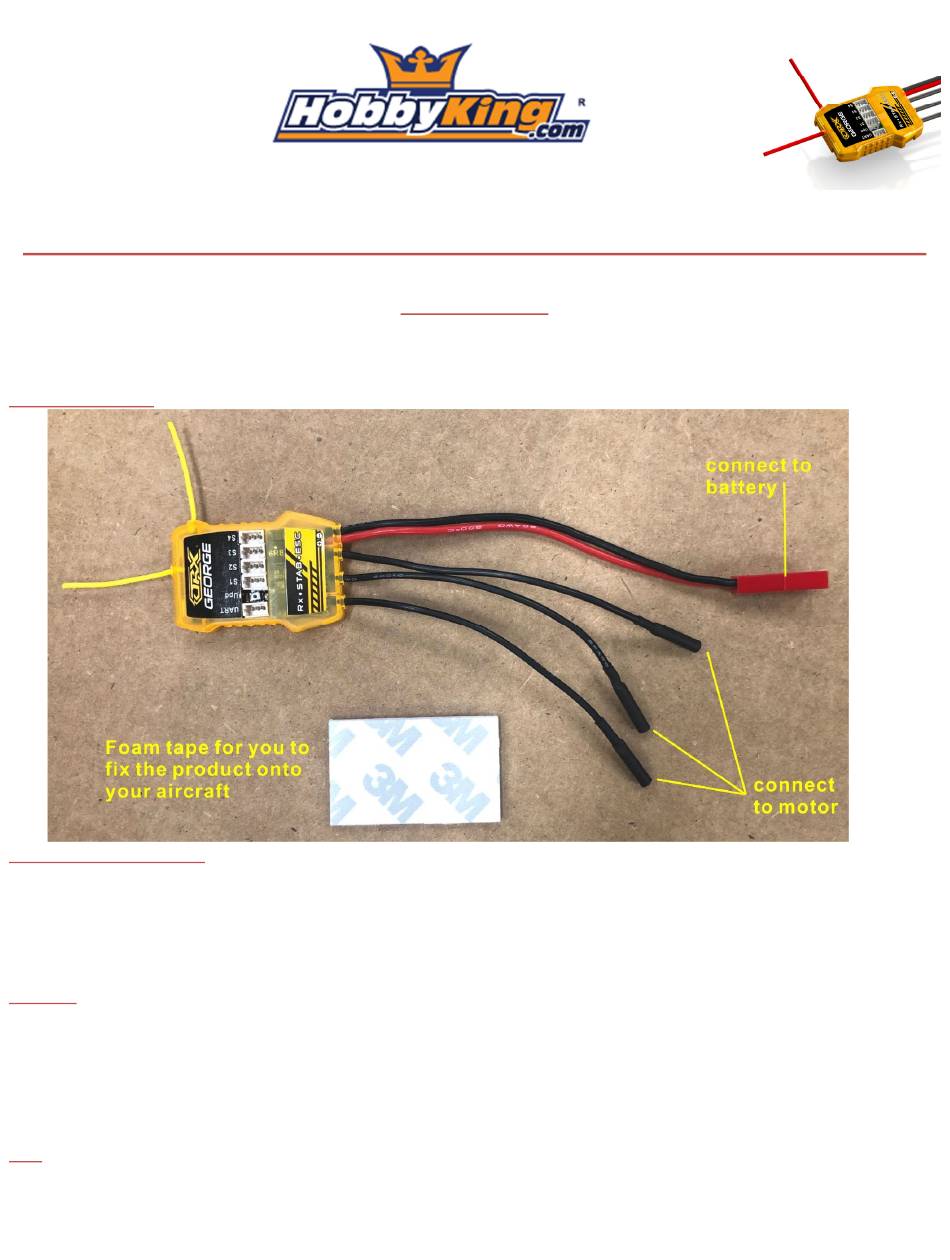

The device combines 4 devices in one, compact format
1. 12 channel DSM2/DSMx compatible receiver
2. 3 axes stabilizer working with various planes configurations and having 3 different types of stabilizing behavior.
3. 6A continuous 10 peak brushless ESC
4. 1.5A 5V switching BEC for servos.
5. Working voltage is 7.4~12.6VDC (2s or 3s batteries)
R
:
ECEIVER
• Diversity antennas for perfect reception and telemetry of micro models (500m LOS)
• Integrated telemetry for real time readings:
- Battery voltage
- Receiver voltage
- Lost packets (signal quality)
Range: 500m LOS (Line Of Site) or more**
Telemetry range – up to 200m. LOS or more**
ESC:
ESC- 6A continuous, 10A peak integrated ESC for BLDC motor. It is already calibrated to work with stabilizer in airplane mode.
4 S
EORGE
ERVO
FCC ID: 2AOCYGEORGE
:
R
ECEIVER WITH
U
SER MANUAL
Page 1 of 9
S
TABILIZER AND
ESC
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HobbyKing OrangeRX George 4
Summary of Contents for HobbyKing OrangeRX George 4
- Page 1 RX G RANGE EORGE ERVO ECEIVER WITH TABILIZER AND SER MANUAL FCC ID: 2AOCYGEORGE RODUCT OVERVIEW ESCRIPTION AND FEATURES The device combines 4 devices in one, compact format 1. 12 channel DSM2/DSMx compatible receiver 2. 3 axes stabilizer working with various planes configurations and having 3 different types of stabilizing behavior. 3.
- Page 2 IMENSIONS 39x28x8 mm EIGHT 9.3 grams (including wires and connectors) ONNECTIONS The receiver has following connections: - Battery connector – connect to your power battery using JST connector. - 4 1.5mm Molex connectors for servos S1 – Ailerons S2 – Elevator S3 –...
-
Page 3: Firmware Upgrades
The stabilizer can be connected to the PC using USB-UART adapter (sold separately) Settings for UART are 115200, N, 1. A PC software can be downloaded from “Files” section from the Hobbyking Web site. Using PC software is similar to most of the flight control PC apps and self-explanatory. - Page 4 ETTINGS VIA ROGRAM SOLD SEPARATELY 1. Page 1 of PID settings. Click the roller wheel to enter the menu You can chose the axis to change – ROLL, PITCH, YAW . Step on the axis whose parameters you want to edit. Click Enter again. Now you can navigate between P, I and D parameters. Click enter again. The edited parameter will start blinking.
- Page 5 2 Page 2 of PID settings. Beginner sens – sensitivity for Beginner mode. If sensitivity is too high the model can start oscillating. Lower sensitivity in this case. Advance sens – sensitivity for Advanced mode. If sensitivity is too high the model can start oscillating. Lower sensitivity in this case.
- Page 6 4 Page 4 Servo output settings Press Enter on dial to enter the menu. If you need to change the servo you want to set, press Enter again and the cursor will highlight servo name (Ail, Rudd,etc). Press Enter again to exit from the servo selection submenu. Servo –...
- Page 7 6 Page 6.Model type and throttle settings. Mdl type – you can chose appropriate type of your model for servo mixing. Available options: "F-Wing", "Classic", "V-Tail" Min thr – Minimum throttle for ESC when the throttle stick is low Max thr – Maximum throttle for ESC when the throttle stick is high Min command –...
- Page 8 8. Page 8. Channels’ inputs Program Card can act as Transmitter when it works with the stabilizer. In this mode Program Card outputs channel values to the receiver imitating transmitter. In this mode you can change these values as if you would do this using. You can set values on the each servo output.
- Page 9 installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna.
