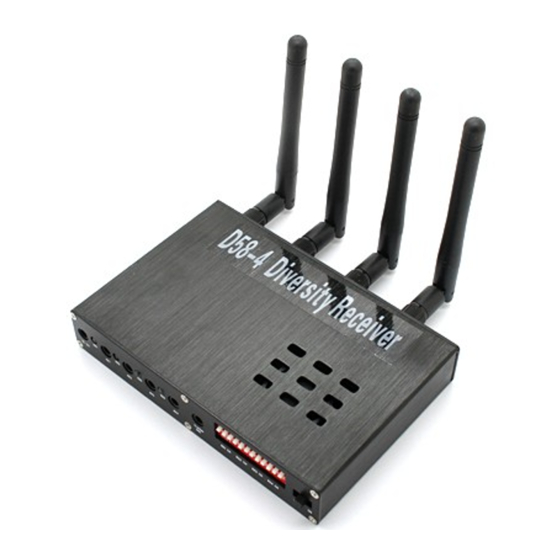

D58-4 Diversity Receiver
Specs:
Receiver Frequency:
CH1: 5705MHz CH2: 5685MHz CH3: 5665MHz CH4: 5645MHz
CH5: 5885MHz CH6: 5905MHz CH7: 5925MHz CH8: 5945MHz
Video Output: 75 /1Vp-p
Audio Output: 10K /500mVp-p
TV System: PAL/NTSC/SECAM
Input Voltage: 12V/500mA
Features:
Four Receiver for best reception
Automatic Antenna Switching
Triple, buffered AV outputs
Can receive 4 different channels at the same time
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Light weight,durable,anodized aluminum case
Weight:200g
Size:122mmx96mmx21mm(D58-4 diversity receiver only)

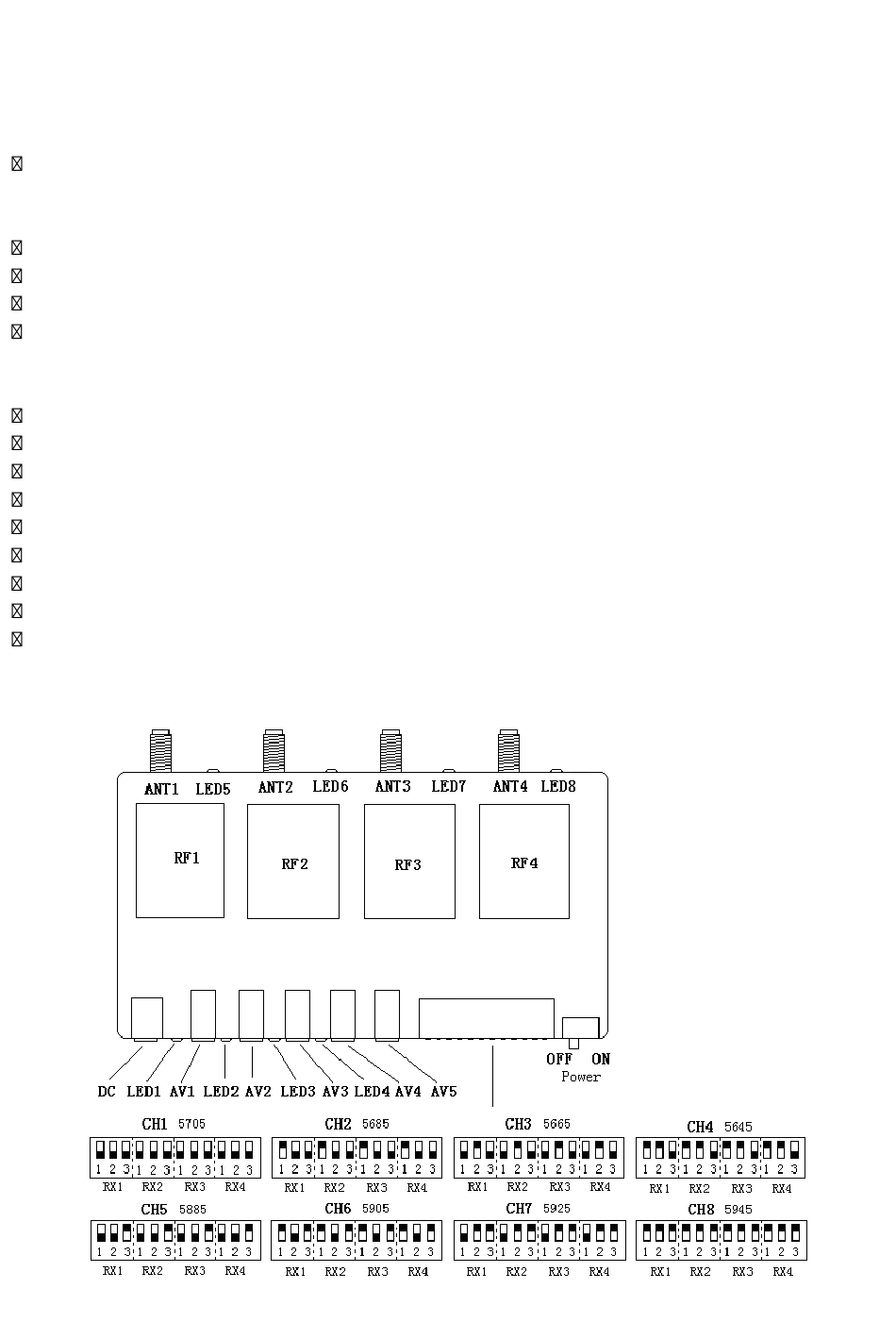

Operation and Figures
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HobbyKing D58-4
Summary of Contents for HobbyKing D58-4
- Page 1 Four Receiver for best reception Automatic Antenna Switching Triple, buffered AV outputs Can receive 4 different channels at the same time Not affect by 2.4GHz R/C Radios AV Receiver with Diversity inputs Light weight,durable,anodized aluminum case Weight:200g Size:122mmx96mmx21mm(D58-4 diversity receiver only) Operation and Figures...
- Page 2 To receive 4 different channels at the same time: ① Connect the antennas then connect the AV cables to: AV1,AV2,AV3,AV4, and then connect the 12V DC power adapter ② Switch on the power button，LED1,LED2,LED3,LED4 are on means the 4Ch RF are working.
