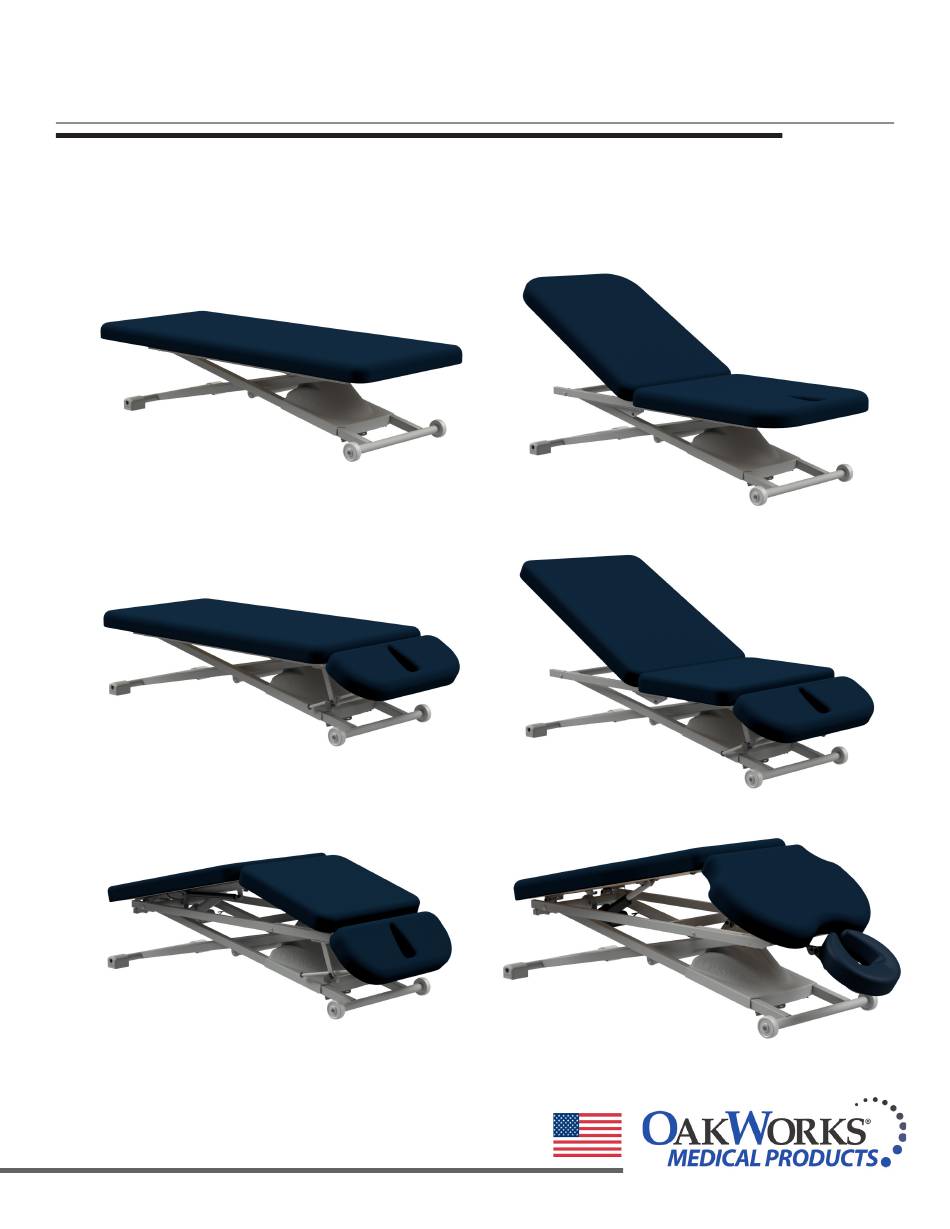

- Page 1 USER MANUAL OAKWORKS ® PT Tables PT100 PT150 PT250 PT300 PT400 PT400M made in the USA with US & imported parts www.oakworksmed.com · 717.235.6807...
- Page 2 © Copyright 2021 OAKWORKS , Inc. ® Notice The information contained within this document is subject to change without notice and should not be construed as a commitment by OAKWORKS , Inc. ® OAKWORKS , Inc. encourages ® requests for technical specifica- Printed in U.S.A.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Use Description ..................... 1 Important Safety Instructions Symbol Identification ................... 1 Safety Instructions ................... 1-2 Product Description & Photo PT100 ......................... 3 PT150 ......................... 4 PT250 ......................... 5 PT300 ......................... 6 PT400 ......................... 7 PT400M ......................8 Orthopedic Hi-Lo Casting Table ................ -
Page 4: Product Use Description
PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS P R O D U C T U S E D E S C R I P T I O N The Oakworks PT Tables are used to support the patient during examinations and procedures. They are intended to be operated by a healthcare professional in a medical environment. - Page 5 IMPORTANT SAFETY INSTRUCTIONS Proper operation of this equipment is very important for the safety of the operator, patient, and any other individuals in the area of this equipment. Directions for use of this equipment are described in this manual. The operator should read these sections carefully. Weight Limit: (patient and accessories) 550 lbs.
-
Page 6: Product Description & Photo
PRODUCT DESCRIPTION PT100 Optional Dual Locking Casters STANDARD SPECIFICATIONS OPTIONS Height Range Powered 16”-34” (40-86 cm.) Dual Locking Casters Foot Control Height Motion 2 Button Hand Control (Height Motion) Table Voltage Options 120V/60Hz or 230V/50Hz Second Foot Control Table Capacity 550 lbs. -
Page 7: Pt150
PRODUCT DESCRIPTION PT150 Optional Dual Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 16”-34” (40-86 cm.) Height Range Dual Locking Casters Motion 2 Manual 0º - 90º Fowler Backrest 2 Button Hand Control (Height Motion) Foot Control Height Motion Second Foot Control ACCESSORIES Table Voltage Options 120V/60Hz or 230V/50Hz... -
Page 8: Pt250
PRODUCT DESCRIPTION PT250 Optional Dual Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 16”-34” (40-86 cm.) Height Range Dual Locking Casters Motion 2 Manual 40˚ to -90˚ Articulating Head Rest 2 Button Hand Control (Height Motion) Foot Control Height Motion Second Foot Control Table Voltage Options 120V/60Hz or 230V/50Hz... -
Page 9: Pt300
PRODUCT DESCRIPTION PT300 Optional Dual Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 16”-34” (40-86 cm.) Height Range Dual Locking Casters Motion 2 Manual 0º - 90º Fowler Backrest 2 Button Hand Control (Height Motion) Motion 3 Manual 40˚ to -90˚ Articulating Head Rest Second Foot Control ACCESSORIES Foot Control... -
Page 10: Pt400
PRODUCT DESCRIPTION PT400 Optional Dual Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 17”-34” (43-86 cm.) Height Range Dual Locking Casters 2 Button Hand Control (Height Motion) Motion 2 Powered 0˚ to 45˚ Center Break Second Foot Control Motion 3 Manual 0º... -
Page 11: Pt400M
PRODUCT DESCRIPTION PT400M 29.5” (75 cm.) 11” (29 cm.) 21.5” cm.) 77” 22” (56 cm.) (196 cm.) 44.5” (113 cm.) Optional Dual Locking Casters Shown with accessories; Rotating Arm Rests & Extension Pad STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 17”-34” (43-86 cm.) Height Range Dual Locking Casters Motion 2 Powered 0˚... -
Page 12: Orthopedic Hi-Lo Casting Table
PRODUCT DESCRIPTION Orthopedic Hi-Lo Casting Table Optional Dual Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 17”-35” (43-89 cm.) Height Range Dual Locking Casters Motion 2 Manual 0º - 90º Fowler Backrest 2 Button Hand Control (Height Motion) Motion 3 Manual 10˚... -
Page 13: Installation
INSTALLATION The Tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (See Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible. -
Page 14: Directions For Use
DIRECTIONS FOR USE C O N T R O L O P E R A T I O N S - A L L T A B L E S (E X C E P T P T400 & P T400M) CAUTION Be sure the self-locking molded rubber feet are flat side down to ensure safety and stability. -
Page 15: Pt400 & Pt400M
DIRECTIONS FOR USE F O O T C O N T R O L O P E R A T I O N S - P T400 & P T400M T A B L E S O N L Y CAUTION DO NOT sit or stand on the articulating head rest section. - Page 16 DIRECTIONS FOR USE H A N D C O N T R O L O P E R A T I O N S - P T400 & P T400M T A B L E S O N L Y CAUTION DO NOT sit or stand on the articulating head rest section.
-
Page 17: Adjusting The Back Rest
DIRECTIONS FOR USE A D J U S T I N G T H E B A C K R E S T S E C T I O N CAUTION Do not sit on the Backrest section. Back Rest Control TO RAISE THE BACKREST: TO LOWER THE BACKREST:... -
Page 18: Articulating Head Rest Use
DIRECTIONS FOR USE A R T I C U L A T I N G H E A D R E S T U S E CAUTION Do not sit or stand on the articulating head rest section. Do not use Head Rest Section in assisting the client on or off the table. -
Page 19: Pt400M - Rotating Arm Rests Use
DIRECTIONS FOR USE P T400M - R O T A T I N G A R M R E S T S U S E Be sure to install the arm rest on the Screw the Arm Rests into the pre- Adjust the Arm Rests as needed for correct side of the table. -
Page 20: Moving The Table
DIRECTIONS FOR USE M O V I N G T H E T A B L E CAUTION Before moving any of the Tables, disconnect the power cord from the power outlet. The table weighs as much as 200 lbs. (91 kg.) Use extreme caution when lifting the table to move it. Two people are required to move the table safely. -
Page 21: Quicklock Face Rest Use
DIRECTIONS FOR USE Q U I C K L O C K F A C E R E S T CAUTION Do not put excessive weight or pressure on the Quicklock Face Rest. Do not extend the dowels of the Quicklock Face Rest 3” (7.6 cm.) from the Fowler (Backrest) section. Double articulating action provides nearly limitless positioning options with the QuickLock Face ™... -
Page 22: Cleaning & Disinfection
CLEANING & DISINFECTION R E C O M M E N D E D C L E A N E R S/D I S I N F E C T A N T S DANGER To reduce the risk of electric shock: - Always unplug this furnishing from the electrical outlet before cleaning. -
Page 23: Inspections & Maintenance
INSPECTIONS / WARRANTY I N S P E C T I O N S RECOMMENDED REGULAR INSPECTIONS (monthly or local standard) • Check for damage to the power, hand control(s) and foot control(s) on all cables. • Visually inspect components for obvious damage that could cause problems during operation. RECOMMENDED PERIODIC INSPECTIONS (yearly or local standard) •... -
Page 24: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER P T S E R I E S PT100, 150, & 400M: The model number and serial number are located on the underside of the seat section. PT250, 300, 400, & Ortho Casting Table: The model number and... -
Page 25: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Table Weights: 151-202 lbs. (68-92 kg.) Lifting Capacity 550 lbs. (250 kg.) ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20°... -
Page 26: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic emissions The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment - guidance The table uses RF energy only for its internal... -
Page 27: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level environment - guidance... - Page 28 SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level environment - guidance...
- Page 29 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 30 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 31 THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 32: Contact Information
USER MANUAL OAKWORKS ® PT Tables C O N T A C T I N F O R M A T I O N: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.oakworksmed.com 3034177 CONFORMS TO: ANSI/AAMI STD ES60601-1...
