Previous DeckLink Cards – Product Diagrams
94

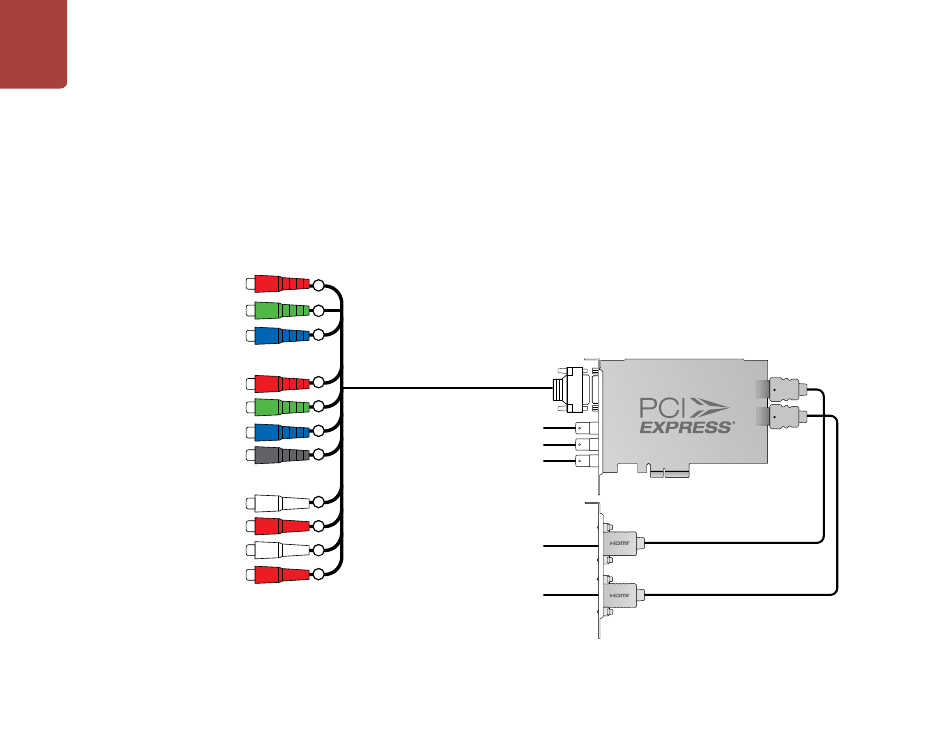

DeckLink HD Extreme 2 and Consumer Breakout Cable

The cable numbering is the same on both the Professional and Consumer Breakout Cables so it's
easy to use either cable. For example, component video output uses cables 3, 4 and 5 on both
breakout cables.
3. R-Y Out
4. Y Out
5. B-Y Out
7. R-Y In
8. Y In
9. B-Y In
10. AES/EBU Out
12. Audio Out Left
13. Audio Out Right
14. Audio In Left
15. Audio In Right
3
4
5
DeckLink HD Extreme
2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3
Consumer Breakout Cable
7
8
2K/HD/SD-SDI Monitoring Output
9
2K/HD/SD-SDI Output (to deck)
10
2K/HD/SD-SDI Input (from deck)
12
13
HDMI Output
14
15
HDMI Input
1 4 1 5
