Connection Diagrams
45

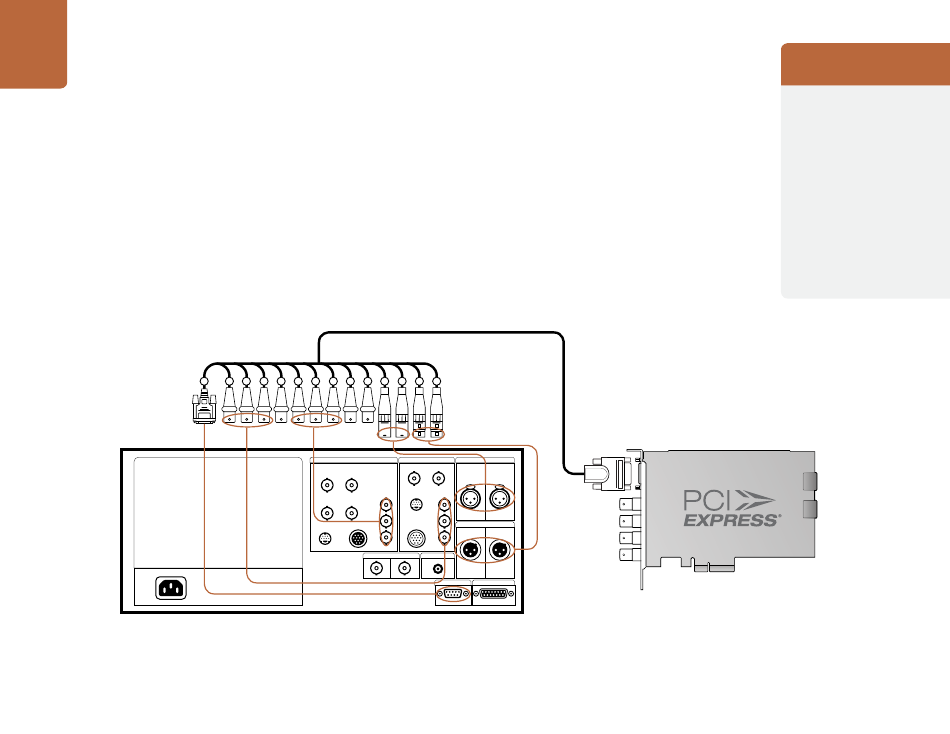

Connecting to a Betacam SP analog deck
This example shows DeckLink HD Extreme 3D+ connected to an analog deck for capture and
playback to the deck. The HDMI and SDI outputs can be used for local monitoring.
2
DeckLink HD Extreme 3
Breakout Cable
3 4 5 6 7 8 9 10 11 12 13
VIDEO INPUT
REF. VIDEO
COMPONENT 2
VIDEO
COMPONENT 1 COMPONENT 1
S VIDEO
TIME CODE
IN OUT
14 15
VIDEO OUTPUT AUDIO INPUT
VIDEO CH-1 CH-2
COMPONENT 2
S VIDEO
AUDIO OUTPUT
CH-1 CH-2
MONITOR
AUDIO
REMOTE TBC REMOTE
Cards which can be used in
this workflow...
DeckLink HD Extreme 3D+
DeckLink Studio 2
Previous DeckLink cards
DeckLink Extreme
DeckLink Extreme PCIe
DeckLink HD Extreme
DeckLink HD Extreme 2
DeckLink HD Extreme 3
DeckLink HD Extreme 3D
DeckLink HD Studio
DeckLink SP
DeckLink SP PCIe
DeckLink Studio
