Richmond GTR197 User Manual

Remote External
Receiver Users
Manual GTR197

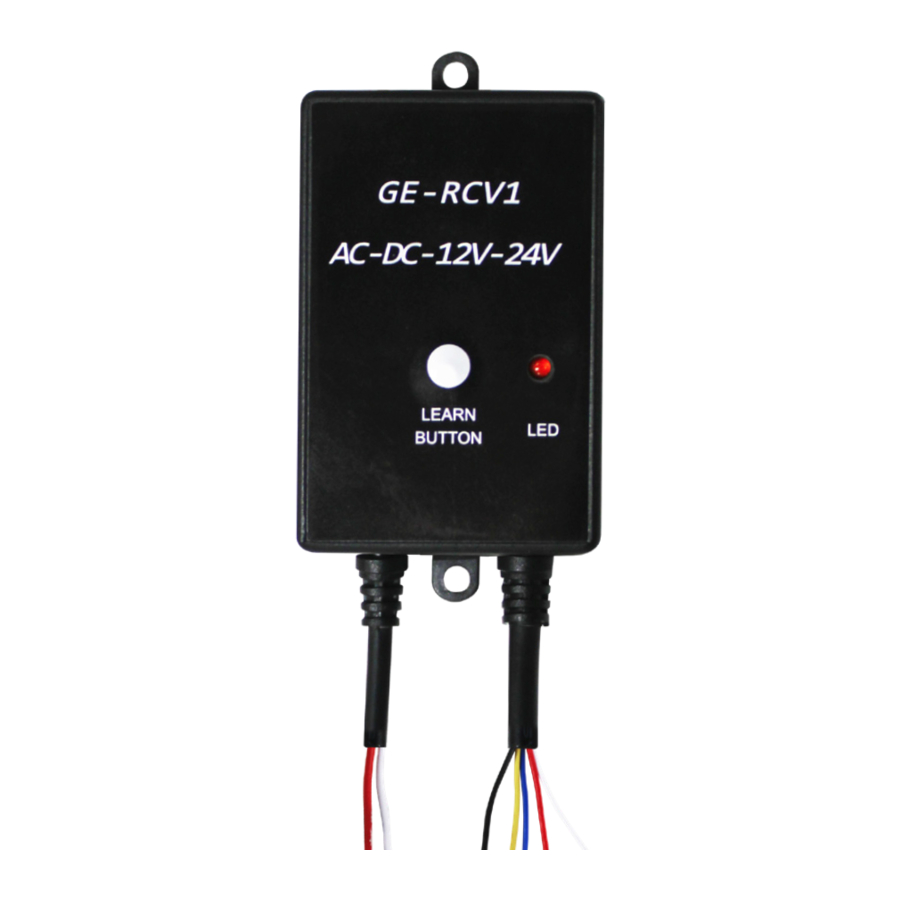

The GTR197 is an optional accessory
that allows you to use the Richmond
swing or sliding gate remotes on another
manufacturers garage or gate motor. This
allows you to operate multiple motors with
a single remote and can also be fitted to
replace remotes that are no longer available.
• It also allows up to 250 remotes to be paired
to your motor via the receiver
• This accessory is suitable for all Richmond
gate motors as well as a long list of other
manufacturers gate and garage motors.

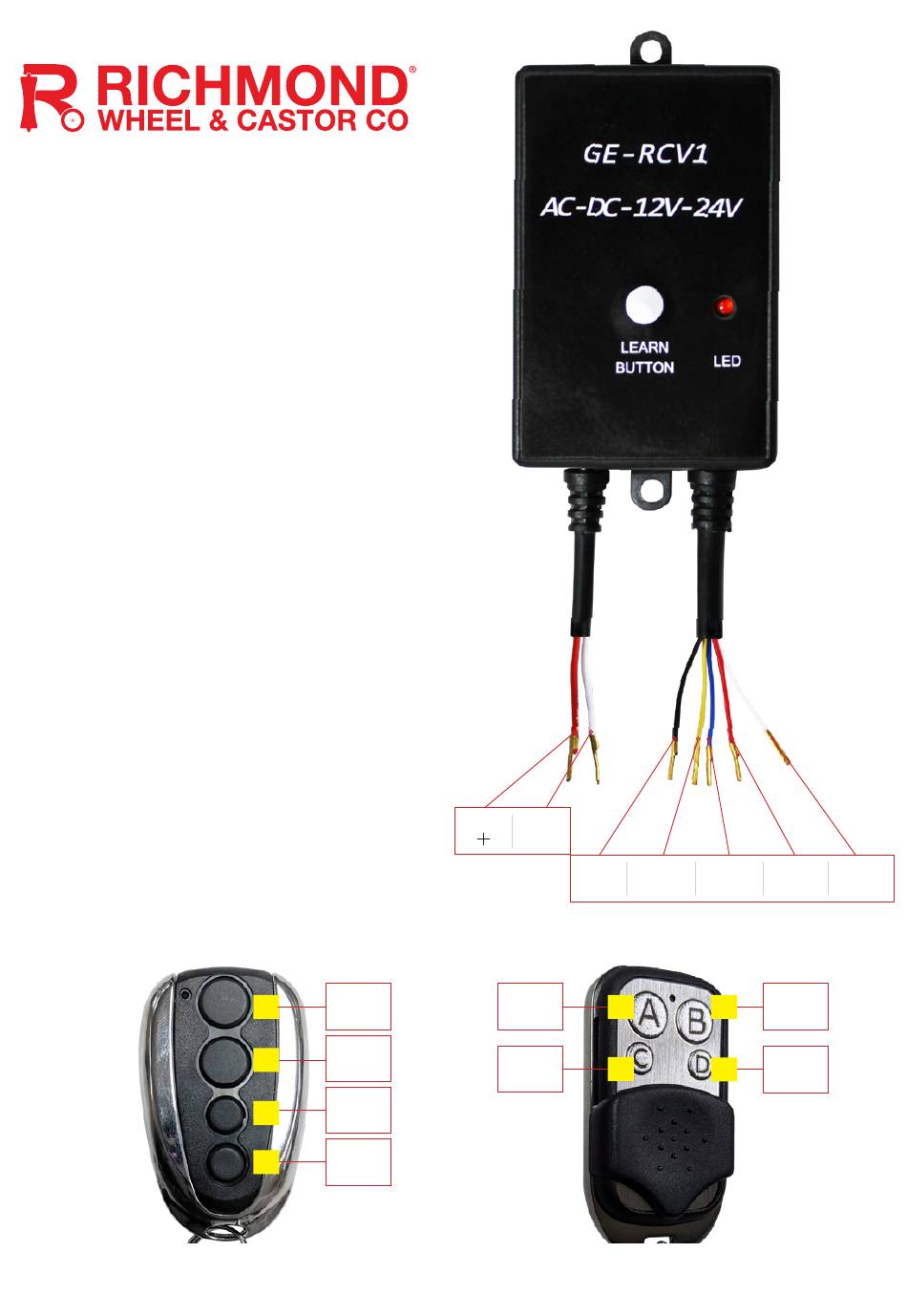

• See following pages for a fitment guide,
along with a wiring example.
If you need assistance finding your
connection points, or are unsure if your
motor is suitable, please contact the
team at Richmond Wheel & Castor.
03 9070 5713 gatesupport.richmondau.com
GTR179
Remote to suit
GTR064, GTR061,
GTR156, GTR207,
and GTR212 sliding
gate motors
*Button 4 not available
if the remote is also
paired to a Richmond
sliding gate motor.
Pedestrian mode is
operated from button 4
GTR197 Remote External Receiver Manual | Rev 03
Button 1
1
Channel 1
Button 2
2
Channel 2
Button 3
3
Channel 3
Button 4
4
Channel 4
Red White
GRN
Black
12/24V AC DC
COM
Power
Button A
A
Channel 1
Button C
C
Channel 3
GTR054
Remote to suit
GTR099, GTR058,
GTR062, and
GTR078 swing
gate motors
Yellow Blue Red
Channel 2 Channel 4 Channel 3
Button B
B
Channel 2
Button D
D
Channel 4
White
Channel 1
1
