Z-TECH ™
FAN
INSTALLATION AND TECHNICAL OPERATIONS GUIDE
GO FAN YOURSELF, INC. | 1032 NATIONAL PARKWAY | SCHAUMBURG, IL 60173 | www.gofanyourself.com | 1-844-GOFANME (463-2663) OR 1-847-648-4920
®
GO FAN YOURSELF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-TECH and is the answer not in the manual?

Questions and answers

Related Manuals for GO FAN YOURSELF Z-TECH

Summary of Contents for GO FAN YOURSELF Z-TECH

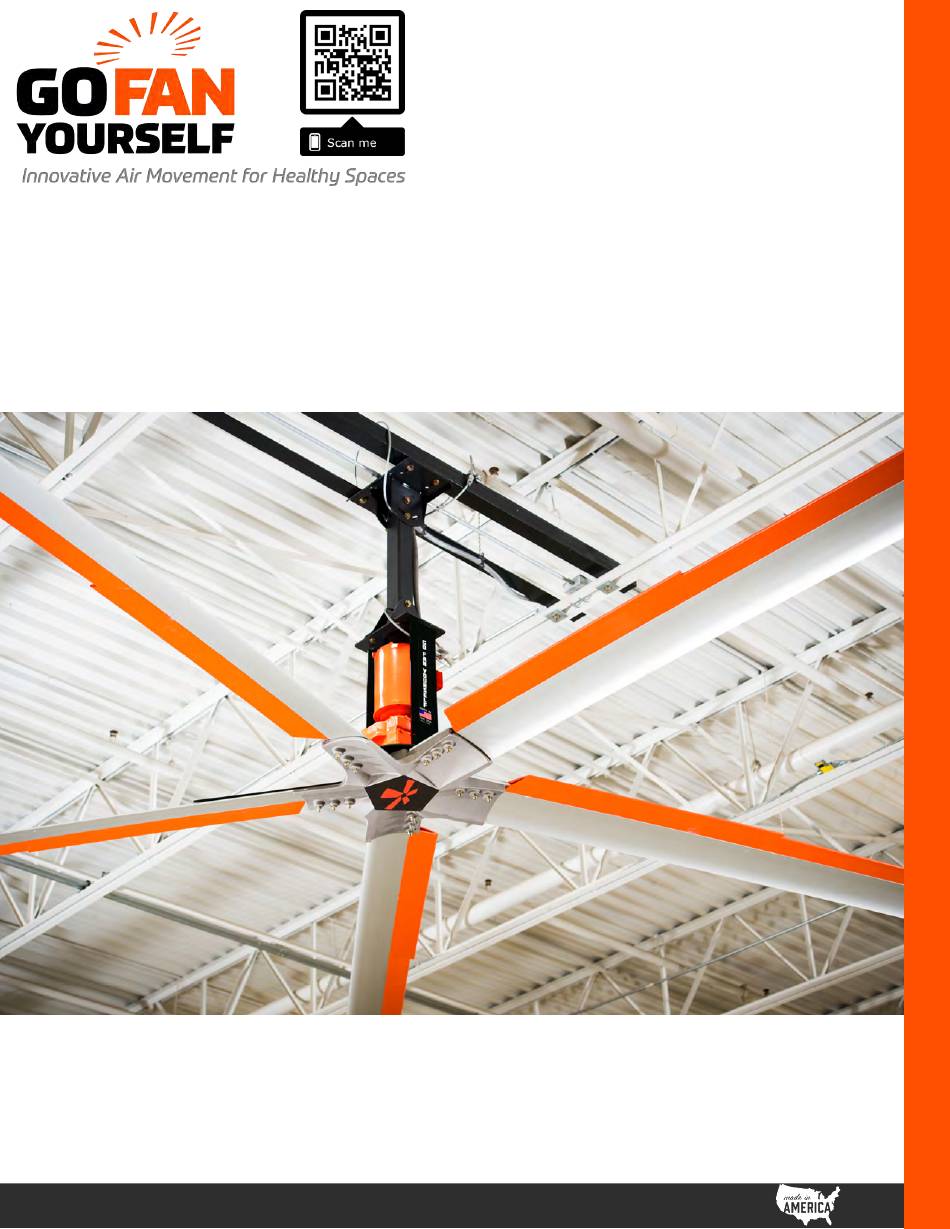

  • Page 1 Z-TECH ™ INSTALLATION AND TECHNICAL OPERATIONS GUIDE GO FAN YOURSELF, INC. | 1032 NATIONAL PARKWAY | SCHAUMBURG, IL 60173 | www.gofanyourself.com | 1-844-GOFANME (463-2663) OR 1-847-648-4920 ® GO FAN YOURSELF...
  • Page 2 ® Go Fan Yourself 1032 National Parkway Schaumburg, IL 60173 1-844-GOFANME (463-2663) INSTALLATION CHECK IN / CHECK OUT 1-847-648-4920 www.GoFanYourself.com Email completed form and required pictures to: drew@gofanyourself.com Company: Address: City/ State/Zip: Contact Name: Email: Phone: INSTALLATION CHECK IN Installation crew supervisor and facility manager are to complete checklist prior to entering the jobsite or unloading materials.
  • Page 3 Z-TECH ™ Installation and Technical Operations Itemized Checklist - Unpacking Your Go Fan Yourself Fan Motor Hub Assembly Box • There are 3 trays inside the Motor Hub Assembly Box (Trays Detailed On Following Pages) • The Blade Stabilizers are also inside the motor box.
  • Page 4 Z-TECH ™ Installation and Technical Operations Itemized Checklist - Motor Assembly Box Tray #1 - Top Tray Down Tube Upper Yoke 1FT or 2FT Down Tubes Only. Longer Weldment & Beam Down Tubes will Be Packaged Separately Clamp Plates Accessory Area...
  • Page 5 Z-TECH ™ Installation and Technical Operations Itemized Checklist - Motor Assembly Box Tray #2 - Middle Tray Z-TechSS Safety Manual & Optional Truss Mount Kit System 3/8" Quick Link Accessories (4) Square Washers ACS355 or ACS255 VFD Controller (ACS255 Shown) Hardware Packs ®...
  • Page 6 Z-TECH ™ Installation and Technical Operations Itemized Checklist - Motor Assembly Box Tray #3 - Bottom Tray Motor Hub Assembly Lower Yoke Plates Fan Mount Shims To Keep The Beam Clamp Plates Near Level When Clamping To Thicker I-Beams. Add Additional Shims If Required.
  • Page 7 Z-TECH ™ Installation and Technical Operations Itemized Checklist - ABB VFD Controllers, Blade Box, Blade Stabilizer Box ABB ACS355 Controller ABB ACS255 Controller 200-240VAC 3 Phase 200-240VAC 1 Phase 400-480VAC 3 Phase 100-120VAC 1 Phase Applications Applications Itemized Checklist - Fan Blade Box Blade Set (5 Blades) 8ft, 10ft, 12ft, 14ft, 16ft, 18ft, 20ft, 22ft, or 24ft ®...
  • Page 8 (2) 1/2"-13 x 5" Grade 8 Bolts (4) 1/2"-13 Grade 8 Nylock Nuts (4) 1/2" Grade 8 Flat Washers (2) 1/2"-13 Grade 8 Nylock Nuts GFY ABB Dodge Quantis Z-Tech Drive Motor Fan Frame Electrical Connection Box Z-Tech SS Lower Safety Straps...
