Installation and operating instructions

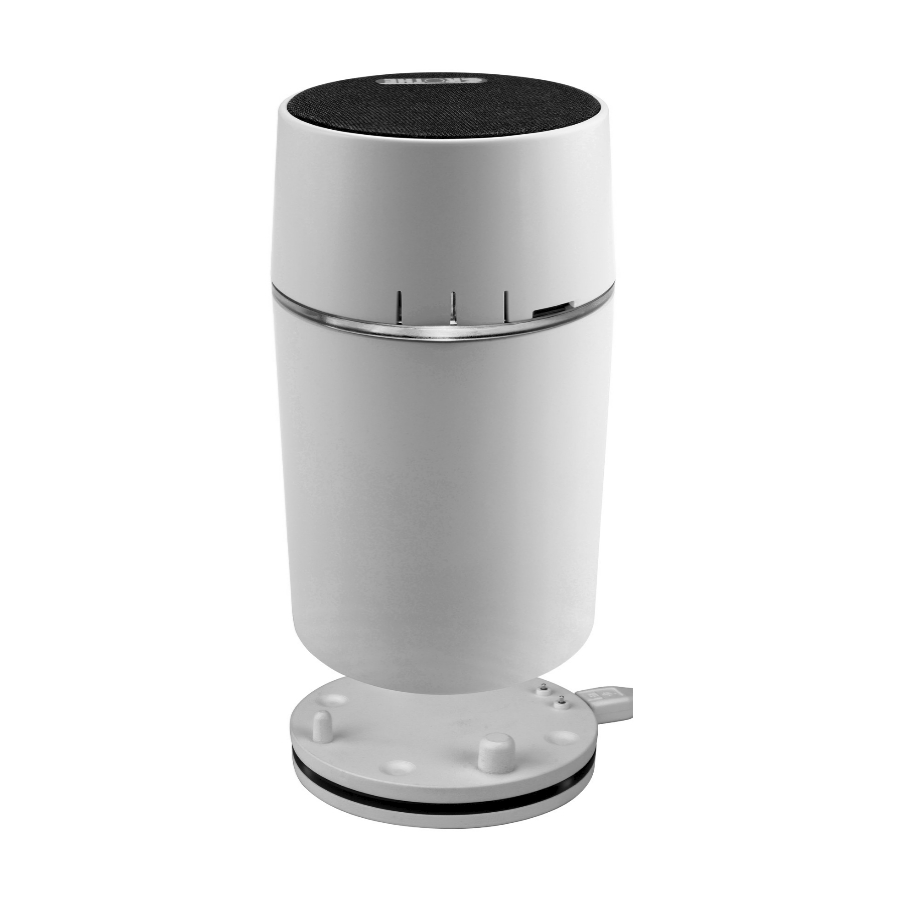

Mobile wireless doorbell CALIMA 800
• Bluetooth
loudspeaker function
®
• Individual ringing melodies in MP3 format
• LED light ring / LED flashing light
• Operation with rechargeable battery or power supply unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CALIMA 800 and is the answer not in the manual?

Questions and answers

Summary of Contents for GROTHE CALIMA 800

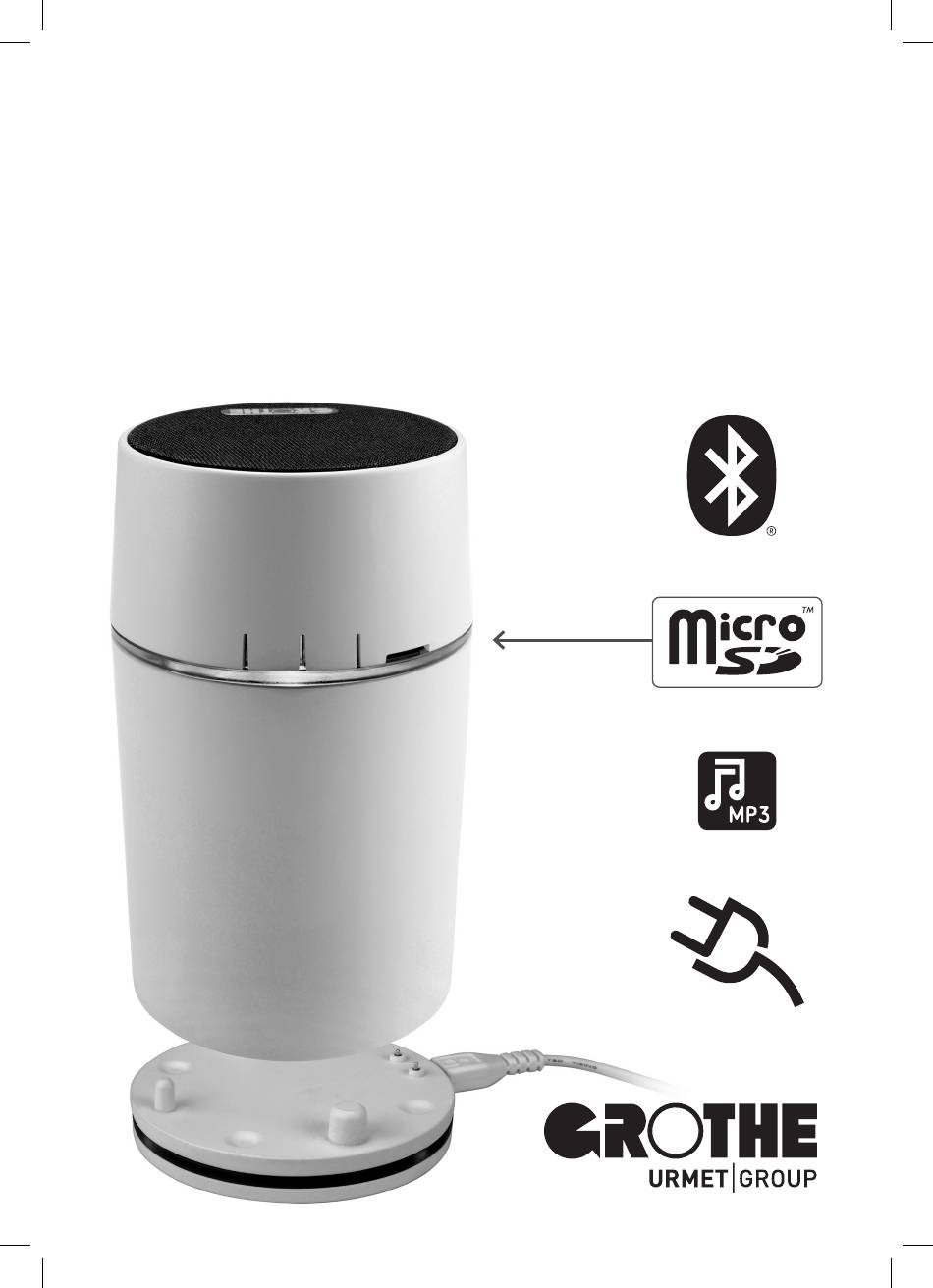

  • Page 1 Installation and operating instructions Mobile wireless doorbell CALIMA 800 • Bluetooth loudspeaker function ® • Individual ringing melodies in MP3 format • LED light ring / LED flashing light • Operation with rechargeable battery or power supply unit...
  • Page 2: Table Of Contents

    • Safety and legal information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 CALIMA 800 – the highlights briefly explained .
  • Page 3: Product Information

    Attach these instructions to the product in case you pass it on. The latest installation and operating instructions are also available on our website on the respective article detail page as PDF for download. You can also find out more here: https://www.grothe.de/Haeufig- https://www.grothe.de/service/ gestellte-Fragen/...
  • Page 4: Safety And Legal Information

    Safety and legal information Declaration of conformity Grothe GmbH herewith declares in sole responsibility and legally binding that this product is in conformity with the essential health and safety requirements and the other relevant provisions of Directive 2014/53/EU; depending on the device type tested according to the relevant standards EN3000220-2, EN 301489-1, EN 62368-1:2016, EN 55022, EN 50581.
  • Page 5: Calima 800 - The Highlights Briefly Explained

    CALIMA 800 – the highlights briefly explained The flexible teamplayer – CALIMA 800 … is a mobile wireless doorbell with a large range and stable radio connection, which you can use … anywhere in the house and in protected outdoor areas (outdoors in dry weather from moisture protected).
  • Page 6: Product Overview

    Product overview Loudspeaker LED light ring microSD card slot Select button Menu button Table adapter with Rechargeable battery compartment cover power supply unit Product overview...
  • Page 7: First Use / Commissioning / Connect Rechargeable Battery

    Open the battery compartment by using a coin to Before first-time use, the battery needs to be unscrew the cover anti-clockwise. connected to the CALIMA 800. KLICK LIGHTS UP RED To do this, simply push the plug of the battery...
  • Page 8 1. Put the cover on. The small black arrow on Cover in closed state. the cover must point to the contact, which, The closed cover prevents the battery from viewed clockwise, is visible below respectively slipping. to the left of the small white arrow between the contacts.
  • Page 9: Replacement Of The Rechargeable Battery

    Replacement of the rechargeable battery Good to know: The CALIMA 800 is equipped with a long-life rechargeable lithium-ion battery. The rechargeable battery is not permanently installed and can be easily replaced without tools. We thus support a long product life of a high-quality product.
  • Page 10 3.) As soon as the LED light ring lights up green, of the CALIMA 800. The guide domes of the table the table adapter is ready for use. adapter help to find the correct position.
  • Page 11: Switch Bluetooth ® Function On And Off / Couple Audio Source Via Bluetooth

    Bluetooth function ® CALIMA 800 can be connected to other audio sources via Bluetooth and thus be used as a Bluetooth ® ® loudspeaker. When a visitor rings, the sound output of the Bluetooth source is immediately muted ® and automatically resumes when the ringing melody ends. So you will certainly not miss a visitor.
  • Page 12   audio source with the CALIMA 800. ® Start a program with audio output on a coupled device within range of Calima 800. Adjust the volume of the audio output on the coupled device. Note: When the battery is low, the Bluetooth function is automatically switched off.
  • Page 13: Melody Selection / Microsd Card

    MELODY SELECTION Then, press the Menu button on the wireless You will hear “melody selection”. doorbell in its normal state twice. *microSD-card 16 GB available at Grothe (µSD16 article number 43509) Melody selection – melody memory / microSD-card »...
  • Page 14 LIGHTS UP GREEN The LED light ring lights up green when the For selecting a call melody in the internal internal melody memory is activated. melody memory press the Select button repeatedly until the desired melody is played. EXTERNAL MELODY MEMORY To select a call melody in the external melody You will hear “External melody memory”.
  • Page 15 LIGHTS UP YELLOW The LED light ring lights up yellow when the For a selection in external melody memory press external melody memory is activated. the Select button repeatedly until the the desired melody is played. From now on, you hear the last played melody when the wireless bell button is pressed.
  • Page 16: Colour Selection Led Light Ring

    Colour selection LED light ring Press the wireless bell button, for which you Then, press the Menu button on the wireless want to set the colour of the LED light ring. doorbell in its normal state three times. COLOUR SELECTION LIGHTS UP IN THE COLOUR CURRENTLY SET You will hear “Colour selection”.
  • Page 17: Led Setting

    SETTING FINISHED LIGHTS UP (WHEN THE WIRELESS BELL BUTTON IS PRESSED) IN THE SET COULOUR 7 seconds after the last button was pressed you Note: The wireless doorbell automatically will hear “Setting finished”. returns to the normal state if no button has From now on, the LED ring lights up in the set been pressed for 7 seconds.
  • Page 18 FLASHES / LIGHTS UP/ BLINKS / SWITCHED OFF Now press the Select button repeatedly until the Selection options always start from the current desired LED setting is displayed. setting in the following order: • White flashing • Coloured lightning • Coloured blinking •...
  • Page 19: Ringtone Volume

    Ringing tone volume BLINKS GREEN Press the Menu button in the normal state five The LED light ring blinks green as confirmation. times. VOLUME You will hear “Volume”. Press the Select button until the call melody is played with the desired volume. Your selection ist saved automatically, if no Note: The volume of the wireless doorbell can button is pressed for 7 seconds.
  • Page 20: Mute / Slumber Function

    7 seconds after the last button was pressed you will hear “Setting finished”. From now on, the wireless doorbell signals with the last selected SETTING FINISHED volume. Note: The wireless doorbell automatically returns to the normal state if no button has been pressed for 7 seconds.
  • Page 21 LIGHTS UP GREEN Press the Select button to end mute. Press the Select button 2, 3 or 4 times at one As confirmation, the LED ring lights up green second intervals in the normal state to activate while you press the button. the slumber function for 1, 3 or 9 hours.
  • Page 22: Couple Wireless Doorbell And Wireless Bell Button

    • You can use the slumber function to mute the wireless doorbell for a period limited from the start, i.e. the wireless switches back to active mode automatically. • You can also end the slumber function at any time before the set period has expired.
  • Page 23 PAIRING ACTIVE LIGHTS UP RED Press the Select button within 7 seconds. As confirmation, the LED ring lights up red and you will hear “Pairing active”. 1. SET MELODY 2. SETTING FINISHED Press the wireless bell button within 30  seconds. You will hear the set melody and “Setting Finished”.
  • Page 24: Delete Coupling Between Wireless Doorbell And Wireless Bell Button

    Deleting the coupling between wireless doorbell and wireless bell buttons LED LIGHT RING GOES OUT Press the Menu button in the normal state six Press the Select button within 7 seconds and times. keep it pressed for 10 seconds. The LED light ring goes out as confirmation.
  • Page 25: Alarm Function

    Alarm function The alarm function can be used in combination with a wireless bell button type MISTRAL SE03 as a quickly ready, flexible and above all mobile inhouse help call system. In this case, the wireless doorbell serves as an alarm generator and the wireless bell button (MISTRAL SE03 only) acts as a signal generator.
  • Page 26: Possible Combinations / Networking

    Possible combinations / networking The figures show some of the possible combinations. Among other things, each wireless doorbell can be activated individually or centrally. Central call One wireless bell button can activate any number of wireless doorbells: One wireless bell button is coupled with several wireless doorbells in different rooms.
  • Page 27: Radio Range

    Radio range Reduction of the radio range by different materials: The CALIMA 800 has a maximum range of 500 metres in the free field, provided that the wireless bell button MISTRAL SE03 (alternatively wireless motion sensor) is not mounted on metal.
  • Page 28: Troubleshooting And Help

    CALIMA 800 (from p. 7). 2.2 The battery in the wireless doorbell does not have the required voltage. Place the CALIMA 800 on the TA55 table adapter and charge the battery. 2.3 The wireless doorbell is muted or in sleep mode.
  • Page 29 8.1 The CALIMA 800 is not in the normal state. Wait about 30 seconds until the Calima 800 is in the normal state. Then call up the menu item “Melody selection”, since the Calima 800 only recognises the change of microSD card in the normal state.
  • Page 30: Quick Start Guide

    Bluetooth audio source with the CALIMA 800. ® Start a program with audio output on a paired device near Calima 800. Adjust the volume of the audio output on the paired device. Quick-start guide: Bluetooth function • Couple audio source via Bluetooth ®...
  • Page 31: Melody Selection / Microsd Card

    Quick-start guide ONLY NECESSARY FOR ONLY NECESSARY FOR OPTION 2 OPTION 2 OPTION 1: OPTION 1: MELODY SELECTION Current melody memory Internal melody memory LIGHTS UP GREEN External melody memory (microSD card) LIGHTS UP YELLOW OPTION 2: OPTION 2: EXTERNAL MELODY SETTING FINISHED MEMORY Change melody memory...
  • Page 32: Colour Selection Led Light Ring

    Quick-start guide COLOUR SELECTION LIGHTS UP IN THE CURRENTLY SET COLOUR SETTING FINISHED LIGHTS UP (WHEN THE WIRELESS BELL BUTTON IS PRESSED) IN THE SET COULOUR LED SETTING Selection options always start SETTING FINISHED from the current setting in the following order: •...
  • Page 33: Volume

    Quick-start guide VOLUME BLINKS GREEN SETTING FINISHED BLINKS 2 – 4 TIMES YELLOW 1) BLINKS YELLOW 1) short approx. all 8 seconds PRELIMINARY END FUNCTION PRELIMINARY END FUNCTION The slumber function at a glance Press button Mute Blinking of the LED light ring 2 times for 1 hour 2 times yellow...
  • Page 34: Coupling

    Quick-start guide LIGHTS UP GREEN WHILE 1) BLINKS GREEN PRESSING THE BUTTON 1) short approx. all 8 seconds PAIRING BLINKS RED 1. SET MELODY PAIRING ACTIVE 2. SETTING FINISHED LIGHTS UP RED Quick-start guide: Mute • Coupling...
  • Page 35: Delete Coupling

    Quick-start guide 1. PAIRING DELETED 2. SETTING FINISHED LED LIGHT RING GOES OUT Important: To use the integrated alarm function, VERY LOUD you must cut through a ALARM TONE wire link in the wireless bell button. Please refer to the installation and operating instructions for the wireless bell button MISTRAL SE03.
  • Page 36 The same applies to the persons or companies that have been involved in the preparation and production of this manual. GROTHE GmbH Löhestraße 22 D- 53773 Hennef service@grothe.de...
