Verint Nextiva S1900e Series Installation Manual

Nextiva S1900e Series
Covering the S1900e-AS, S1900e-AS-XT, S1950e, S1950e-XT, S1970e,
S1970e-XT, S1970e-R, and S1970e-R-XT.

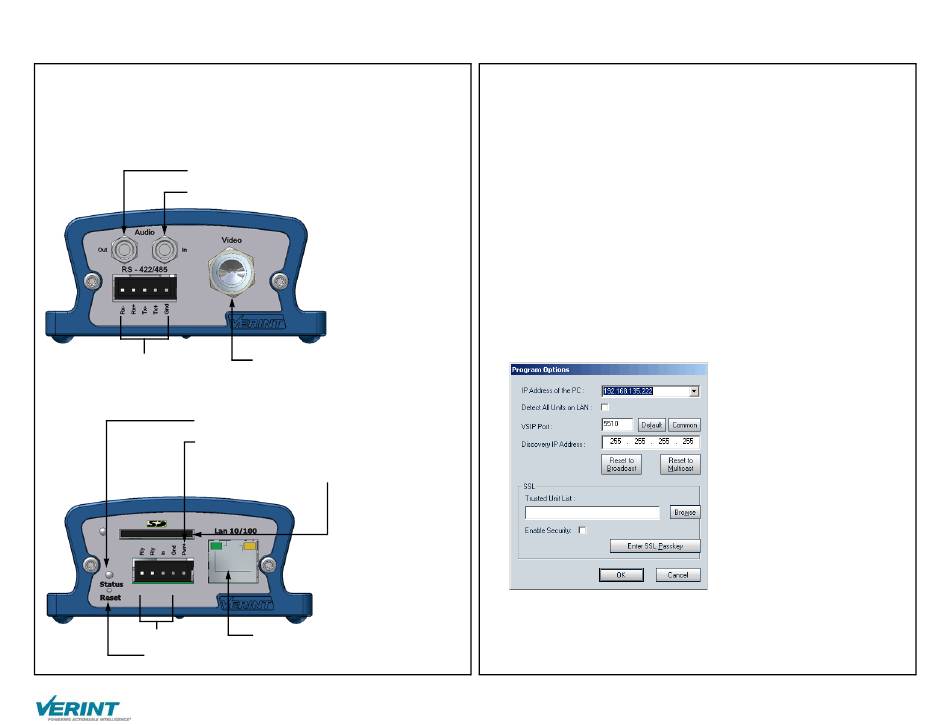

Casing
Front:
Audio output
Audio input
RS-422/485
Back:
System status
12V DC power
I/O
Reset
Video input or output
SD card slot (on the S1900e-AS
and S1900e-AS-XT only)
RJ-45 Ethernet
www.verint.com/videosolutions
Installation Guide
Installation
1. Plug the video cable of the camera or monitor to the video BNC
connector on the device.
2. Plug the network cable into the LAN 10/100 Ethernet connector on the
device.
3. Power the device.
4. If required, connect the serial port of the device to a camera.
Configuration
1. Power the edge device and establish its Ethernet connection.
c
2. Start SConfigurator.
The SConfigurator window appears.
3. In the General tab, click Program Options.
The Program Options window appears.
4. Check Detect All Units on LAN.
5. Ensure that the VSIP Port is 5510; otherwise, click Default.
6. Ensure that the Discovery IP Address is 255.255.255.255;
otherwise, click Reset to Broadcast.
