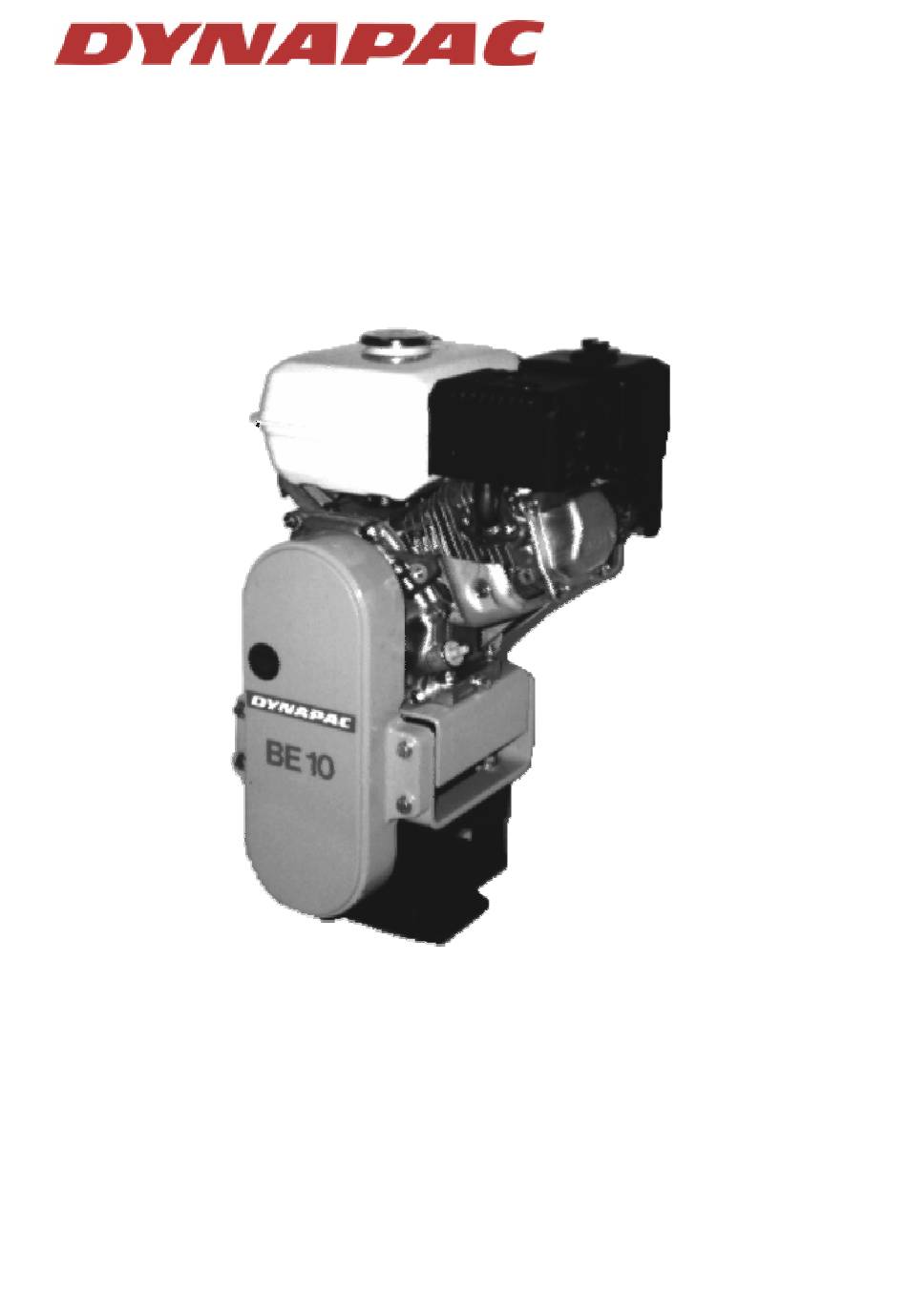

- Page 1 CONCRETE EQ CONCRETE EQ CONCRETE EQ CONCRETE EQUIPMENT UIPMENT UIPMENT UIPMENT BE10 Petrol Engine Vibrator Instructions and spare parts catalogue Manual number : 4700367199_ENG_NO.DOC Revision : 2...
-
Page 2: Table Of Contents
INSTRUCTIONS MANUAL – BE10 SUMMARY GENERAL SAFETY RULES ....................3 Machines submitted ............................3 Symbols................................3 Important rules for your safety ........................3 Safety equipment ............................3 Working area..............................3 Power supply..............................4 Starting the machine ............................4 Operation.................................4 Maintenance..............................4 Be alert ................................4 GENERAL ...........................5 DESIGN ..........................5 TECHNICAL DATA ......................5 OPERATION ........................6... -
Page 3: General Safety Rules
INSTRUCTIONS MANUAL – BE10 GENERAL SAFETY RULES MACHINES SUBMITTED Powered with : Electric, Pneumatic, Petrol or Diesel engine. SYMBOLS The words WARNING and CAUTION used in safety instructions, have the following meanings : • WARNING indicates hazards or hazardous procedures which could result in serious injury or death , if the WARNING is not observed. -
Page 4: Power Supply
INSTRUCTIONS MANUAL – BE10 Do not operate a machine powered by a petrol or diesel engine in poorly ventilated spaces. These types of engines produce toxic gases which can cause serious health troubles. POWER SUPPLY WARNING Make sure that the power supply equipment complies with the relevant safety requirements of the local and the international standards. -
Page 5: General
INSTRUCTIONS MANUAL – BE10 GENERAL DYNAPAC BE10 petrol engine vibrator is designed to ensure vibrations on BM double beams in order to get a complete machine for screeding concrete. It is provided with Honda, Robin or without engine. DESIGN The engine 1 is mounted on rubber elements 2. -
Page 6: Operation
INSTRUCTIONS MANUAL – BE10 OPERATION OPERATING SPEED The max. speed of the engine must not exceeded 3000 r.p.m. It is settled in factory. In case of maintenance operation on the engine this speed must be checked and eventually readjusted to 3000 r.p.m. -
Page 7: Spare Parts Catalogue
INSTRUCTIONS MANUAL – BE10 SPARE PARTS CATALOGUE RESERVDELSTÄLLNING ORDERING SPARE PARTS Följande uppgifter ska lämmas vid beställning av To avoid errors in delivery, please give the following reservdelar för att undvika leveransfel : information when ordering spare parts : 1. Maskintyp. - Page 8 INSTRUCTIONS MANUAL – BE10 SPARE PARTS Note : To place spare part order, use : - The serial number of the machine - The description and the part number BE10 Honda BE10 (Excl. engine) N° 4700770198 N° 4700704538 Ref. Description...
- Page 9 INSTRUCTIONS MANUAL – BE10 File: 4700367199_ENG_NO.doc Page 9 / 12...
- Page 10 / certifica que o equipamento / prohlašuje, že tento stroj / bekrefter at maskinen CONFORMITEITSVERKLARIN Petrol engine vibrator BE10 From S/N 1000000 CERTIFICATE CONFORMITY Handelsname / Brand / марка / Mærke / Marca / Kaubamärk / Tuotemerkki / Marque / Εµπορικό...
- Page 11 LIEFERANTENERKLÄRUNG oraz 2002/96, jeŜeli jest urządzenie zasilane prądem Vastab masin ka Euroopa standardile EN12100-1, EN12100-2, elektrycznym. EN12649. Este de asemenea produs in conformitate cu DIRECTIVA Täyttää EU-STANDARDIN EN12100-1, EN12100-2, EN12649 DECLARATION OF INCORPORATION EC / EUROPEANA 2006/95, 2004/108, 2002/95 & 2002/96, in cazul vaatimukset.
- Page 12 DYNAPAC CONCRETE EQUIPMENT DYNAPAC Concrete – HQ address: P.O Box 48 – 77220 Tournan-en-Brie, France, Tel:+33.1. 64.42.59.00, Fax: + 33.1. 64.42.00.04 Factory address : P.O Box 63, Route de Neville, 76460 Saint Valery-en-caux, France, Tel: +33.2.35.57.07.76, Fax: +33.2.35.97.48.82 We reserve the right to change specifications without notice. Photos and illustrations do not always show standard versions of machines.
