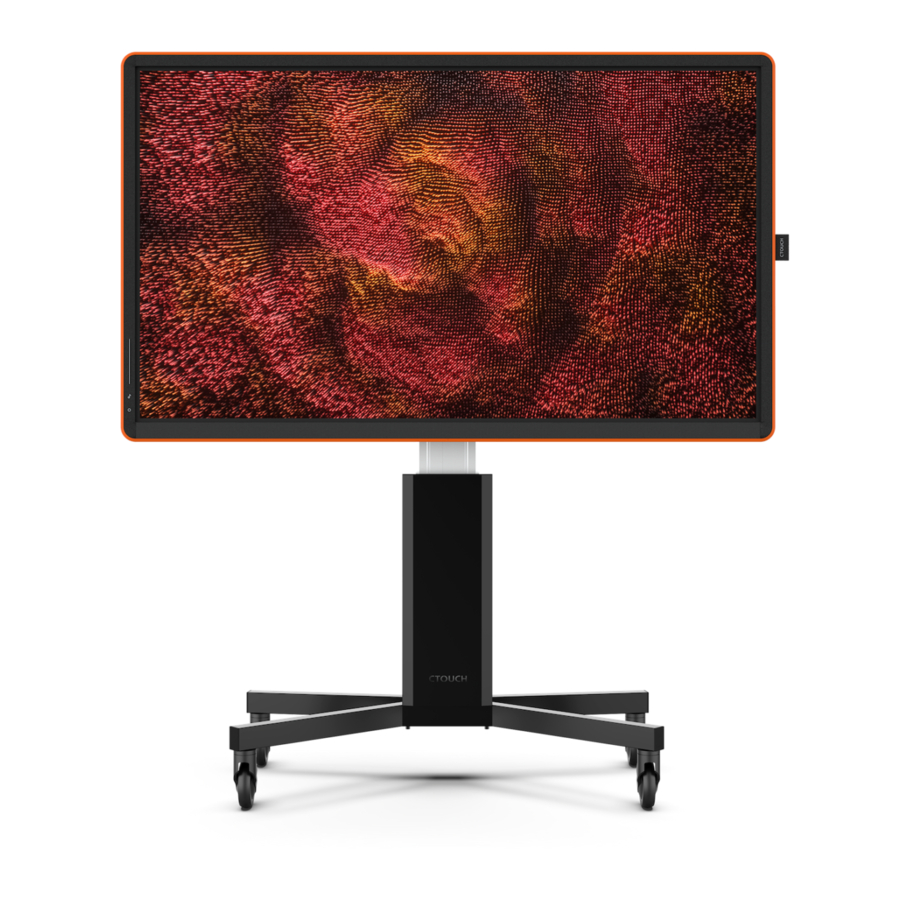

- Page 1 INSTALLATION / USER MANUAL CTOUCH Canvas HEY YOU, LET ME HELP! Share, inspire, have fun! With CTOUCH by your side.
-
Page 2: Table Of Contents
Vesa mount installation ..........................9 Control panel ..............................10 Connection panel ............................. 11 Connections ............................... 12 Remote control ..............................14 Basic operations .............................. 15 Setting menu ..............................18 Troubleshooting ............................... 21 Specifications ..............................22 Share, inspire, have fun! With CTOUCH by your side. -
Page 3: Important Information
Do not place cloth or other materials between the CTOUCH interactive display and supporting furniture. • Do not let children climb on furniture to reach the CTOUCH interactive display or its controls. • Do not use immediately after moving from a low temperature to high temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards. -
Page 4: Important Safety Precautions
OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your CTOUCH interactive display, please read the following precautions carefully before using the product. - Page 5 18. Clean only with damp cloth - Unplug the device from the power before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft cloth for cleaning. Please contact your dealer for our cleaning material or look at support.ctouch.eu for our cleaning recommendations.
- Page 6 Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight to near a heater or in high humidity, as this may cause the cabinet to deform and the screen to malfunction and affect the CTOUCH interactive display’s performance. •...
- Page 7 When you move the CTOUCH interactive display, hold the display by the handles and support underneath if needed, not by the frame! • Be aware of the danger or harm which may be caused by carrying or moving the CTOUCH interactive display, as the bezel is very thin. •...
-
Page 8: Standard Accessories
UK AC Power Cord USB Touch Cable USB-C Cable HDMI Cable Quick Start Guide Warranty Card Welcome Letter Note: the illustrations may differ slightly from the items shipped with your products. Share, inspire, have fun! With CTOUCH by your side. -
Page 9: Vesa Mount Installation
VESA MOUNT INSTALLATION 1. Contact a professional for assistance when mounting the CTOUCH interactive display. CTOUCH is not responsible for any damage to the product or injury to yourself, if you mount the CTOUCH interactive display on your own. 2. Do not mount the CTOUCH interactive display while the CTOUCH interactive display is turned on. -
Page 10: Control Panel
CTOUCHABLE BUTTONS DESCRIPTION CTOUCH button on/ off Power: Press the button for 2 seconds to turn the CTOUCH interactive display on. Quick start menu: Press button once to call up the quick start menu Mute Turn sound on or off. -
Page 11: Connection Panel
HDMI out Connect an external device with a HDMI cable to this port to output the image and sound of the CTOUCH interactive display. PC in Connect an external device with a VGA cable and Mini Jack to this port. -
Page 12: Connections
CONNECTIONS CAUTIONS BEFORE CONNECTING • Please make sure the CTOUCH display is turned off then connecting an external device. • Check the plugs at the ends of the cables to make sure that they are the correct type before plugging them into the jacks of the CTOUCH interactive display. - Page 13 CTOUCH Canvas Connect TOUCH OUT with USB cable to PC USB port. HDMI cable HDMI devices Connect PC with VGA cable, HDMI cable or DP cable. Please choose the proper method of connection based on your device.(Only for PC, HDMI, DP signal) USB cable Touch out 1 corresponds to the HDMI 1.
-
Page 14: Remote Control
Turn off the picture on the CTOUCH interactive diaplay and Freeze the current picture listen to the program audio only. Mute the sound Volume down Volume up Switch ECO mode on/off Share, inspire, have fun! With CTOUCH by your side. -
Page 15: Basic Operations
Note: The CTOUCH interactive display needs some time to shut off correctly before it can be switched on again. By interupting this proces the next start up can take longer. Note: When there is no active source on the CTOUCH interactive display, it will go into stand-by mode after 3 minutes. - Page 16 FIRST TIME INSTALLATION 1. Network Plug the LAN-cable into the LAN-port on the bottom or side of the CTOUCH display, to connect to the internet. 2. Settings menu • After switching on the CTOUCH display, access the settings menu to change the default settings: •...
- Page 17 CTOUCH Canvas OPERATING THE QUICK START MENU Press the CTOUCH button or slide up from the bottom of the screen with one finger to call up the quick start menu. Set volume Set brightness Select input source Standby Screen settings...
-
Page 18: Setting Menu
SETTING MENU NETWORK Ethernet Connect to Ethernet Share, inspire, have fun! Share, inspire, have fun! Manual CTOUCH Wallom2 wall lift With CTOUCH by your side. With CTOUCH by your side. - Page 19 CTOUCH Canvas DEVICE: PICTURE & SOUND Energy mode Select the energy mode of the display Select the aspect ratio (display proportions) according to your video signal type or Zoom Mode personal preference Picture mode Select picture mode Colour profile Select colour profile...
- Page 20 Set Off Timer to switch the CTOUCH to standby at a specified day and time Timer on Set On Timer to turn on the CTOUCH automatically on at a certain day and time Change pin code Set pin code of the display - this pin code will be used for certain menu's & to lock the...
-
Page 21: Troubleshooting
If you still have further questions, please visit support.ctouch.eu or call the services center in your local area. The number of the service center in your local area can be found on the the Warranty Card, which is included in the Accessory Box. -
Page 22: Specifications
Note: If your problem is not solved, turn off your unit and then on again. Cautions! Never attempt to repair a defective CTOUCH interactive display yourself, as the warranty will void. SPECIFICATIONS MODEL NO. - Page 23 Equipment design and specifications may be changed without notice. CTOUCH Europe BV - Achtseweg zuid 153 R, 5651 GW Eindhoven, The Netherlands ctouch.eu...
- Page 24 Share, inspire, have fun! ctouch.eu With CTOUCH by your side.
