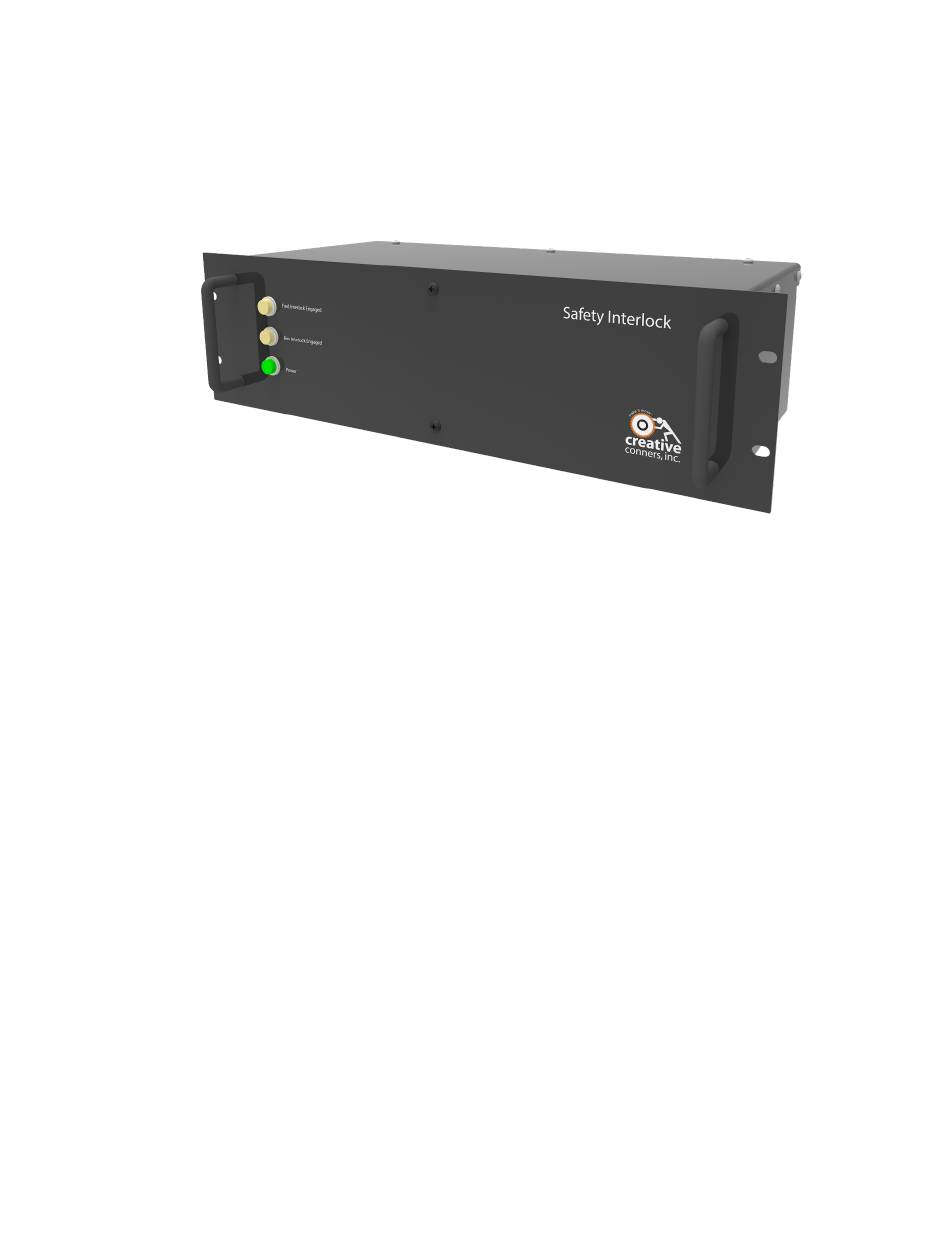

- Page 1 Safety Interlock Pro ™ Reference Manual v1.0 Copyright 2020, Creative Conners, Inc ...
- Page 2 Safety Interlock Pro Reference Manual 3/2020 Page 2 of 10 ...
-
Page 3: Table Of Contents
Safety Interlock Pro Reference Manual 3/2020 Contents Contents 3 Getting Started 4 What’s Included 4 Features 5 Installation 5 Powering Up 6 Signal Connections 6 Limit Connections 6 Sensor Connections 7 Emergency Stop Connections 7 Operation 8 Troubleshooting 8 Common Problems 8 ... -
Page 4: Getting Started
3/2020 Getting Started The Safety Interlock Pro is an extra layer of safety to critical effects. Integrating bumper switches, pressure mats, and additional limit switches into any system gives a secondary layer of protection for areas with potential pinch points, like an elevator or pivoting wall. The Safety Interlock is wired ... -
Page 5: Features
Installation The Safety Interlock Pro is a 3U rack mountable case designed to fit in a standard 19” rack. It is not required to be rack mounted, feel free to place it on the operator desk or with the Stagehand Pro ... -
Page 6: Powering Up
12VDC return signal is interrupted and the Stagehand Pro will enter a limit fault condition and disallow motion. Adding a safety interlock pro to a Stagehand Pro allows additional limit switches and safety sensors to be monitored. These switches and sensors interrupt the forward, reverse, and ultimate limit circuits ... -
Page 7: Sensor Connections
Emergency Stop Connections The Safety Interlock Pro requires a 24VDC Emergency Stop signal from a Showstopper in order to allow power to flow to the motor and brakes. Internally, the Stagehand controller has a redundant, self-monitoring circuit to insure that power will be removed from the motor and brakes instantly if the ... -
Page 8: Operation
Safety Interlock Pro is actively doing its job. To verify this, the three indicator lights on the face should all be illuminated. Other than connecting or disconnecting any limit switches or sensors, there should ... -
Page 9: Technical Support
Safety Interlock Pro Reference Manual 3/2020 Only Power and FWD safety sensor indicators Confirm no REV limit is activated illuminated Confirm no REV sensors are activated Confirm they are plugged into correct direction Only Power indicator illuminated Confirm no limit is activated FWD and REV ... -
Page 10: Drawings
Safety Interlock Pro Reference Manual 3/2020 Description Value Emergency Stop Input 24VDC Emergency Stop Output 24VDC Drawings Schematic Page 10 of 10 ...
