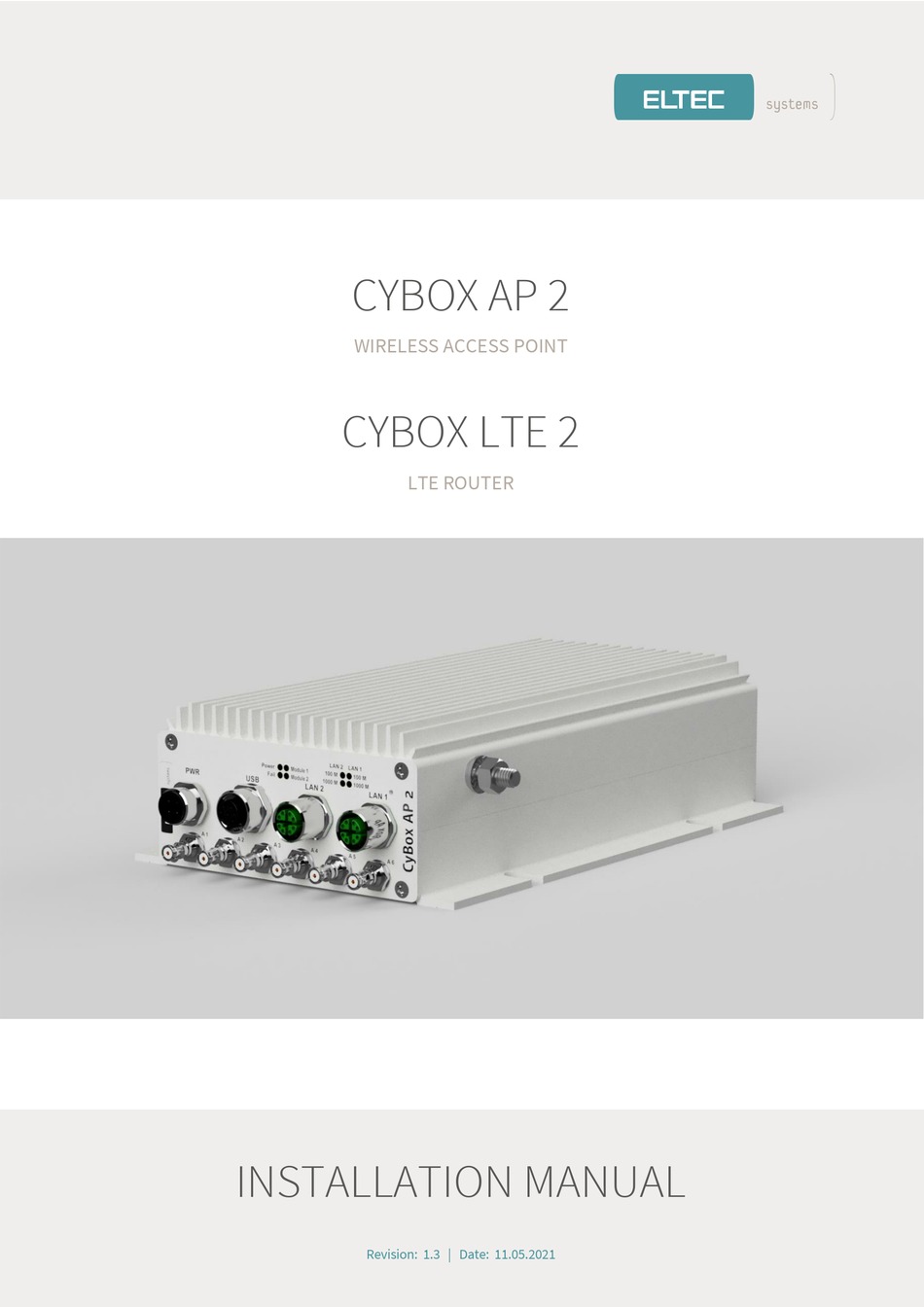

- Page 1 CYBOX AP 2 WIRELESS ACCESS POINT CYBOX LTE 2 LTE ROUTER INSTALLATION MANUAL Revision: 1.3 | Date: 11.05.2021...
- Page 2 CYBOX AP 2 | CYBOX LTE 2 LIST OF CHANGES ISSUE CHANGE DESCRIPTION DATE Initial Release 2021-03-30 Chapter correction 2021-03-31 Mechanical drawing correction 2021-04-27 Adaption of safety information and chapter mounting 2021-05-11...
- Page 3 The complete risk inherent in the utilization of this document or in the results of its utilization shall be with the user; to this end, ELTEC Elektronik AG shall not accept any liability. Regardless of the applicability of respective copyrights, no portion of this document...
- Page 4 EU DECLARATION OF CONFORMITY ELTEC Elektronik AG herewith declares that the device is compliant to the basic requirements of the directive 2014/53/EU. The full text of the EU declaration of conformity is available in the Download Center at www.eltec.com.
- Page 5 CYBOX AP 2 | CYBOX LTE 2 CONTACT ELTEC Elektronik AG Galileo-Galilei-Straße 11 55129 Mainz Germany +49 6131 918 100 +49 6131 918 195 Email info@eltec.com www.eltec.com...
-
Page 6: Table Of Contents
CYBOX AP 2 | CYBOX LTE 2 CONTENTS ABOUT THIS DOCUMENT OVERVIEW Products HARDWARE Device Connectors 3.1.1 Power Supply Connectors 3.1.2 Ethernet Interfaces 3.1.3 Antenna Connectors Power Supply 3.2.1 Power Input 3.2.2 Power over Ethernet (PoE+) M12 Service Interface (USB and Serial Port) Front Panel and Module-to-Antenna Connections 3.4.1... - Page 7 CYBOX AP 2 | CYBOX LTE 2 LIST OF TABLES Table 1 Pin Assignment of Power Supply Connector (PWR) Table 2 Pin Assignment of M12 Ethernet Connectors (LAN 1/2) Table 3 Pin Assignment of M12 Service Connector Table 4 Overview Front Panel Antenna Description...
- Page 8 Picture of CyBox LTE 2-W Figure 3 Front Panel Overview Figure 4 SIM Slot Assignment per Modem of the CyBox LTE 2 Figure 5 Dimensions of the CyBox AP 2 and CyBox LTE 2 Housing Figure 6 Earth Cable Mounting on Earth Stud VIII...
-
Page 9: About This Document
CYBOX AP 2 | CYBOX LTE 2 ABOUT THIS DOCUMENT This installation manual is intended only for system developers and integrators; it is not intended for end users. It describes the hardware functions of the product, connection of peripheral devices and integration into a system. -
Page 10: Overview
CYBOX AP 2 | CYBOX LTE 2 OVERVIEW PRODUCTS This installation manual comprises all information to set-up the following products. Figure 1 Picture of CyBox AP 2-W Figure 2 Picture of CyBox LTE 2-W... -
Page 11: Hardware
Table 1 Pin Assignment of Power Supply Connector (PWR) 3.1.2 ETHERNET INTERFACES The two LAN-ports of the CyBox AP 2 and CyBox LTE 2 are utilizing M12 X-coded conncetors with the pin- assignment as shown in Table 2. Mating connectors are available from several manufacturers. SIGNAL NAME... -
Page 12: Antenna Connectors
CYBOX AP 2 | CYBOX LTE 2 3.1.3 ANTENNA CONNECTORS The QLS antenna connectors are located at the bottom part of the front panel. Besides the GNSS connector each radio interface connector is labeled from A1 to A6. Their functionalities depend on the CyBox model (see 3.4.1 Assignment Front Panel Labelling –... -
Page 13: Power Supply
M12 SERVICE INTERFACE (USB AND SERIAL PORT) The CyBox AP 2 and CyBox LTE 2 are equipped with a USB and serial port. The USB port can be used to attach a memory device to update the firmware or to configure the device. -
Page 14: Front Panel And Module-To-Antenna Connections
CYBOX AP 2 | CYBOX LTE 2 FRONT PANEL AND MODULE-TO-ANTENNA CONNECTIONS The figure below provides an overview of the front panel. Figure 3 Front Panel Overview 3.4.1 ASSIGNMENT FRONT PANEL LABELLING – SOFTWARE The ports and LEDs “LAN 1” and “LAN 2” correspond respectively to the interfaces “eth0” and “eth1”... -
Page 15: Led Indicators
CYBOX AP 2 | CYBOX LTE 2 LED INDICATORS The LEDs on the front panel of CyBox AP 2 and CyBox LTE 2 provide quick indication of the device status. 3.5.1 POWER LED STATUS LED COLOR STATE DESCRIPTION Green Device is receiving correct input power... -
Page 16: Lan Led (100 M | 1000 M) Status
RESET SWITCH The CyBox AP 2 and CyBox LTE 2 is equipped with a hidden reset switch behind the front panel, close to the top-right corner. The button is accessible with a straightened paper clip pushed through the little hole on the front panel. -
Page 17: Figure 4 Sim Slot Assignment Per Modem Of The Cybox Lte
CYBOX AP 2 | CYBOX LTE 2 The drawing in Figure 4 shows the SIM slot assignment per modem. Figure 4 SIM Slot Assignment per Modem of the CyBox LTE 2 Important: Do not change the SIM cards when the device is powered since there is a danger of touching... -
Page 18: Mounting
CYBOX AP 2 | CYBOX LTE 2 MOUNTING When mounting the CyBox AP 2 and CyBox LTE 2, please take into account the following aspects: Do not install the device close to any sources of heat, such as radiators or heat registers. -
Page 19: Connecting An Earthing Cable
CYBOX AP 2 | CYBOX LTE 2 CONNECTING AN EARTHING CABLE A M6 earthing stud on the front panel of the device (also refer to Figure 3) for protective earth connection is essential for the device security. Carry out the following steps to connect an earthing cable: Use an earthing cable with a cross-section of at least 2.5 mm²...
