5

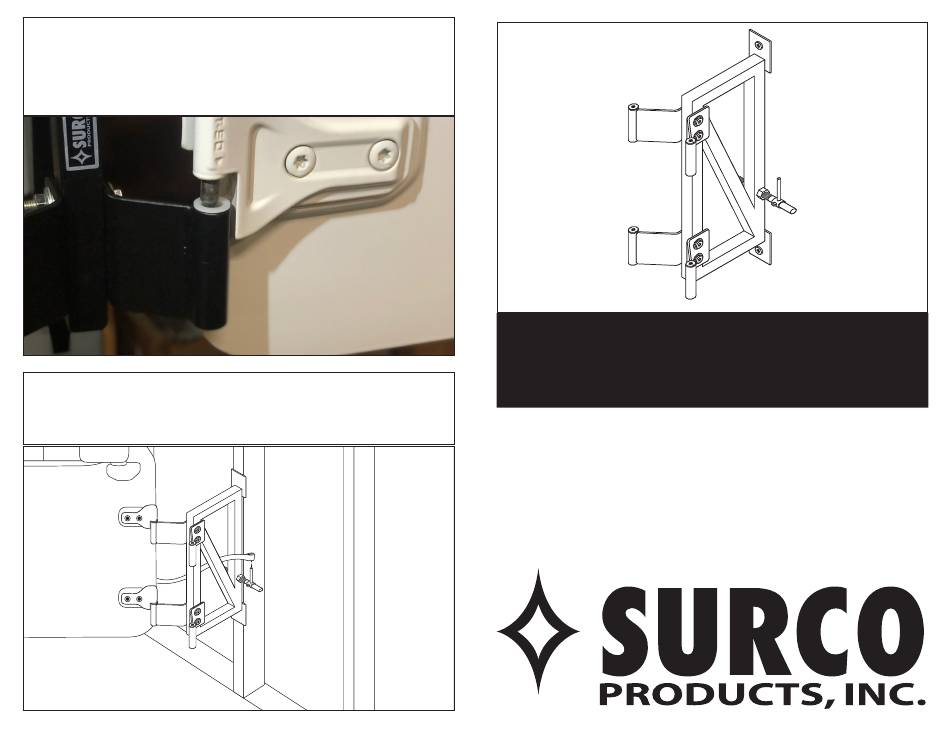

ENSURE BRACKET IS SECURED. LOCATE THE INSERT THAT WILL FIT YOUR
JEEP AND INSTALL INTO THE DOOR BRACKET. CAREFULLY LIFT THE JEEP
DOOR AND INSERT DOOR HINGE PINS INTO THE INSERT AS SHOWN. THE
LOWER BRACKET HAS SLOTTED HOLES FOR ADJUSTMENT FOR DIFFER
ENT PIN LOCATIONS. LIFT THE BRACKET UNTIL IT FULLY SEATS DOOR PIN
AND TIGHTEN BOLTS FOR LOWER DOOR SUPPORT.
6
ADJUST THE DOOR STRAP RETAINER VIA THE ADJUSTABLE PEG FOR
DOOR RETENTION. WEAVE STRAP AS SHOWN AND ELIMINATE SLACK.
REPEAT FOR THE REMAINING DOOR. PROPER ADJUSTMENT PREVENTS
DOOR FROM SWINGING OUTWARD.

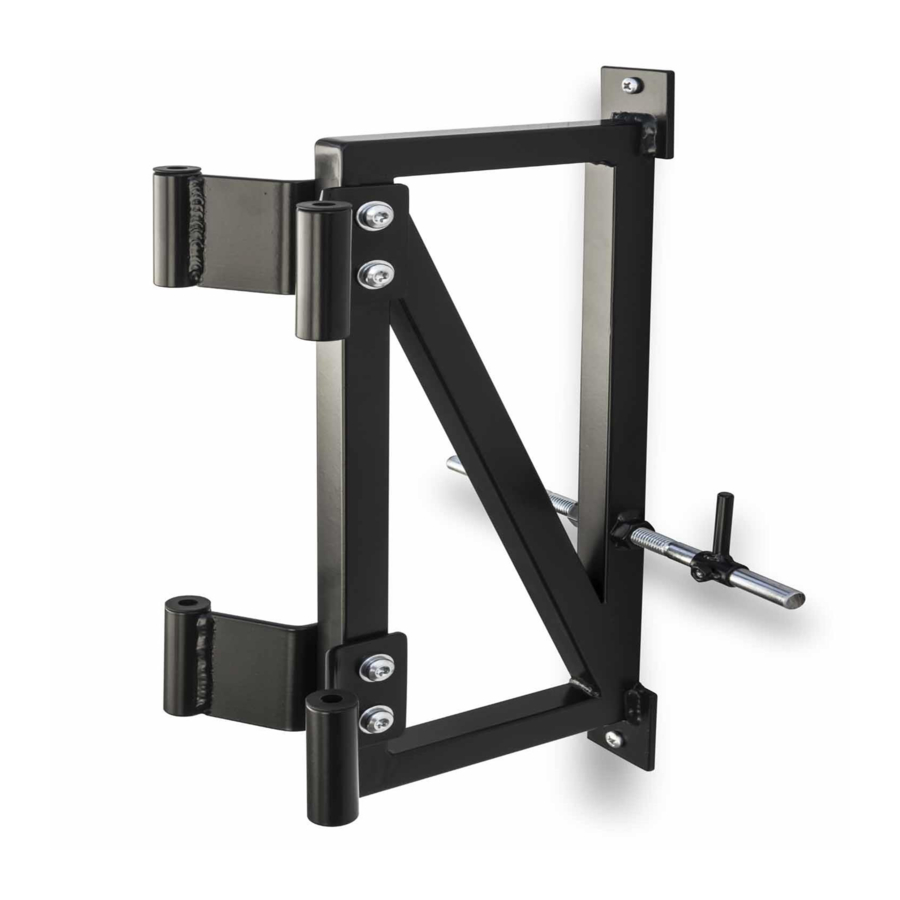

DOOR HOLDER BRACKET
FOR JEEP WRANGLER
FOR JEEP WRANGLER, YJ, TJ, JK, AND JL WITH ORIGINAL EQUIPMENT DOORS.
CAREFULLY READ ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEM-
BLY/USE. THIS PRODUCT IS DESIGNED TO BE MOUNTED TO A WALL THAT
HAS STUDS SPACED 16" ON CENTER. DUE TO DIFFERENCES IN BUILDING
MATERIALS, MOUNTING HARDWARE IS NOT SUPPLIED. FAILURE TO SECURE
PRODUCT TO STUDS CAN RESULT IN DAMAGE TO PRODUCT, PROPERTY, OR
SERIOUS INJURY.
DLXWMDH - 4/2020
Advertisement
Related Manuals for Surco Products DH1002
Summary of Contents for Surco Products DH1002
- Page 1 ENSURE BRACKET IS SECURED. LOCATE THE INSERT THAT WILL FIT YOUR JEEP AND INSTALL INTO THE DOOR BRACKET. CAREFULLY LIFT THE JEEP DOOR AND INSERT DOOR HINGE PINS INTO THE INSERT AS SHOWN. THE LOWER BRACKET HAS SLOTTED HOLES FOR ADJUSTMENT FOR DIFFER ENT PIN LOCATIONS.
- Page 2 ASSEMBLE THE BRACKET AND BRACKET DOOR SUPPORTS WITH THE POSITION/ MARK THE MOUNTING POSITION. USE THE BRACKET FOR PROVIDED BOLTS, WASHERS, AND NUTS. THE LOWER BRACKET REFERENCE AND DRILL 1/4” PILOT HOLES IN EACH STUD CENTER. PILOT SUPPORTS SHOULD BE INSTALLED WITH THE LONG SLOTTED HOLES HOLES SHOULD BE AT LEAST 2”...
