Surco Products J400 Instructions

Parts List:

2- Gutter Mount
(Part A)
2- Gutter Mount
(Part B)
2- Gutter Mount
(Part C)
2- Back Mount
2- Strap Mounts
4- Slider Brackets
(Part D)
1- Torx Wrench

INSTALLATION

1) Connect Gutter mount Parts B & C with two 1/4"-20 x 5/8" screws
and two 1/4"-20 nylon nuts. (fig. A)
2) Connect Slider Bracket (Part D) to the top end of the Gutter
Mount using the 1/4"-20 x 3/4" hex screws and 1/4"-20 nylon nuts.
Keep the screws loose. (fig. A)
3) Silde Slider Bracket (Part D) attached to the gutter Mount into the
front crossbar. (fig. B)
4) Connect Slider Bracket (Part D) to the top end of the Back
Mount using the 1/4"-20 x 3/4" hex screws and 1/4"-20 nylon nuts.
(fig. A)
5) Slide Slider Bracket (Part D) attached to the Back Mount into
the back crossbar. (fig. B)
6) Place rack on hard top. Align rack front to back. Center rack
side to side. Once desired position is reached tighten the
1/4"-20 nylon nuts under the Gutter Mounts on the front crossbar
only. Take the 1/4"-20 x 1 1/4"screw and slide it through the hole
at the bottom of Gutter Mount (Part B).
Use one screw for each adapter. (fig. A)
7) Take Gutter Mount (Part A) and slide it over the 1/4"-20 x 1 1/4"
screw. Use the 1/4"-20 nylon nuts to tighten and secure the
bracket. Make sure to use the provided Rubber Strip. (fig. C)
Attention: Secure front Gutter Mounts
before ajdusting Back Mounts!
J400, J500, J600
Hard Top Mount Instructions
4- Rubber Strips
(Various Sizes)
4- 1/4"-20 x 5/8" Screws
8- 1/4-20 x 3/4" Hex Screws
2- 1/4-20 x 1 1/4" Hex Screws
14- 1/4"-20 Nylon Nuts
2- 1/4"-20 x 2" Torx Screws

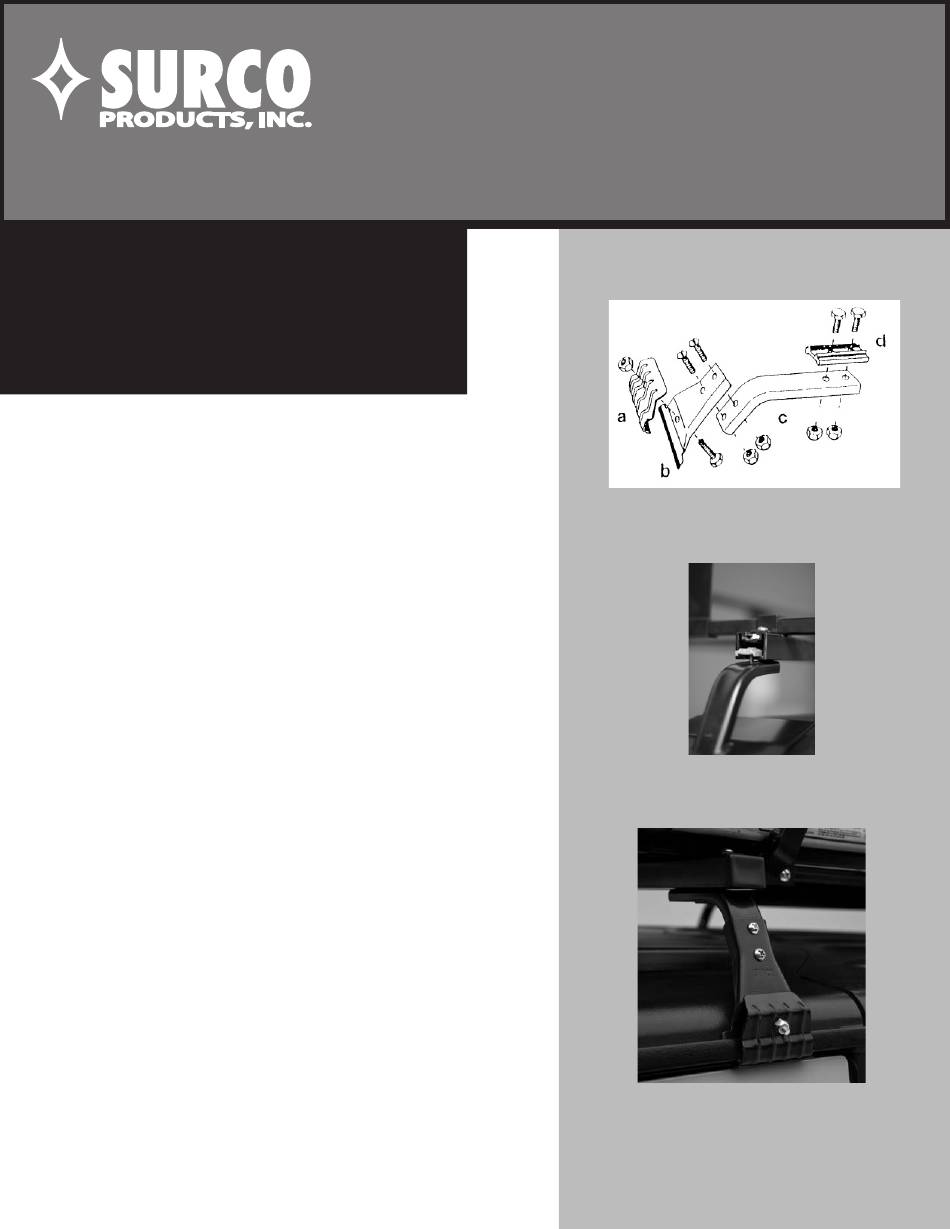

fig. A
