Aventics PE6 Operating Instructions Manual page 3

1
rP
6
Zwei Schaltpunkte einstellen
Setting two switching points
Définir deux points de commutation
Impostazione di due punti di commutazione
Ajustar dos puntos de conmutación
Inställning av två kopplingspunkter
(1 = Hysterese/hysteresis/hystérésis/isteresi/histéresis/hysteres)
A
7
A B
S1 9.8 mm 33.7 mm
S2 9.8 mm 38.8 mm

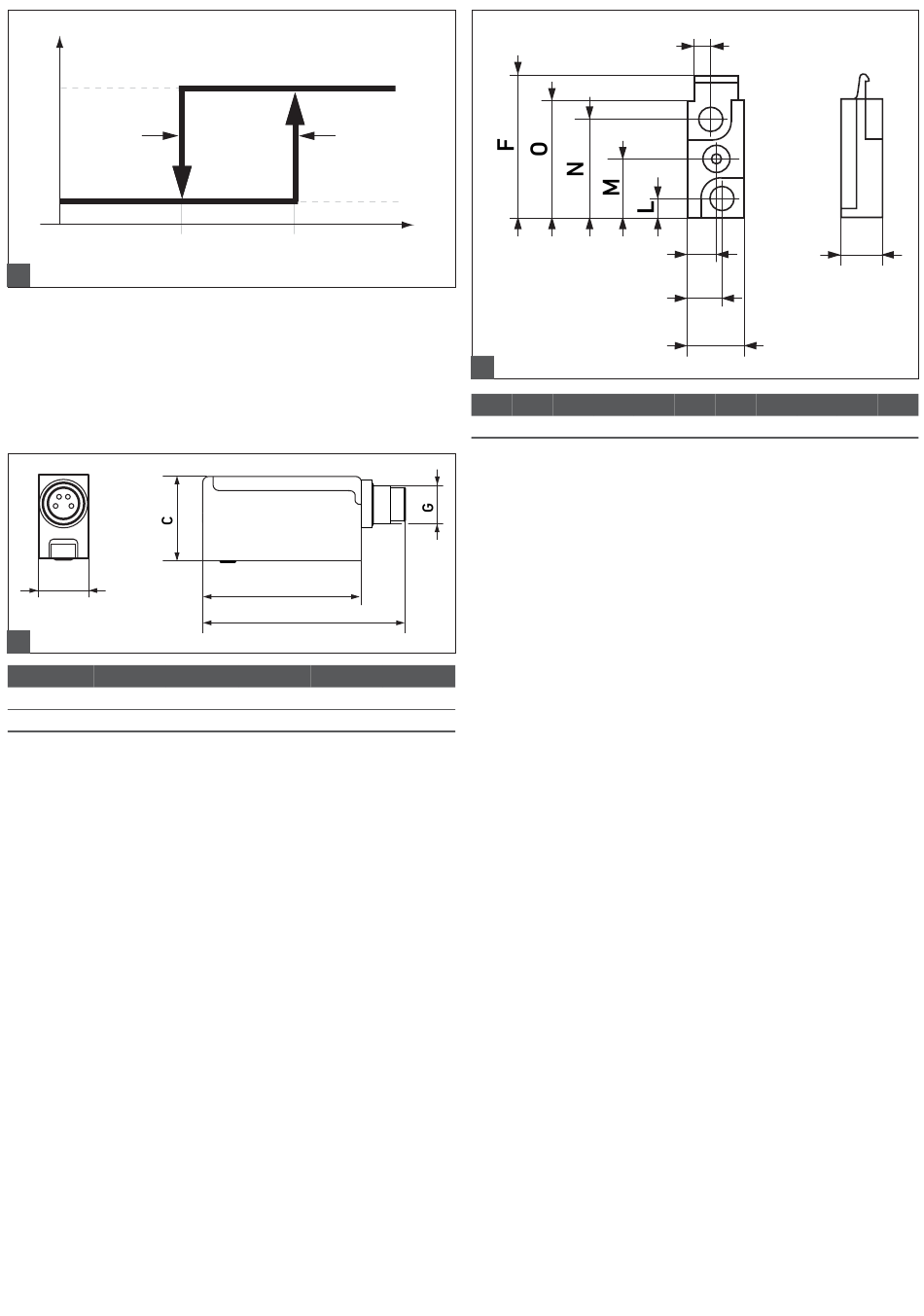

Abmessungen PE 6 (S1 = Schalter liegend, S2 = Schalter stehend)
PE 6 dimensions (S1 = switch horizontal, S2 = switch vertical)
Dimensions PE 6 (S1 = commutateur horizontal, S2 = commutateur vertical)
Dimensioni PE 6 (S1 = versione orizzontale, S2 = versione verticale)
Dimensiones PE 6 (S1 = interruptor horizontal, S2 = interruptor vertical)
Mått PE 6 (S1 = liggande brytare, S2 = stående brytare)
P u, P
SP
00129858
B
D
00129859
C D G
17.5 mm 43 mm M8
16.4 mm 48.1 mm M8
8
E F H I J
6.6 16.3 4.5 2.65 3.3
Abmessungen Flanschplatte (in mm)
Flange plate dimensions (in mm)
Dimensions de la flasque (en mm)
Dimensioni della piastra flangiata (in mm)
Dimensiones de la placa abridada (en mm)
Dimensioner flänsplatta (i mm)
I
H
K
E
00129860
K L M N O
3.95 2.25 6.75 11.25 13.5
P
2.7
