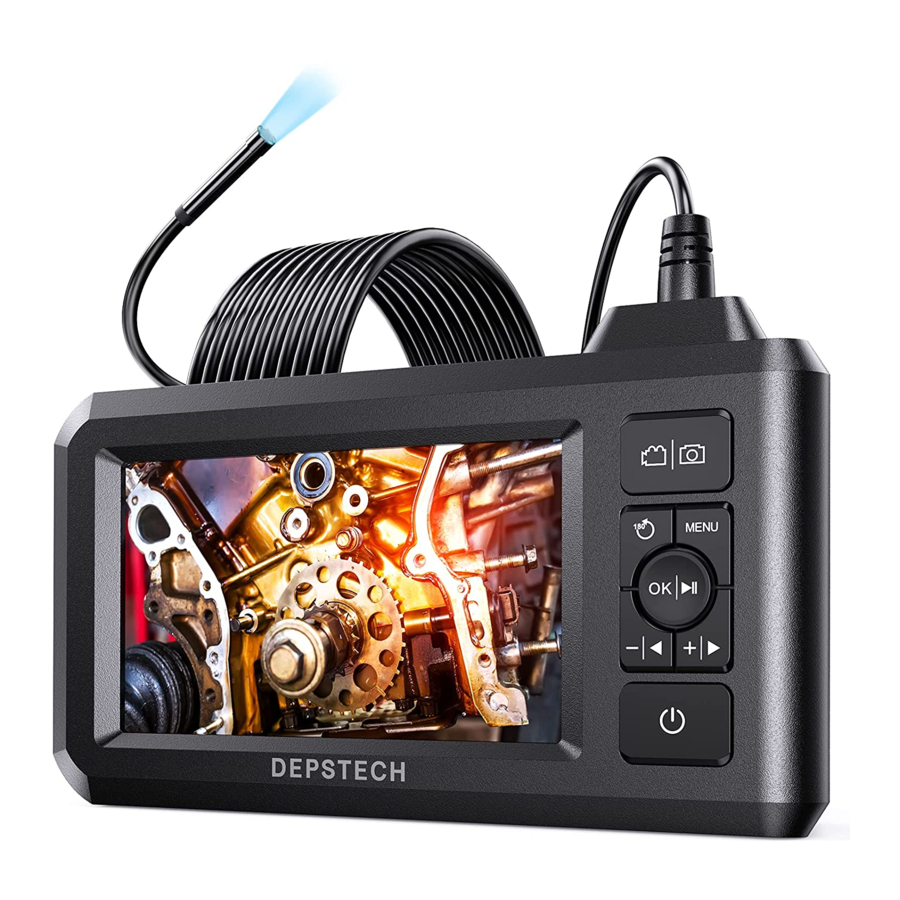

- Page 1 DS300 Industrial Endoscope User Manual...
- Page 2 You can find the Navigation on the Top – Click into Endoscope – Click into Video Endoscope – Roll and choose Model Number: DS300 – Click Download Button E-User Manual for the Any suggestions or customer service needs are warmly welcomed by us.
- Page 3 Quick Overview of Your New Endoscope! Power Button Hold this button for 2s to power on/off the endoscope. Photo Shoot/Video Record Button Hold this button to start video record, single press to take a photo/end the video record. “ ” Button Click to brighten the LED lights of the camera or move the cursor down.
- Page 4 Charging Status LED indicator TF Card Slot Support up to 32G TF card. (The TF card has been inserted into the machine, please format it for the first time of usage) Micro-USB Charging Port Charge the endoscope via Micro-USB cable. Reset Button Short click the reset button with the reset pin to shut down the device.
- Page 5 Q1: The image quality wasn't that good as advertised? A1: Please adjust the length between the camera and the object that you’re observing into the focal range. The focal range should be 1.96”~3.93” for single camera version, and 0.78”~3.14” in for dual camera version.
- Page 6 Specifications of DS300 Model DS300 FHD DS300 Dual Camera Screen Spec 4.3” Super LCD Screen Waterproof IP67 Rating for the Probe Camera Diameter 0.22 in 0.31 in 6 x LED 7 x LED Main cam: 1.2~3.9 in Best Focal Range 1.96~3.93 in...
- Page 7 EC REP 1: Like Sun GmbH EC REP 2: DST Co., Ltd. Planckstr.59, 45147 Essen, Germany Fifth Floor 3 Gower Street, London, WC1E 6HA, UK ec-connection@web.de www.dsteu.com Web: www.depstech.com E-mail: support@depstech.com Made in China...
- Page 8 Shenzhen Deepsea Innovation Technology Co., Ltd. Room 1901-1902, Jinqizhigu Building, No.1 Tangling Road, Nanshan District, 518055, Shenzhen, CN...
