Woodline PAPILLON Quick Start Manual

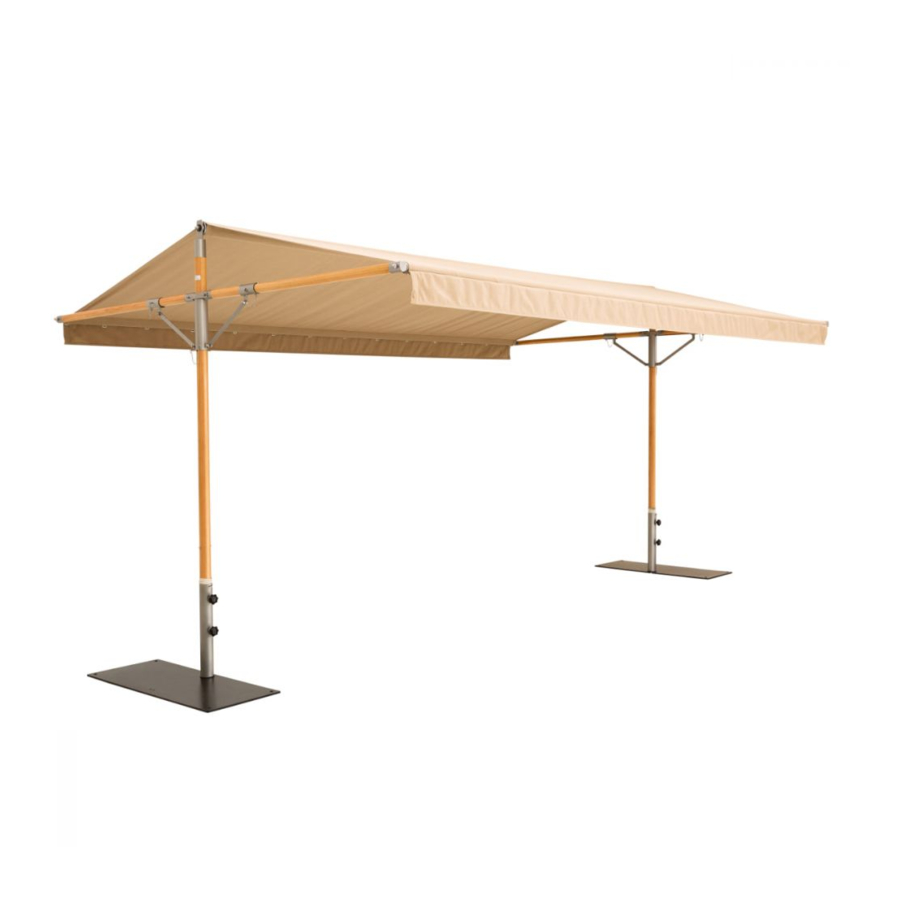

PAPILLON
EURO (WOOD & STAINLESS STEEL)
CONTEMPO (BEAD BLASTED STAINLESS STEEL)
MARINE (POLISHED STAINLESS STEEL)
1b
5
1a
4
3
1
Distributor:
Shadescapes Americas
TEL: 970.527.7070
www.shadescapesamericas.com
info@shadescapesusa.com
PROTRADE & WOODLINE cc. 2000
C
1b
9 11
10
8
7

REQUIRED TOOLS LIST

1 X SCISSORS
(NOT INCLUDED)
2 X ADJUSTABLE
CRESCENT WRENCH
(NOT INCLUDED)
6a
6
6b
2

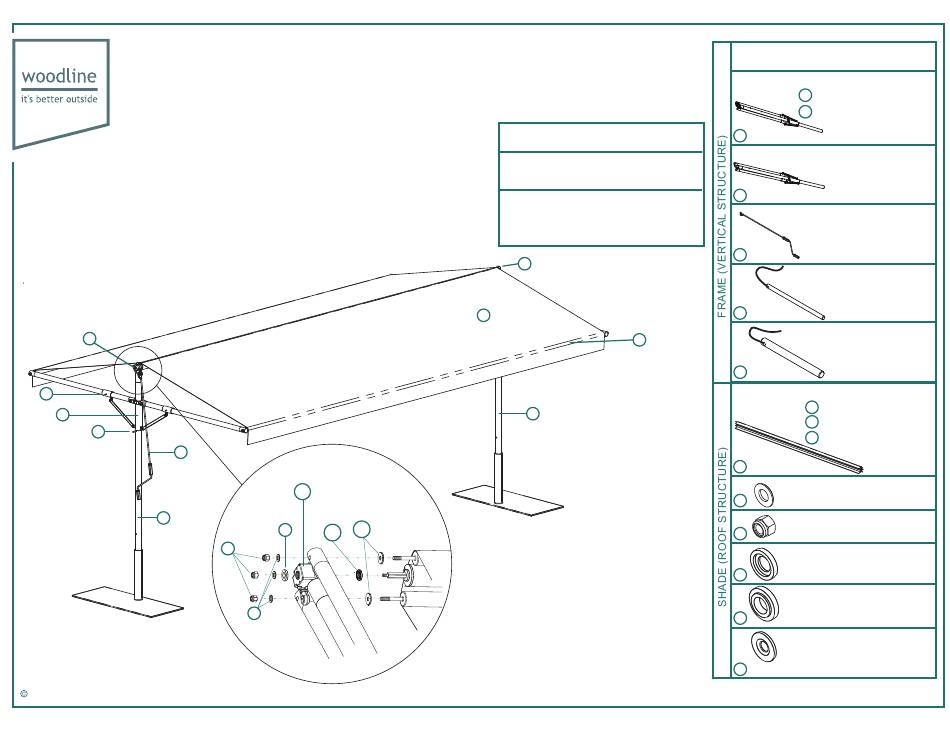

PARTS LIST

1 x VERTICAL STRUCTURE
1a VERTICAL RUNNER
GEARBOX
1b
Item Code: 05857
Item Code: 05857-S
1
Item Code: 05857-P
1 x VERTICAL
STRUCTURE
(with vertical runner)
Item Code: 05857
Item Code: 05857-S
2
Item Code: 05857-P
1 x CRANK HANDLE
3
Item Code: 07465
2 x CENTER PINS
(1/4" x 4 - 3/4" pin attached
to vertical runners on vertical
structures)
4
Item Code: 05792
4 x STABILIZER PINS
(1/4" x 2 - 1/2" pin attached
to horizontal runners on vertical
structures)
5
Item Code: 06801
1 x ROOF STRUCTURE
6 CANOPY
6a
CENTER ROLLER
SIDE ROLLERS
6b
Item Code:
3 x 4 m - 09550
6
3 x 5 m - 08558
6 x WASHERS M12
7
Item Code: 02193
6 x NYLOC NUTS M12
8
Item Code: 05242
1 x PVC WASHER WITH
RECESS
(FEMALE)
9
Item Code: 06109
1 x PVC WASHER
WITH SPIGOT
(MALE)
10
Item Code: 06108
6 x 1.5" STANDARD
PVC WASHERS
11
Item Code: 06110
1|6
