Quantec QT602 Wiring Instructions page 2

– + R G L+ SW
QT602D
SLAVE CALL POINT
(OPTIONAL)
Max. 3 slave call points or
ceiling pulls (any mix,
connected in parallel)
per master call point.
Local
+V
Switch
S
Red
R
QT607
CEILING PULL
(OPTIONAL)
ID RESET PINS (PLK2)
Short to clear the device's ID
number when powered.
RESET PINS (PLK4 on QT302RX only)
For resetting diagnostic calls only.
(on master)
REMOTE IR INPUT
L+ –
Do not use
QT302RXS
SLAVE IR RECEIVER
Max. 3 slave IR receivers
(connected in parallel)
per master ceiling
receiver/call point.
CONNECTION TO QUANTEC NETWORK
VIA ADDRESSABLE CALL POINT
QT423 CONFIG
CONNECTOR
(PLK1)
For optional special
programming
functions (requires
QT423A adaptor).
RESET
ID
{ {
– + R G L+ SW
MASTER
CALL POINT
(all variants)
IR
SET ID PINS (PLK3 on QT302RX only)
SLV
Slave Call
Short to give the QT302RX an ID when in
Input
assignment mode (once assigned, these
(on master)
pins can be used to make diagnostic calls).
R L+
SLAVE CALL INPUT
For the optional connection of
– + R G L+ SW
third-party switches and buttons.
QT602D SLAVE
CALL POINT
(OPTIONAL)
Max. 3 slave call points or ceiling pulls
(any mix, connected in parallel)
per master call point.
QT606S SLAVE
OVERDOOR
LIGHT
C/W SOUNDER
(OPTIONAL)
VOLUME
DISINT
+ –
QT606 SLAVE
OVERDOOR LIGHT
(OPTIONAL)
G Green light
R Red Light
– Network -Ve
– Network -Ve
+ Network +Ve
+ Network +Ve
+
–
The TOTAL number of slave
devices with confidence
LEDs across all of an
addressable call point's
inputs must not exceed 3.
Quantec
Wiring instructions for:
QT602 Addressable Call Points
QT602E Addressable Call Points
QT609 Addressable Call Points
QT302RX Master IR Ceiling Receivers
QT606 Slave Overdoor (OD) Lights
QT606S Slave OD Light c/w Sounders
QT607 Ceiling Pulls
QT302RXS Slave IR Ceiling Receivers
QT602D Slave Call Points

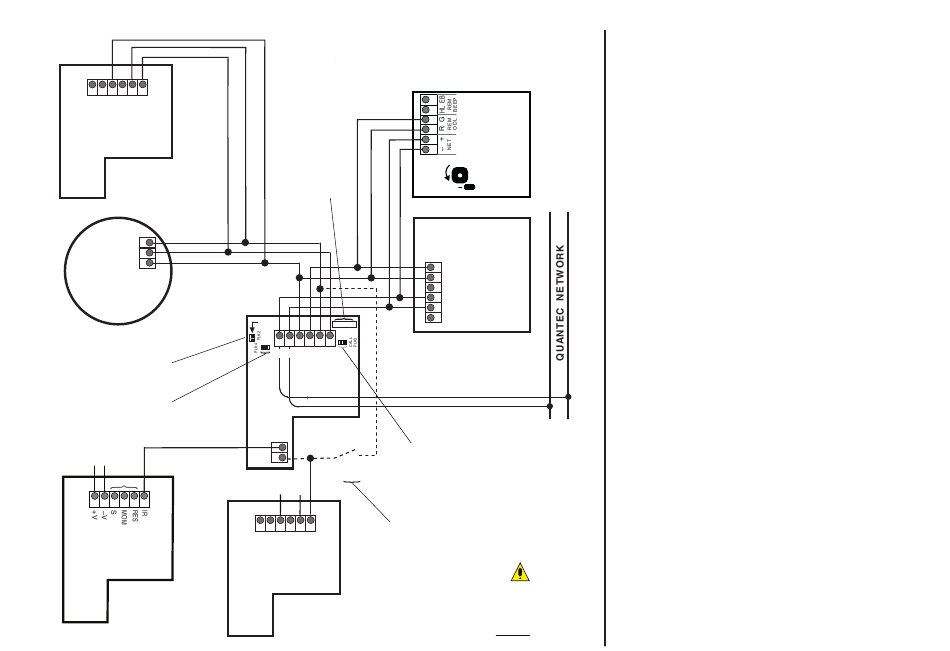

This instruction leaflet shows examples of two
common wiring methods for Quantec Addressable
Call Points/Ceiling Receivers (all variants) with
connections to typical slave devices. One method
is shown adjacent, the other appears overleaf.
For detailed wiring, installation and programming
information - including important compatibility
information relating to a master call point's optional
special programming functions - please refer to the
main Quantec Installation manual, document no.
DNU6012001.
Important note regarding IR devices:
Due to the high-risk environments in which infrared
devices are likely to be used, be sure to install
them so the best possible reception is achieved. If
in doubt, contact your supplier for advice.
Approved Document No. DNU6020001 Rev 7
