Quantec
Wiring instructions for:

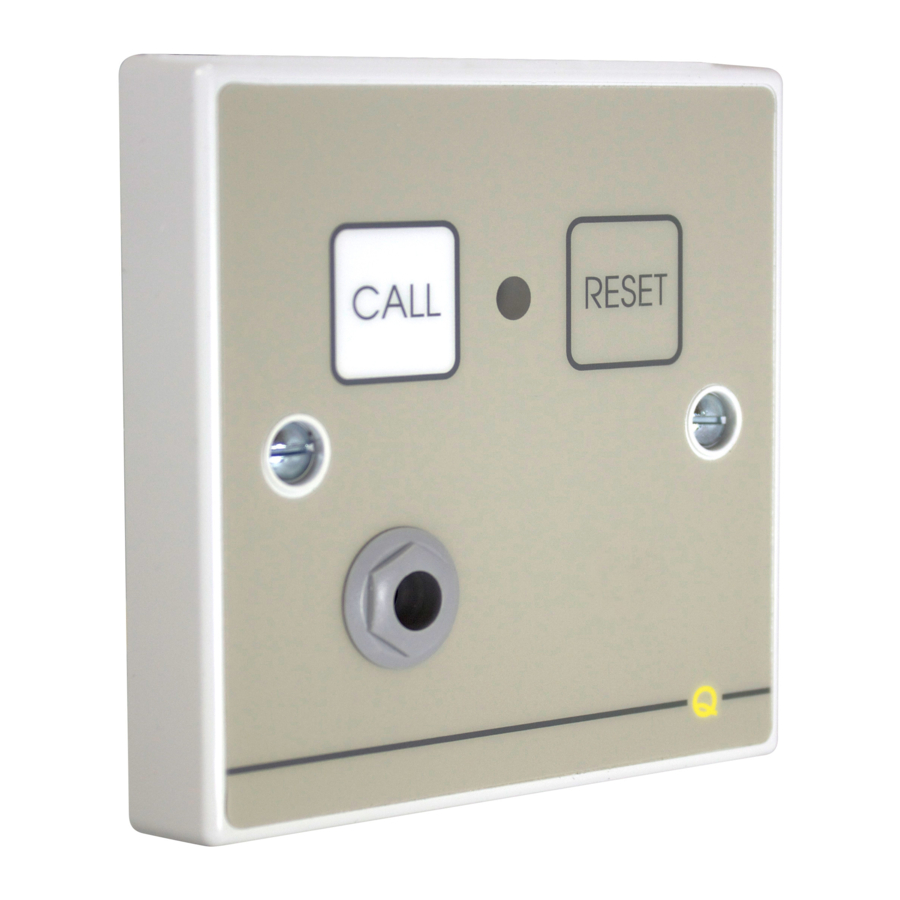

QT602 Addressable Call Points
QT602E Addressable Call Points
QT609 Addressable Call Points
QT302RX Master IR Ceiling Receivers
QT606 Slave Overdoor (OD) Lights
QT606S Slave OD Lights c/w Sounder
QT607 Ceiling Pulls
QT302RXS Slave IR Ceiling Receivers
QT602D Slave Call Points

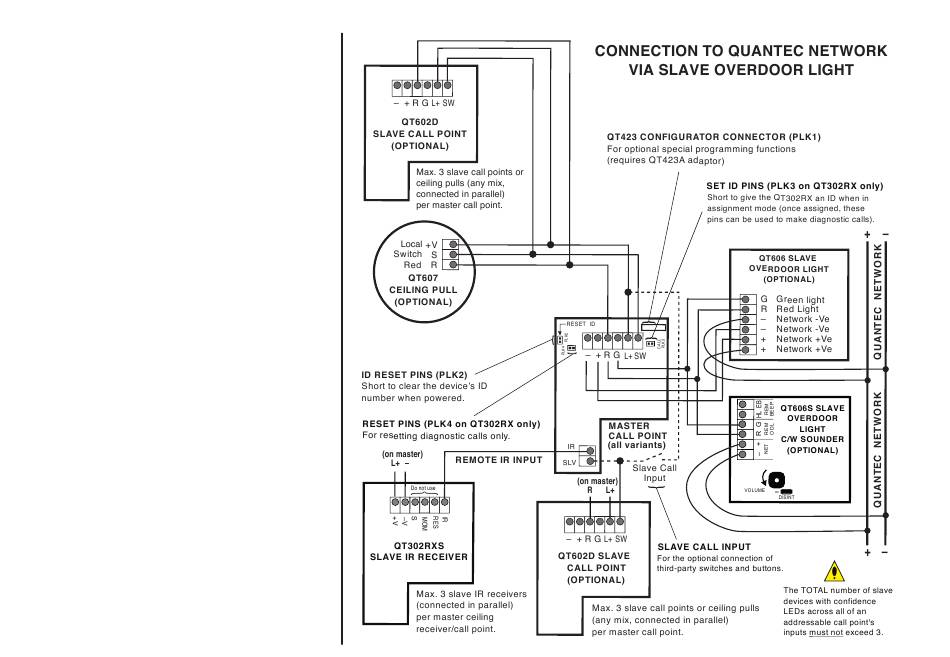

This instruction leaflet shows examples of two
common wiring methods for Quantec Addressable
Call Points/Ceiling Receivers (all variants) with
connections to typical slave devices. One method
is shown adjacent, the other appears overleaf.
For detailed wiring, installation and programming
information - including important compatibility
information relating to a master call point's optional
special programming functions - please refer to the
main Quantec Installation manual, document no.
DNU6012001.
Important note regarding IR devices:
Due to the high-risk environments in which infrared
devices are likely to be used, be sure to install
them so the best possible reception is achieved. If
in doubt, contact your supplier for advice.
Approved Document No. DNU6020001 Rev 7
Advertisement
Summary of Contents for Quantec QT602
- Page 1 QT302RXS Slave IR Ceiling Receivers QT602D Slave Call Points This instruction leaflet shows examples of two common wiring methods for Quantec Addressable Call Points/Ceiling Receivers (all variants) with connections to typical slave devices. One method is shown adjacent, the other appears overleaf.
- Page 2 + Network +Ve + Network +Ve This instruction leaflet shows examples of two RESET common wiring methods for Quantec Addressable Call Points/Ceiling Receivers (all variants) with – + R G L+ SW ID RESET PINS (PLK2) connections to typical slave devices. One method Short to clear the device’s ID...
