Impecca MBS110 User Manual

User Manual

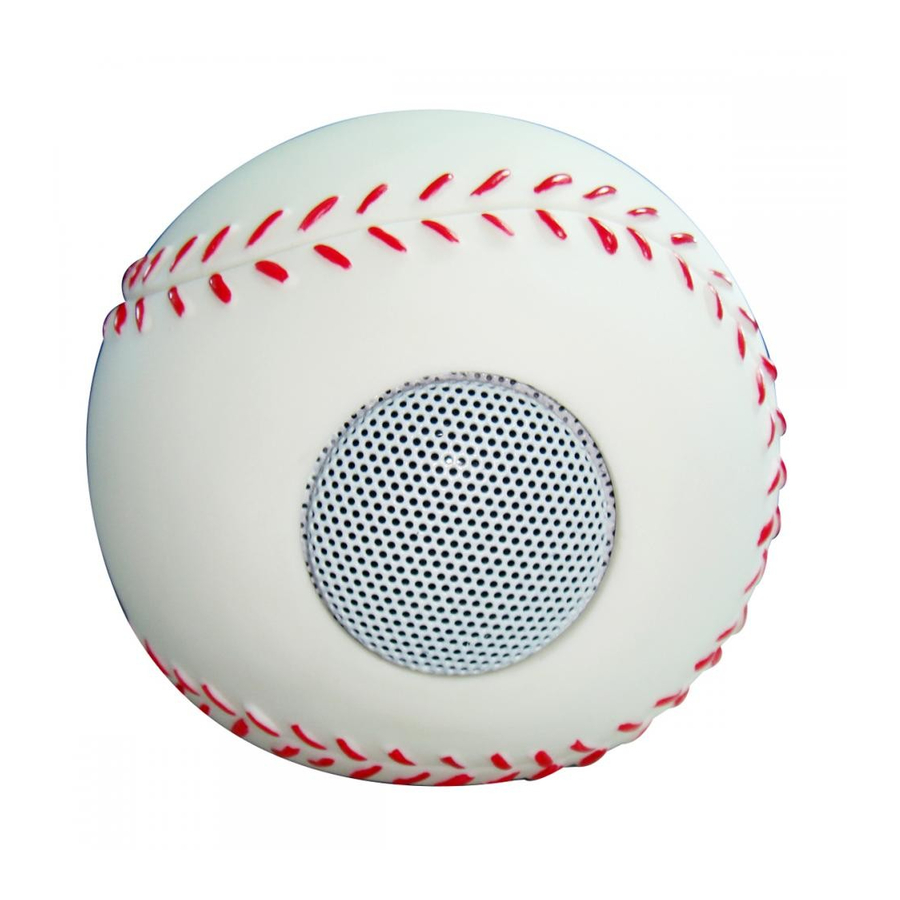

Baseball Speaker // Model N° MBS110
Thank you for purchasing this portable baseball
speaker! Please read through these instructions
carefully before using your product.
OVERVIEW:
Your portable baseball speaker uses a standard
3.5mm audio input and is compatible with the iP-
hone, iPod, and iPad as well as most MP3/MP4 play-
ers, phones, tablets, DVD players, laptops, and other
consumer electronic devices.
The baseball speaker is not a toy; playing with it or
hitting/striking it can result in damage and personal
injury. WARNING: Improper use and force may cause
the internal rechargeable battery to catch fire!
CONTENTS:
1 x Baseball Speaker
Accessories: 1x 3.5mm male/male audio cable,
1x micro USB charging cable, 1x user manual
OPERATING INSTRUCTIONS:
Power on/off: press the button located at the base
of the speaker. When the speaker is on, a red LED
will be visible.
Audio playback:
Insert the 3.5mm audio cable into your device (a MP3
player, for example), then plug the other end into the
round port on the speaker. Begin music playback.
Charging:
Plug the Micro USB cable into the port on the speaker
and the other end of the cable into a PC or compati-
ble 5V USB charger. The red LED will illuminate during
charging, even if the speaker is turned off. Note that the
USB port is not an audio input.
Audio port
On/off switch (on speaker base)
BATTERY RECOMMENDATIONS:
1. To maximize the battery life of your speaker, charge
the speaker for at least 8 hours before initial use.
2. After the initial charge, the battery will charge in in 3-4 hours.
SAFETY:
• For your safety, please
read this user's manual
prior to using this product.
• Do not use the speaker
improperly. Avoid strong
impact and shocks to the
product.
• Do not disassemble, repair,
or modify this product.
• An incorrectly replaced bat-
tery is a hazard that may
cause shock or explosion.
TROUBLESHOOTING:
I can't hear any music:
Verify all cable connections are secure, that the speaker is
on (the red LED should be illuminated), and that music is
playing back on your device.
The sound is distorted:
Verify the audio cable connections and lower the volume
on the playback device. In some cases, distortion may be
caused by interference while charging the speaker.
TECHNICAL SPECIFICATIONS:
Dimensions:
Power:
Input:
Output:
Frequency Response:
Speaker Driver Unit:
Sensitivity:
Signal to noise ratio:
Degree of distortion:
Operating temperature:
CONTACT TECHNICAL SUPPORT:
Email: service@impeccausa.com
Website: www.impeccausa.com
LED Indicator
USB
Charging Port
• This product must be used
at room temperature.
Avoid direct exposure to
sunlight and heat sources.
• This product is not a toy;
keep away from children.
• This product contains a
recyclable lithium bat-
tery. Contact your local
authorities for informa-
tion regarding proper
electronics disposal.
17.5 cm diameter
3.7V 450 mAh Rechargeable
Lithium-Ion battery
Charging via 5V micro USB
3W (10% THS)
100Hz~20KHz
2x 40mm
300~2000MV (RMS)
85db
≤0.2%
0~40°C
