REQUIREMENTS
Ready-to-Use Chemical Solution
Compressed Air
Minimum Air Supply Line
OPTIONS
Square Jug Rack Conversion
Specify Round or Square Jug Racks at time of order
5 Gallon Pail
Pail, 5 Gallon Round W/ Suction Stem
For Lighter Fog Use Metering Tips (4 Sets)
Metering Tips-Color Coded (10
Smallest)
Optional Check Valves to Keep Tubes Primed
Check Valve, Chemical, PP(W), 1/4"
(EPDM)
WEIGHT & DIMENSIONS
Single Package
Shipping Weight
Shipping Dimensions

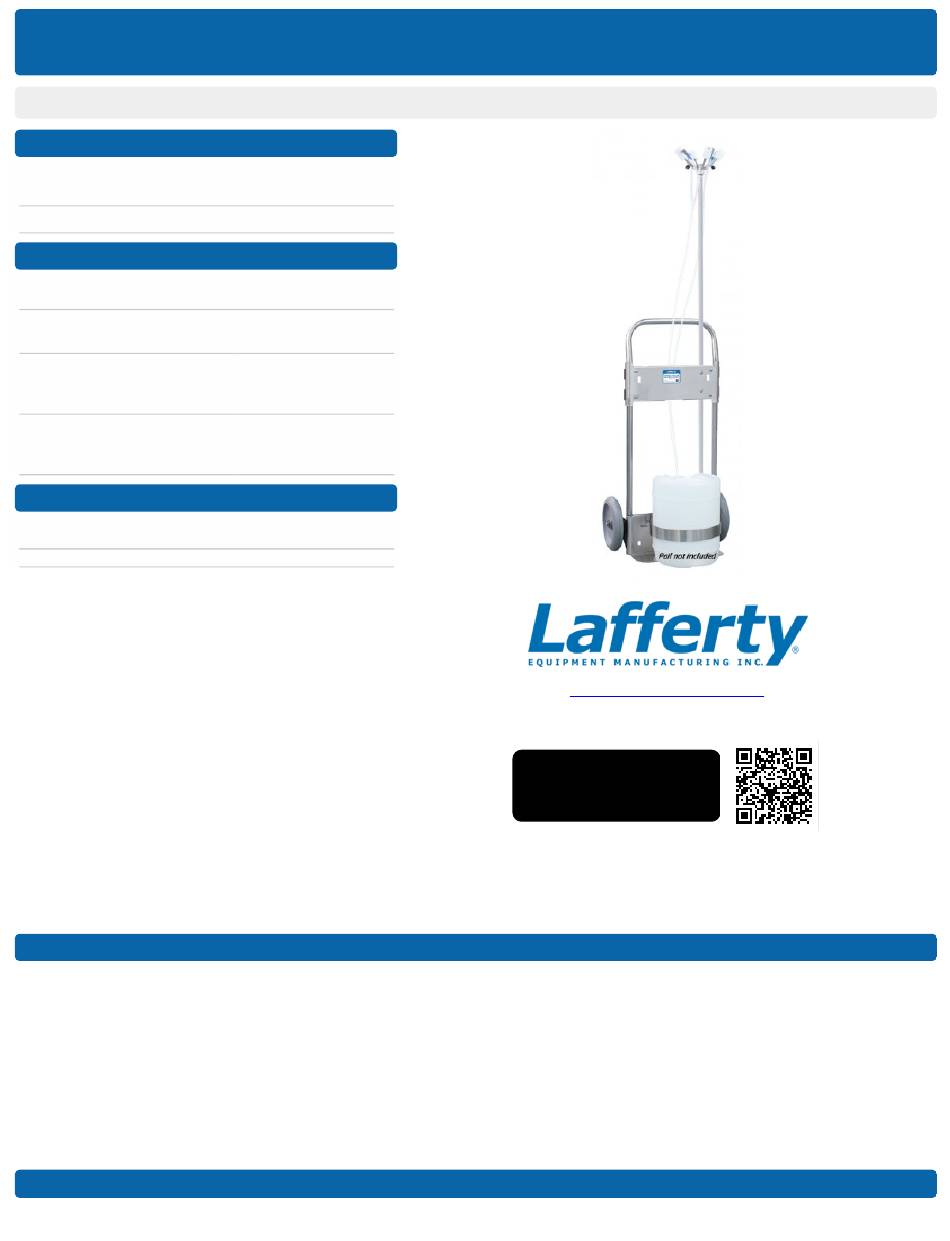

OVERVIEW
The Portable 5 Gallon 633 4-Way Fogger is a chemical atomizer that uses compressed air (15 CFM @ 80 PSI) and venturi action to draw ready-to-use chemical
solution from a user-supplied chemical pail on the all stainless steel cart. It will atomize the solution and project it as small to medium sized fog particles in 4 directions
up to 15 feet. This unit features a telescoping mast and can also be used as a 2-Way fogger.
Lafferty Equipment Manufacturing, Inc. • 5614 Oak Grove Road • North Little Rock, Arkansas 72118
Lafferty Equipment Manufacturing, Inc.
Installation & Operation Instructions
Model # 950700 · Portable 5 Gallon 633 4-Way Fogger
up to 15 CFM @ 80 PSI
1/2"
# 709105
# 443794
# 491401
41 lbs.
43" x 26" x 16"
www.laffertyequipment.com
501-851-2820
W A R N I N G ! R E A D A L L
I N S T R U C T I O N S B E F O R E
U S I N G E Q U I P M E N T !
Advertisement
Related Manuals for Lafferty 950700
Summary of Contents for Lafferty 950700
- Page 1 It will atomize the solution and project it as small to medium sized fog particles in 4 directions up to 15 feet. This unit features a telescoping mast and can also be used as a 2-Way fogger. Lafferty Equipment Manufacturing, Inc. • 5614 Oak Grove Road • North Little Rock, Arkansas 72118...
- Page 2 950700 • Portable 5 Gallon 633 4-Way Fogger SAFETY & OPERATIONAL PRECAUTIONS PORTABLE 633 4-WAY FOGGER Manufacturer assumes no liability for the use or misuse of this unit. PROJECT MEDIUM TO SMALL FOG Wear proper respiratory protection, protective clothing, gloves and eye-wear when working with chemicals.
- Page 3 950700 • Portable 5 Gallon 633 4-Way Fogger - Page 3 -...
-
Page 4: Troubleshooting Guide
950700 • Portable 5 Gallon 633 4-Way Fogger Troubleshooting Guide Possible Cause / Solution Problem Startup Maintenance A) Fogger will not draw chemical or is sputtering 1, 2, 3, 4 6, 7, 8, 9 B) Fog is too wet 1, 5... -
Page 5: Weight And Dimensions
It will atomize the solution and project it as light, "damp" fog particles in 4 directions up to 25 feet. This unit features a telescoping mast and can also be used as a 2-Way fogger. Lafferty Equipment Manufacturing, Inc. • 5614 Oak Grove Road • North Little Rock, Arkansas 72118... - Page 6 950701 • Portable 5 Gallon 305 4-Way Fogger SAFETY & OPERATIONAL PRECAUTIONS PORTABLE 305 4-WAY FOGGER Manufacturer assumes no liability for the use or misuse of this unit. PRODUCE MEDIUM FOG PARTICLES AND Wear proper respiratory protection, protective clothing, gloves and eye-wear when working with chemicals. PROJECT A LIGHTER, "DAMP"...
- Page 7 950701 • Portable 5 Gallon 305 4-Way Fogger - Page 3 -...
- Page 8 950701 • Portable 5 Gallon 305 4-Way Fogger Troubleshooting Guide Possible Cause / Solution Problem Startup Maintenance A) Fogger will not draw chemical or is sputtering 1, 2, 3, 4 6, 7, 8, 9 B) Fog is too wet 1, 5 Possible Cause / Solution Startup Maintenance...
- Page 9 It atomizes the solution and projects it as light, "damp" fog particles in 4 directions up to 25 feet. This unit features a telescoping mast and can also be used as a 2-Way fogger. Lafferty Equipment Manufacturing, Inc. • 5614 Oak Grove Road • North Little Rock, Arkansas 72118...
- Page 10 950721 • Portable 20 Gallon 305 4-Way Fogger SAFETY & OPERATIONAL PRECAUTIONS PORTABLE 305 4-WAY FOGGER Manufacturer assumes no liability for the use or misuse of this unit. PRODUCE MEDIUM FOG PARTICLES AND Wear proper respiratory protection, protective clothing, gloves and eye-wear when working with chemicals. PROJECT A LIGHTER, "DAMP"...
- Page 11 950721 • Portable 20 Gallon 305 4-Way Fogger - Page 3 -...
- Page 12 950721 • Portable 20 Gallon 305 4-Way Fogger Troubleshooting Guide Possible Cause / Solution Problem Startup Maintenance A) Fogger will not draw chemical or is sputtering 1, 2, 3, 4 6, 7, 8, 9 B) Fog is too wet 1, 5 Possible Cause / Solution Startup Maintenance...
- Page 13 2-Way fogger. An adjustable delay timer (up to 6 hours) allows the unit to be set to fog at a later time, and an adjustable run timer controls the length of time the unit will be fogging (up to 60 minutes). Lafferty Equipment Manufacturing, Inc. • 5614 Oak Grove Road • North Little Rock, Arkansas 72118...
-
Page 14: Setting The Timer
950721-TD • Portable Timed / Delay 20 Gallon 305 4-Way Fogger SAFETY & OPERATIONAL PRECAUTIONS PORTABLE 305 4-WAY FOGGER See Additional Safety Precautions included with the Electrical Control Box Installation Information PRODUCE MEDIUM FOG PARTICLES AND Always consider electrical shock hazard when working with and handling electrical equipment. If PROJECT A LIGHTER, "DAMP"... - Page 15 950721-TD • Portable Timed / Delay 20 Gallon 305 4-Way Fogger - Page 3 -...
- Page 16 950721-TD • Portable Timed / Delay 20 Gallon 305 4-Way Fogger Troubleshooting Guide Possible Cause / Solution Problem Startup Maintenance A) Fogger will not draw chemical or is sputtering 1, 2, 3, 4 8, 9, 10, 11 B) Fog is too wet 1, 5 C) Doesn't come on when switch is turned on.
