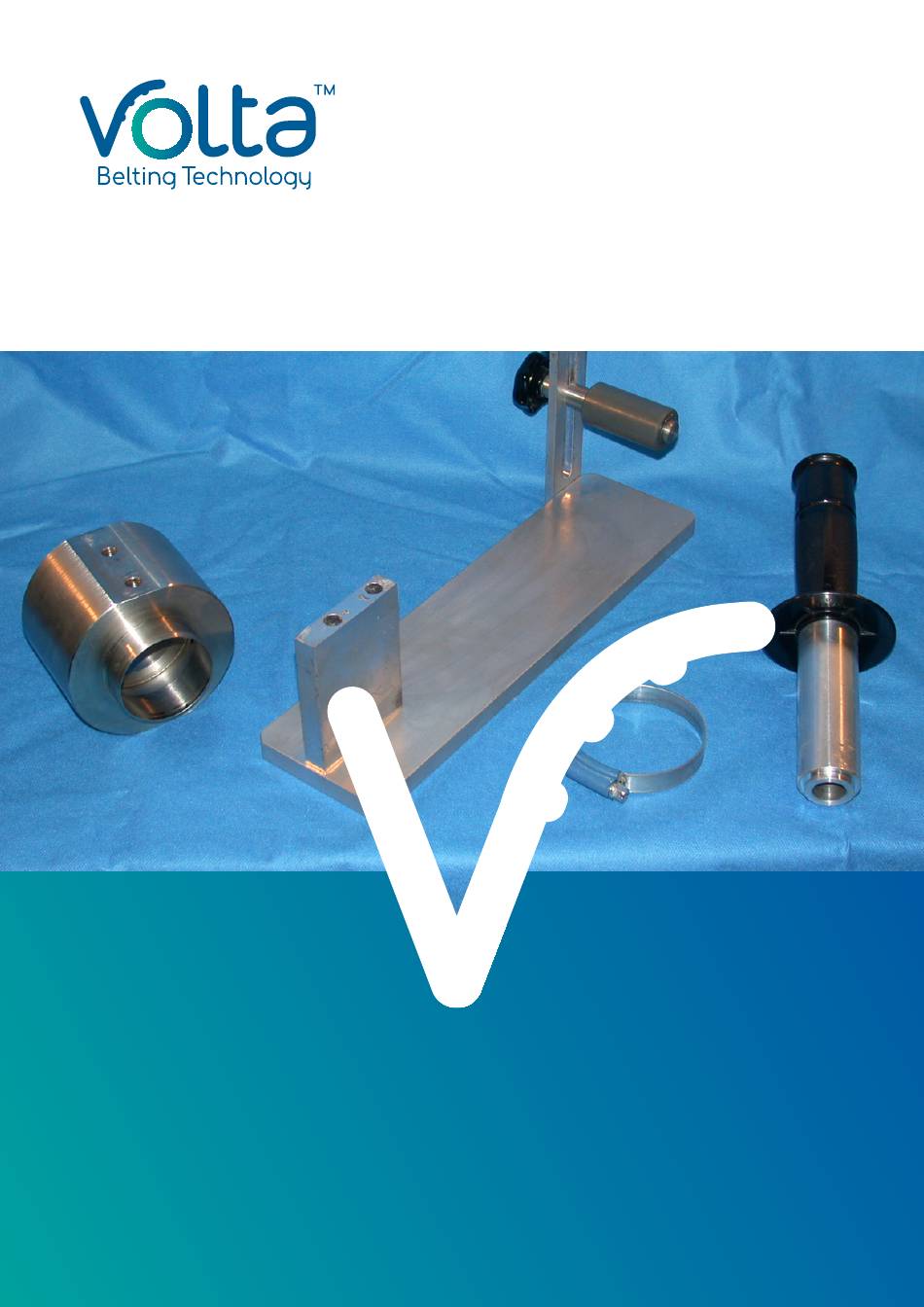

- Page 1 The Next Step in Belting Welding & Fabrication Tools Sleeve Mounting System Instruction Manual...
- Page 2 Welding & Fabrication Tools - Sleeve Mounting System VOLTA Sleeve Mounting System The VOLTA Sleeve Mounting System can be used to mount VOLTA Sleeves on rollers of most lengths found in industry. The VOLTA Sleeve Mounting System is depicted here and consists of: 1. Sleeve Mounting Adapter-designed for use with a specific O.D. sleeve. Sleeve Mounting Jig Roller support Push bar Hose clamp Note: The Sleeve Mounting Adapter(1) can be mounted in a vice instead of the sleeve jig.
- Page 3 Mounting the sleeve The first step is to cut the sleeve for the roller. Cut the sleeve approximately 10 cm longer than the roller. WARNING: Do not attempt to mount the roller in a sleeve that is bent. The sleeve MUST be cut to the correct length before attaching to the Mounting Adapter. The system uses air pressure and can force the push bar back out towards the technician possibly causing injury. Place the hose clamp on the sleeve and mount the sleeve over the lip of the mounting Adapter(1a) using a flathead screwdriver.
- Page 4 Welding & Fabrication Tools - Sleeve Mounting System Insert the roller in the mounting adapter. You will feel slight resistance to the roller as it is placed in the jig. This is because of the rubber seal. Push the roller until it is in contact with the inside of the sleeve. You will feel extreme resistance at this point and the roller cannot be pushed further into the adapter.
- Page 5 Loosen the hose clamp and pull the covered sleeve off of the mounting adapter. Trim the excess sleeve material. The VOLTA Sleeve Mounting System can be used to mount VOLTA Sleeves on rollers of almost any length. www.voltabelting.com | 5...
- Page 6 Tel. +31 546 580166 Sales and Manufacturing Toll Free. 1-877-VOLTAUS voltaeu@voltabelting.com sales@voltabelting.com voltaus@voltabelting.com Volta Belting makes no warranty with respect to any of its products Copyright Volta Belting Technology Ltd. © www.voltabelting.com for a particular purpose. See Volta General Terms and Conditions.
