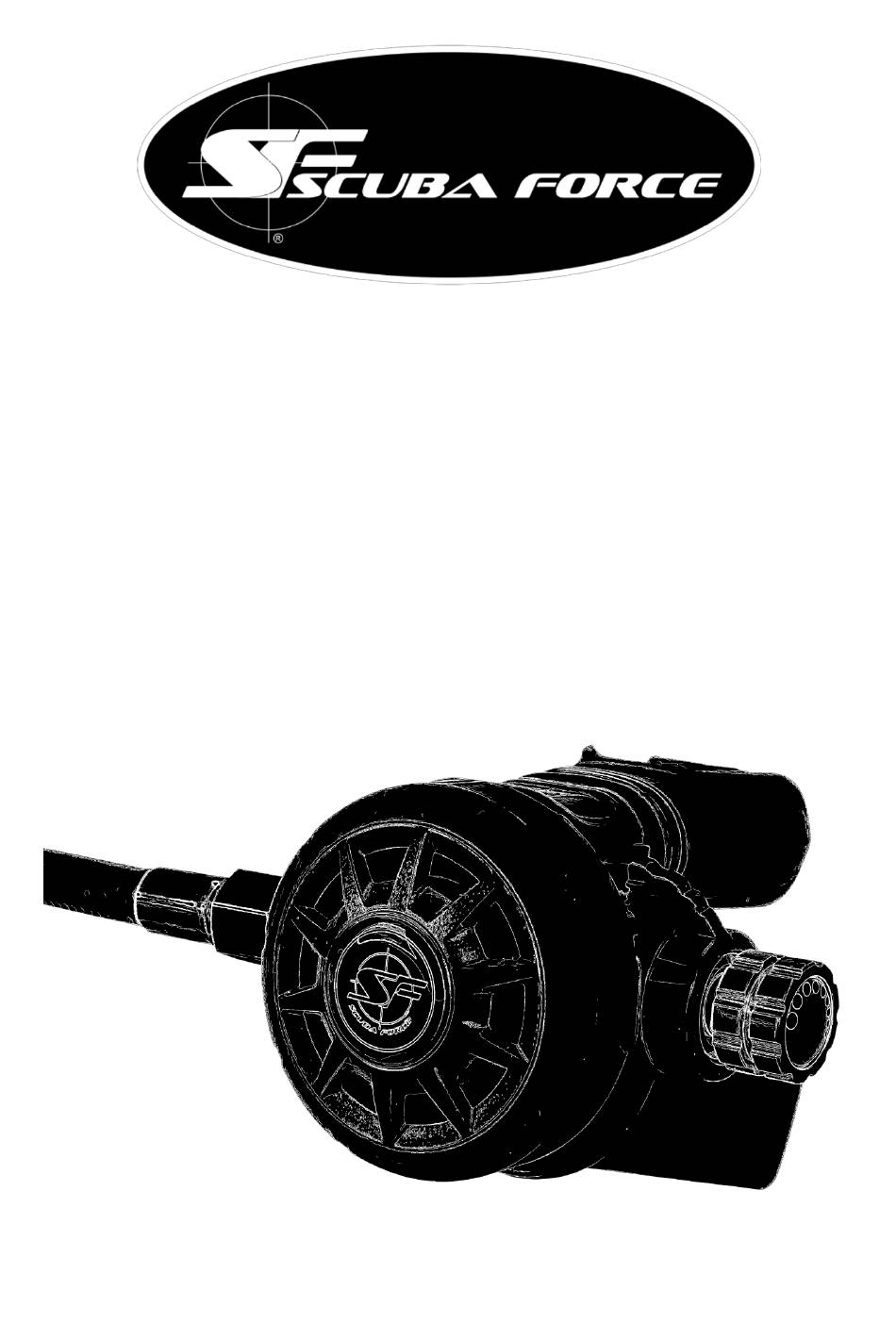

- Page 1 BLACK DEVIL SERIES REGULATOR MANUAL...
- Page 2 REGULATOR MANUAL Copyright All Rights and technical changes reserved. Copying,Translating and photocopying requires an angreement with SCUBA FORCE beforehand. Feel free to use the Regulator after you read the User-manual carefully. Warnings, Care-signs and annotations Pay close attention to all given Information marked with Warnings, Care-signs and...
-
Page 3: Contents Of The Manual
REGULATOR MANUAL CONTENTS OF THE MANUAL General cautions and warnings Introduction Usage of Nitrox (EAN) in european countries Overview of features and functions Setting possibilities outside on your second stage Venturi-Setting Knob for the inhalation resistance Protection of the first stage against environmental influences Additional emergency breathing systems Preperation and installation of your regulator ... -
Page 4: General Cautions And Warnings
(Alternative air supply, Octopus)is the right choice of your equipment required. Every device marked with EN250A is elligible for an Octopus system. SCUBA FORCE first stages have to be combined with a EN250:2014 certified Pressure display. Version: 2019-I-2... - Page 5 REGULATOR MANUAL INTRODUCTION Congratulations and thank you for chosing a SCUBA FORCE regulator. Your new regulator was crafted with greatest care. Constant inspections and checks ensure our constant and high quality. If your new regulator was delivered by an authorized SCUBA FORCE specialist dealer you as first owner of the product gain 2 years waranty.
- Page 6 REGULATOR MANUAL Usage of Nitrox (EAN) in european Countries The regulator you use was made for usage of clean, compressed atmospheric air. (21% Oxygen and 79% nitrogen). The air has to meet the requirements of the european standard EN 132, attachment A. Do not use your equipment with other gasses or oxygenated gas mixtures with a higher proportion of Oxygen than 21%.
-
Page 7: Overview Of Features And Functions

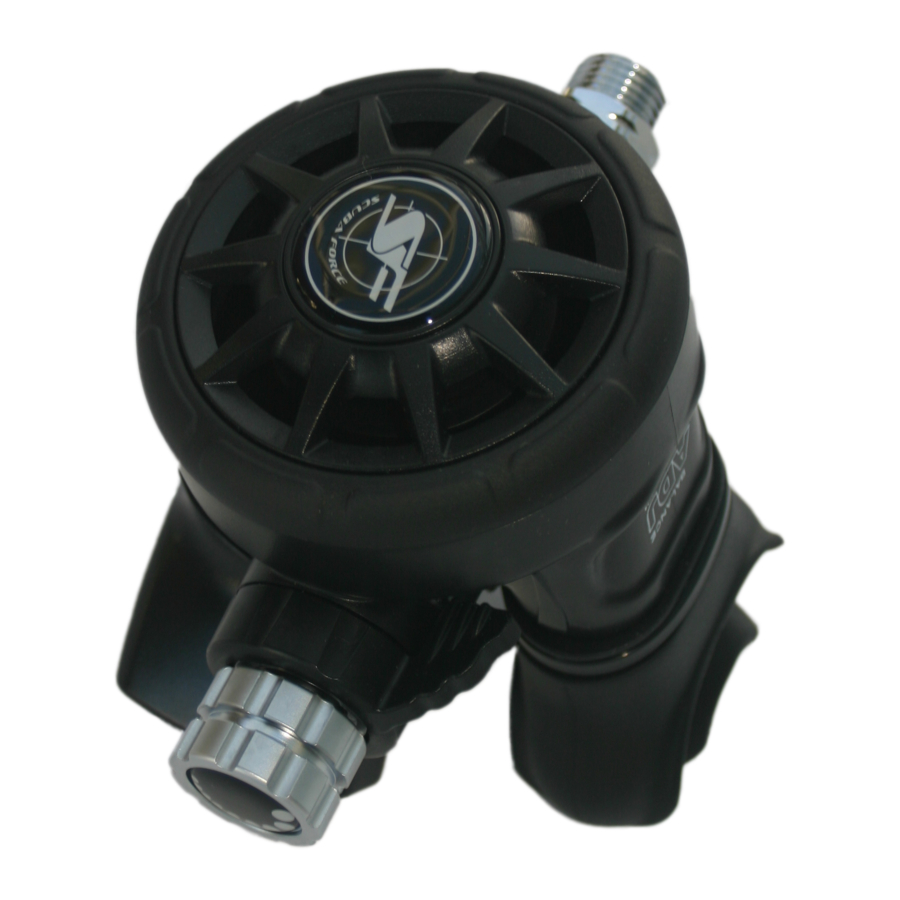

REGULATOR MANUAL Overview of features and functions The SCUBA FORCE regulator family consists of three different first stages and one second stage which will be delivered in 2 different variants. Our regulator line clearly focusses on the advanced and technical divers who make no compromises. your specialized dealer has explained the differences between our variants and you decided which one to buy. - Page 8 Venturi-Setting The SCUBA FORCE second stages are equipped with a Venturi- Support. The Venturi lever is located on the left side, opposite the hose connection and helps with a bigger airflow after you started breathing in.
- Page 9 REGULATOR MANUAL Knob for the inhalation resistance The second stage of our Black Devil is also equipped with a inhalation-resistance knob. The knob is right next to the Venturi lever and it regulates the breathing effort which you have to make to start the airflow. If you turn the knob clock-wise the resistance increases.this means, that the second stage will be less sensible towards sudden changes of environmental pressure.
- Page 10 REGULATOR MANUAL The Black Devil 2nd Stage disposes a heat exchanger for a better performance in cold water. Its position is right behind the hose connection. A big bubble softer and an ergonomic mouthpiece enhance the comfort while diving. Version: 2019-I-2 Page 10 of 33...
- Page 11 REGULATOR MANUAL Protection of the first stage against environmental influences When diving in cold or dirty water every first stage product made my SCUBA FORCE owns a membrane that covers the membrane chamber and protects it from unwanted outer influences.
- Page 12 That is the reason why our SCUBA FORCE Octopus is built identical to the primary second stage. The only difference between them is the colour. The Octopus is yellow so its easier to find in emergencies.
- Page 13 REGULATOR MANUAL WARNING: Regulators and equipment subject to limits of uses if they are used in connection with emergency breathing systems and the Octopus as well as when air is shared through the alternative air supply or through alternate breathing. You increase the risk of serious injuries or death.
- Page 14 Hose Installation SCUBA FORCE recommends a hose installation (high pressure and medium pressure) with their acessories by a SCUBA FORCE specialist dealer. Your dealer can also give advises regarding equipment configurations and more. If you can not get your regulator to your dealer you can do the installation yourself. However you need to follow the steps below.
- Page 15 The hoses are installed with a matching spanner. Again, only little exertion. SCUBA FORCE recommends, if you install accessories like inflator hoses, instruments or alternative air supplies to contact your specialist dealer. Your SCUBA FORCE specialist dealer might be able to answer questions you got while reading this manual.
- Page 16 The hose is tightened slightly using a wrench. Make sure you dont put on too much pressure otherwise you could damage the second stage. If you are unsure and insecure with your assembly, contact your SCUBA FORCE specialist dealer. He can carry out the procedure properly and professionally.
- Page 17 REGULATOR MANUAL Installing the first stage onto the high pressure bottle (DIN) WARNING: Make sure you open the bottle valve slowly to prevent explosions. If opened too fast the bottle can explode and cause serious injuries or death. The use of oxygenated air is only permitted if in combination with special equipment (bottle/regulator authorizedIf you open the bottle too fast you can damage the first stage.
-
Page 18: Diving With Your Regulator
It should be easy to screw on the first stage. If it is not easy, the bottle valve might be damaged. SCUBA FORCE first stages give tons of configuration possibilites for single and double devices. The first stage can be installed in different positions, Dependend on the prefered configuration. - Page 19 WARNING: Deep-diving requires special training and equipment. It also increases decompression sickness and other diver sicknesses. SCUBA FORCE is not an advocate when diving deeper than 40 M (130 feet) or diving sessions that pass the given no deco limits. Version: 2019-I-2...
-
Page 20: Diving In Cold Water
7. Avoid (as much as you can) alternating between regulators. In ermegencies offer up your second regulator. WARNING: SCUBA FORCE regulators have usage limits when diving in water with a temperature below 10ºC. if you try to dive in cold water without neccessary equipment or training you risk injuries or your own death. - Page 21 REGULATOR MANUAL After your diving session ANNOTATION: Wash out your regulator with freshwater before removing it from the bottle valve and releasing the pressure. This process prevents dirt deposits on the sealing surfaces. Removing the regulator from the bottle valve (DIN) 1.
-
Page 22: Maintenance And Storage
Maintenance and storage It is important to practice appropriate preventative care and storage in order to get the best possible performance and maximum life duration for your SCUBA FORCE regulator. The following care instructions should be carried out routinely after each use so that the regulator is cleaned, checked andprepared for storage or the next use. - Page 23 Do not press the air shower button while immersing if your regulator is not pressurized. Pressing the air shower button at this point causes moisture to penetrate and requires maintenance my your SCUBA FORCE Dealer.. 6. Wipe your regulator as dry as possible and hang it on the first stage so that the remaining liquid from the second stage can drain off.
-
Page 24: Service And Repairs
SCUBA FORCE dealer. Your device also needs this service more often if you have a higher level of use. The service frequency also depends on the environmental conditions under which it is used. -
Page 25: Disclaimer Of Liability And Warranty
The device is subjected to these operating instructions for all possible uses as well as the additional options for use confirmed in writhing by SCUBA FORCE 2. In the event of improper maintenance (service) of the device or failure to observe the operating instructions, the owner assumes full liability fort he functionality of the device. -
Page 26: Warranty Information
In the event of a warranty claim-i.e usually a factory fault – your warranty claims can only be made with an authorized SCUBA FORCE specialist dealer and only processed by a SCUBA FORCE specialist dealer. Furthermore, we would like to... -
Page 27: Warranty Requirements
7. If the guarantee is longer than 12 months, the claim will be forfeited if the product is not subjected tot he annual inspection. Visit the homepage of SCUBA FORCE. www.scubaforce.eu. The contact adresses can also be found there Version: 2019-I-2... - Page 28 REGULATOR MANUAL Markings and abbrevations Regulators, that are NOT designed for a use in cold water have the marking „>10°C” on the first stage aswell as on the second stage. Regulators, that are made for the Octopus are marked with EN250 followed by an „A“. EN250A If a regulator is labeled with „>4°C“...
- Page 29 REGULATOR MANUAL Combinations TWIN TEC SET I RECR. REGULATOR SET I TWIN TEC SET II RECR. REGULATOR SET II TWIN TEC SET III RECR. REGULATOR SET III Version: 2019-I-2 Page 29 of 33...
- Page 30 REGULATOR MANUAL Annotations Version: 2019-I-2 Page 30 of 33...
- Page 31 REGULATOR MANUAL 16. Annotations Version: 2019-I-2 Page 31 of 33...
- Page 32 REGULATOR MANUAL Regulator Service- MODELL_____________________DATE OF PURCHASE: __/__/____ SERVICE DATE: __/__/____ SERVICE BY: _________________________________ CHANGED PARTS: _________________________________ _______________________________________________________ SERVICE DATE: __/__/____ SERVICE BY: _________________________________ CHANGED PARTS: _________________________________ _______________________________________________________ SERVICE DATE: __/__/____ SERVICE BY: _________________________________ CHANGED PARTS: _________________________________ _______________________________________________________ SERVICE DATE: __/__/____ SERVICE BY: _________________________________...
- Page 33 REGULATOR MANUAL SCUBA FORCE A brand of dive2gether.net Tauchsport GmbH Reststrauch 197 41199 Mönchengladbach Tel.: +49 (0) 2166 1456880 eMail: mail@scubaforce.eu www.scubaforce.eu Version: 2019-I-2 Page 33 of 33...
