mods4cars product manual
INSTALLATION

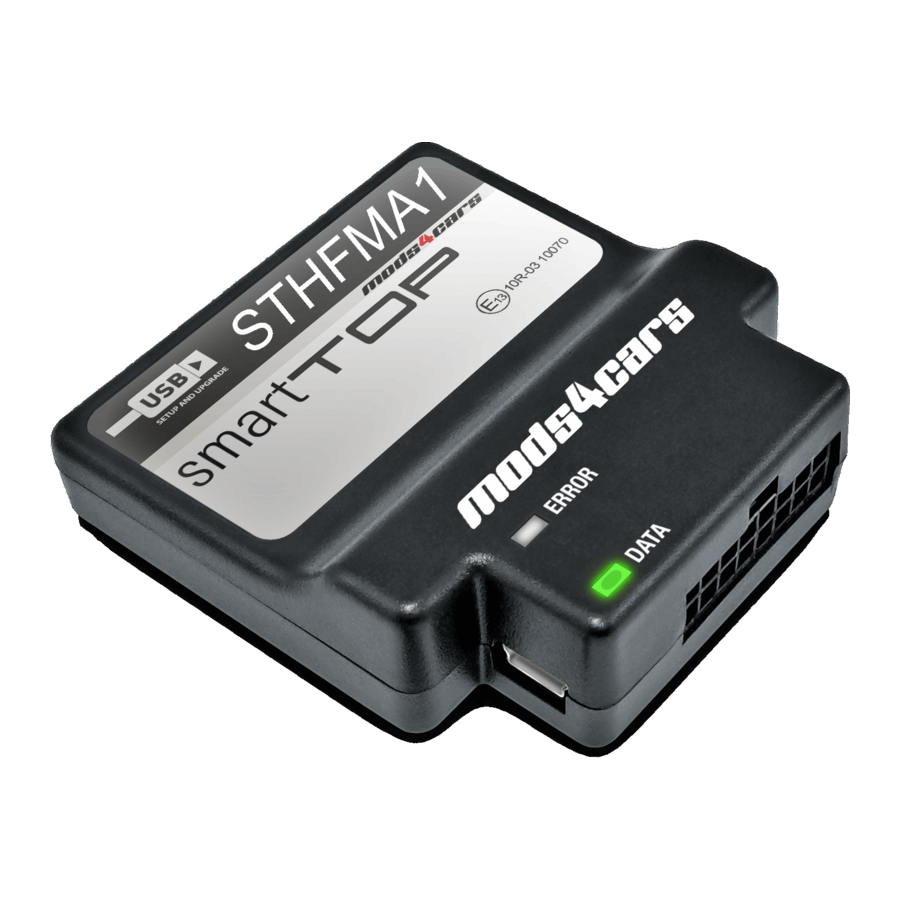

STHFMA1
Comfort Roof Control Module for
Mazda MX-5 PRHT
v1.0
Further information and manuals for all products can be found on our web site
w w w . m o d s 4 c a r s . c o m
We explicitly point out that all functions of this control unit should be
used only while exercising caution and responsibility. We can NOT be
held liable for any damage or injury caused by installing or using this
product.
PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING
THIS PRODUCT.
https://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/mazda/STHFMA1/install/en.php
1/5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for mods4cars smartTOP STHFMA1
Summary of Contents for mods4cars smartTOP STHFMA1

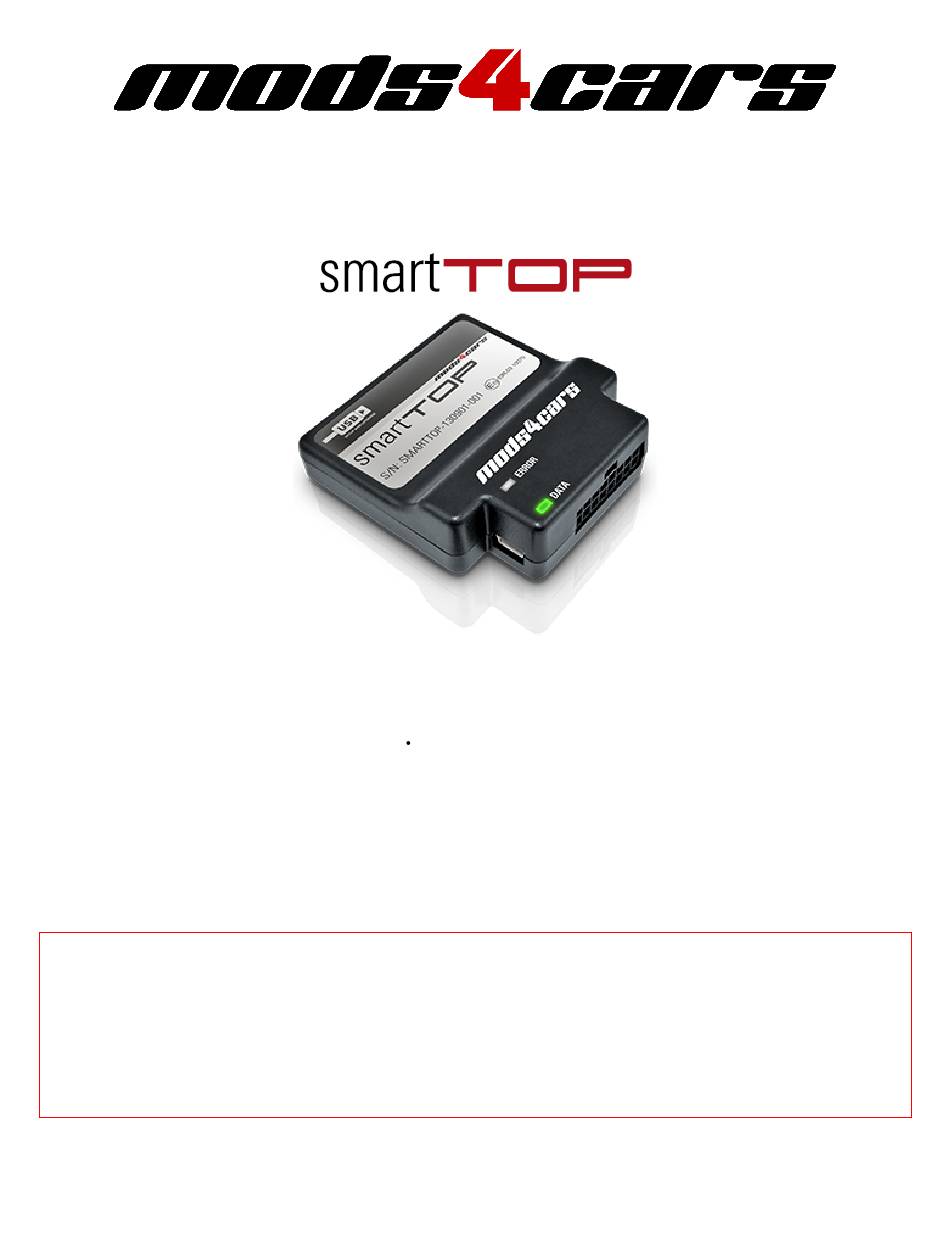

- Page 1 10/19/2020 mods4cars product manual INSTALLATION STHFMA1 Comfort Roof Control Module for Mazda MX-5 PRHT v1.0 Further information and manuals for all products can be found on our web site w w w . m o d s 4 c a r s . c o m We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility.
- Page 2 10/19/2020 mods4cars product manual Important Information. READ BEFORE INSTALLING! PRINTING THIS MANUAL This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers.
- Page 3 10/19/2020 mods4cars product manual IMPORTANT TROUBLESHOOTING TIPS If the top does not work properly or at all after installing the module, these tips can be very helpful: • 1) Turn Function 1 (Main Switch) off (Setting 0). The module will be completely passive. If the problem still persists and the top won't work, check all connections.
- Page 4 10/19/2020 mods4cars product manual Installation - Steps 1-3 1. Open the convertible top for better access. IMPORTANT: Turn off ignition and pull key out before continuing! Open the cover behind the driver's seat (left side of the car) as shown. Use a flat screw driver or any flat object like a coin to pry it out on the top.
- Page 5 10/19/2020 mods4cars product manual Installation - Step 4 4. Connect the smartTOP plug (1) to the top controller, then connect the smartTOP module to the harness. Turn the ignition on. A rapidly blinking green LED (2) will indicate proper installation. Lastly, program the module as desired, according to the operation manual.
