Energy Metering LSI for multi phase, high accurate application
"
Suitable for three phase, 3 wired or 4 wired
energy metering or energy monitoring application
"
Provide less than 0.1 % active & reactive energy
error over a dynamic range of 1000 to 1,
compatible with IEC 0.5S
"
Provide instantaneous active power, reactive
power and apparent power
"
Provide voltage RMS, current RMS, voltage
instantaneous value, current instantaneous value
and power factor in each phase.
"
Provide less than 0.5 % voltage RMS, current
RMS and power factor error
"
Provide very accurate 90 degree phase shifter over
45Hz to 65Hz input frequency range, which is
used for reactive power calculation
"
Provide minute input voltage monitoring function
Wide phase adjust. range between V & I (11 °)
"
"
Provide positive and negative power indication
"
Built-in temperature sensor
"
Single power supply (3 V or 5V)
"
48LQFP
Φ Φ
MS1285-E-00
V
Φ
- 1 -

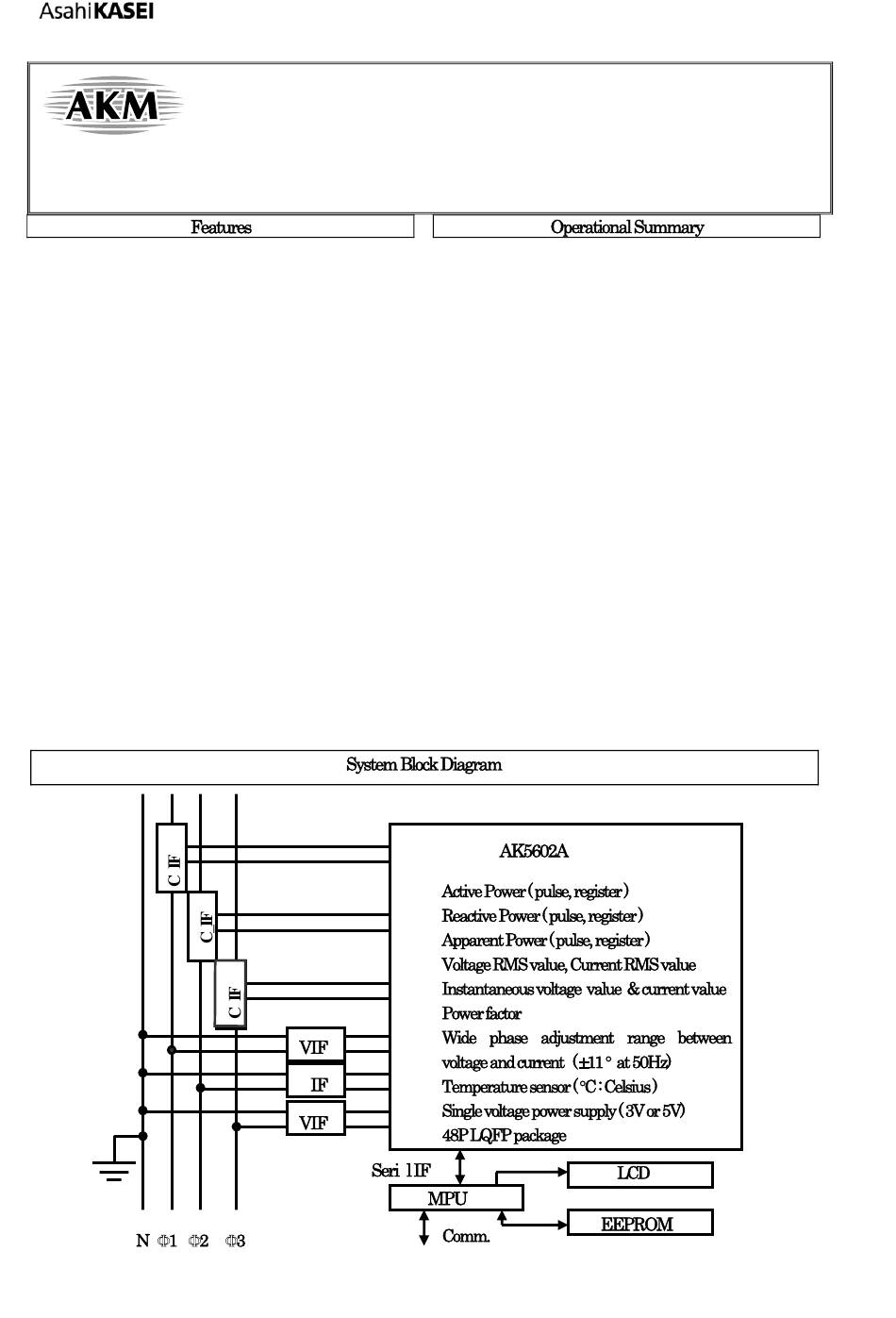

AK5602A is one of the most advanced and functional
LSIs for multi phase energy measurement.
Current and voltage signals through CT, Hall sensor, or
Shunt Resistors are converted into digital signal with
18bit ADC.
Instantaneous voltage and current in each phase is
multiplied and is added in total phases.
The value changes into active power after passing
through LPF and added with the value of a light load
register. After this value is compared with the value of
rated standard value register, it outputs pulses in
proportion to the calculation.
Regarding reactive power, input current is precisely
shift by 90 degree and multiplied with respective voltage
input signal. It outputs pulses in the same manner of
active power calculation.
And apparent power can be selectively derived from
either active power and reactive power calculation or
VRMS x IRMS calculation and it outputs pulses as the
result of calculation.
"
"
"
"
"
"
"
"
"
"
a
[AK5602A]
AK5602A
± °
°
2011/02
