Summary of Contents for MosChip MCS7840

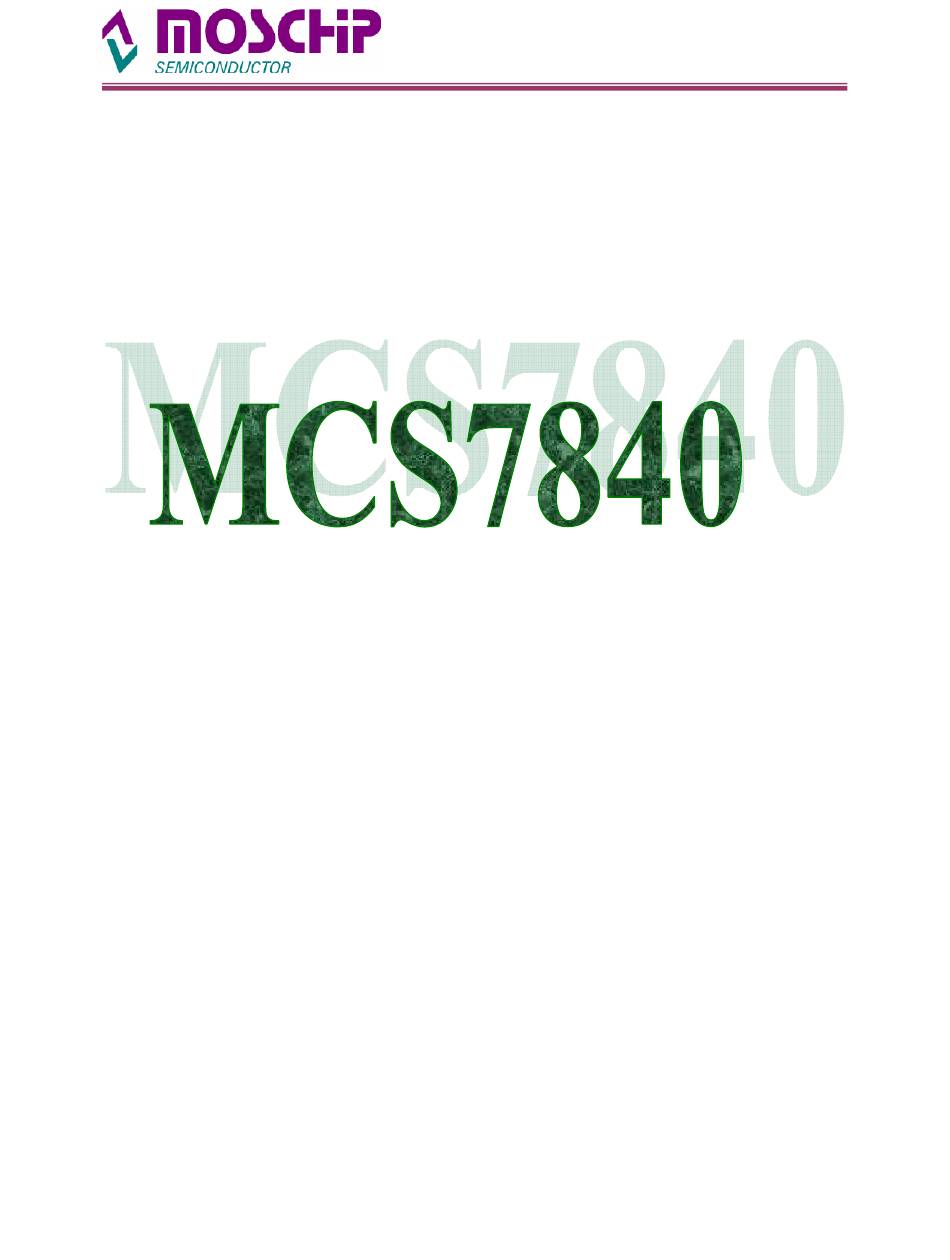

- Page 1 MCS7840 User Manual USB2.0 to Four High Speed Serial Ports User Manual For Windows 98SE / ME Rev1.0 For Windows 98SE / ME Page 1 July, 2006...
- Page 2 1. Installation ………………………………… 3 2. MCS7840 Device Detection …………………….. 3. Un-Installation ………………………………… 5 4. Installation / Detection / Un-Installation of MCS7840 on Win ME OS ………………………. 5. About MCS7820 ………………………………… 7 6. Support ………………………………… 8 7. Revision history ………………………………… 8 Rev1.0...
- Page 3 MCS7840 User Manual Download the MCS7840 driver from MosChip website, www.moschip.com. The driver disk consists of MSSetup.exe, MSUninst.exe and related folders for Win XP/2K and Win 98/ME operating systems. Use “MSSetup.exe” utility to install the driver. Double click on the utility to start the installation process.
- Page 4 The utility will display a message stating “Installation completed”. Use “Exit” button to complete the driver installation. Connect MCS7840 to the USB Host controller of the PC using a USB cable. The first time you plug the adapter into the USB port, Windows will automatically load the drivers for “High-Speed USB Multi Serial Compound Device”...
- Page 5 MCS7840 User Manual Use “MSUninst.exe” to uninstall the MCS7840 device driver from your PC. Double click on the utility to run the Uninstaller. Click on OK to proceed further. Use the “Exit” button to complete the Uninstaller utility. No need to restart the PC, unless prompted by the OS.
- Page 6 MCS7840 User Manual The MCS7840 device driver can be uninstalled through “Device Manager” as well. Go to Device Manager, Select High-Speed USB Multi Serial Compound Device from the Universal serial Bus controllers, Right Click on it, Select “Uninstall” as shown below.
- Page 7 Win ME OS. Please follow the steps as explained for Win 98SE. MCS7820 offers USB2.0 to two Serial Ports, installation process of MCS7820 would be similar to that of MCS7840. In case of MCS7820, user can see two High speed USB based Serial ports.
- Page 8 MCS7840 User Manual Queries, Technical questions if any can be sent to techsupport@moschip.com support@moschip.com Version Initiated by Change details Date George Sridhar Initial release July 2006 Rev1.0 For Windows 98SE / ME Page 8 July, 2006...
