- Page 2 KuDos Industrial Inc. U.S.A. Safety Operating & Maintenance Instructions Hydraulic Hand Compression Crimper UB-412 Version: 2006/07 Hydraulic Hand Compression Crimpers comply with ISO 9001:2000. We guarantee our qualities and services. ATTENTION! Safety Operating & Maintenance Instructions must be followed.
-
Page 3: Table Of Contents
Table of Contents Safety Instructions’ Product Description Characters & Functions Operation Manual Trouble – Shooting Maintenance’ Limited Warranty Diagram of Parts & Components Table of Parts & Components Dies Operation Instructions Manufacture & Quality Certificate Page: 1 KuDos Industrial Inc. U.S.A. - Page 4 Operation Instructions Direction of Compression Single-sided / Outward Direction of Compression Outward KuDos Industrial Inc. U.S.A. Page: 14...
- Page 5 3.50 8.00 8.80 4.30 10.00 CU-22 11.50 5.40 11.50 CU-38 13.40 6.00 15.00 CU-60-70 15.00 6.75 18.00 CU-80 18.00 8.00 15.00 CU-100 21.00 9.10 13.00 CU-150-180 28.44 12.32 11.20 CU-200 30.00 14.56 11.50 CU-325 Page: 13 KuDos Industrial Inc. U.S.A.
-
Page 6: Safety Instructions
This product is NOT an insulator. Proper equipments should be used to avoid electric shock. ATTENTION Goggles are recommended during operation of the product. Safety Operating & Maintenance Instructions must be read carefully prior to operating the product. KuDos Industrial Inc. U.S.A. Page: 2... -
Page 7: Product Description
Product Description Subassemblies Locking Pin C-Head Locking Pin Piston Set Cylinder Body Relief Valve Moving Handle Fixed Handle Page: 3 KuDos Industrial Inc. U.S.A. - Page 8 Insulation Cover Back Up Ring Hook Spring O-Ring O-Ring Spring Rod Funnel Compression Spring Support C Head Inverse Ring Spring Pin Spring Pin Locating Ring Compression Spring Stop Screw O-Ring Compression Spring Back Up Ring KuDos Industrial Inc. U.S.A. Page: 12...
- Page 9 Diagram of Parts & Components Page: 11 KuDos Industrial Inc. U.S.A.
-

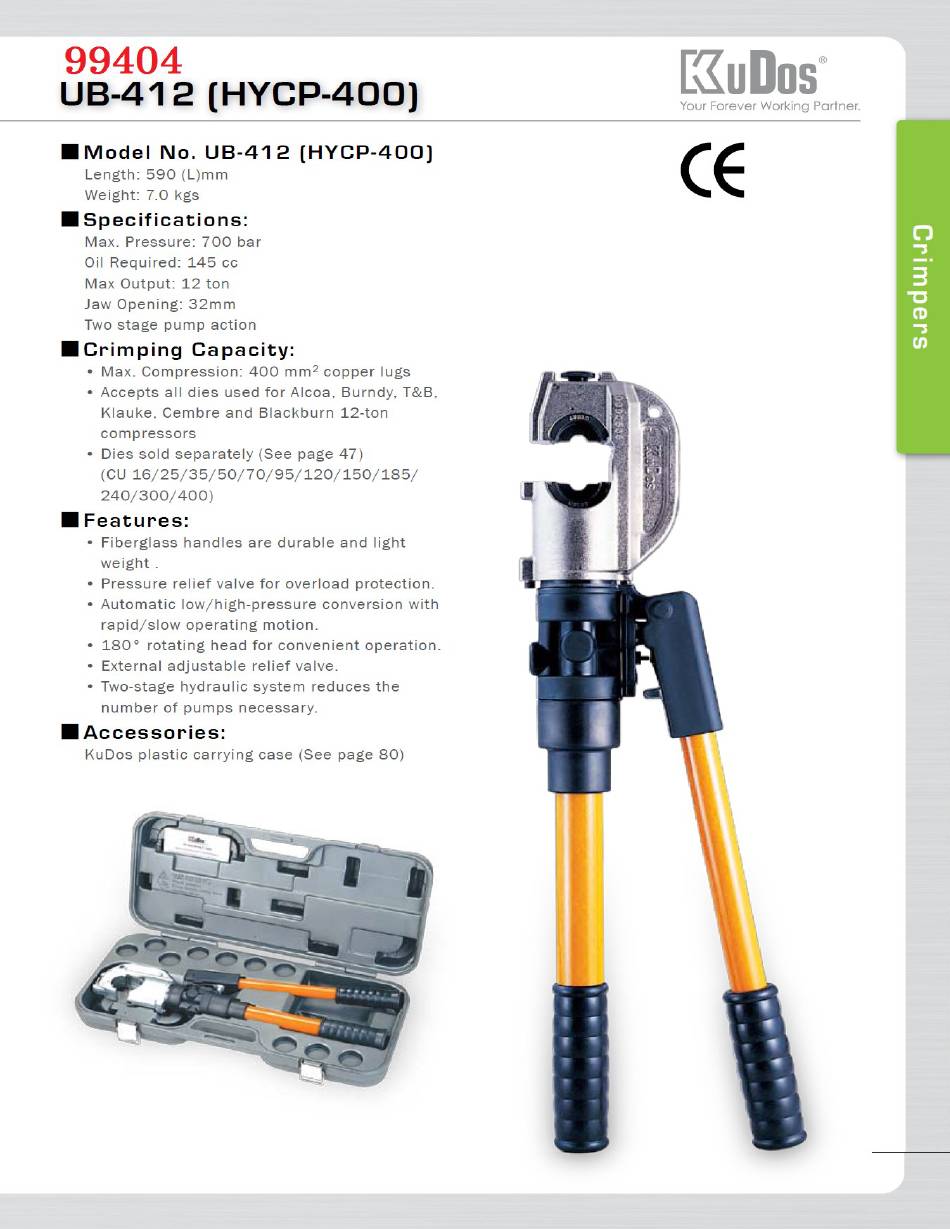

Page 10: Characters & Functions
4.4 kgs Gross Weight 7.0 kgs Accessories KuDos plastic carrying case / Dies not included C-Head open : 32 mm Max. compression : 32 mmФ copper lugs Max. operating pressure : 700 bar / 10,000 psi External adjustable relief valve... - Page 11 4. The piston is stuck or is unable to retract after operation. Clean the product and dies after use. Apply rust preventive oil to the product and dies before putting back to the carrying case. Page: 5 KuDos Industrial Inc. U.S.A.
- Page 12 Limited Warranty Limited warranty of KuDos® goods are valid for a period of one year from the date of purchase. Receipt and warranty card are required for warranty services. This warranty is subject to the exclusions and limitations described below.
- Page 13 It might also damage the product severely. The hydraulic fluid pressure should be adjusted only by KuDos® service representatives. Do NOT operate the product without dies in place, or the C-head might be deformed or broken, the piston might be damaged, opera- tors might even be injured.
-
Page 14: Operation Manual - Ii
C-head along its groove. 3. To place the lower die, press down the arresting pin ( #74) and push the die into the open of C-head along its groove. KuDos Industrial Inc. U.S.A. Page: 6... - Page 15 (#74) to remove the lower die. 8. Clean the product and dies after use. Apply rust preventive oil to the product and dies before putting them back to the carrying case. Page: 7 KuDos Industrial Inc. U.S.A.
-
Page 16: Trouble-Shooting
Moving handle is stuck or is unable to rotate to release the pressure. A. Clean the moving handle to remove impediments. B. Contact KuDos® service representatives for stuck torsional spring. Do NOT attempt to disassemble or repair the product. C. Pressure can be released by pressing down the release lever manually.
