Delta 584 Manual

Delta 584 Manual

Single handle lavatory faucets
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

®
ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
ASME A112.18.6
ICC/ANSI A117.1
Models/Modelos/Modèles
584
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Delta
faucet you will need:
To READ ALL the instructions completely before
beginning.
To READ ALL warnings, care and maintenance
information.
Para instalación fácil de su llave Delta
usted necesitará:
LEER TODAS las instrucciones completamente
antes de empezar.
LEER TODAS los avisos, cuidados, e información
de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez:
LIRE TOUTES les instructions avant de débuter;
LIRE TOUS LES les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
SINGLE HANDLE
66181
LAVATORY FAUCETS
LLAVES MONOCONTROL
PARA LAVABO
MITIGEUR MONOCOMANDE
POUR LAVABO
L
66181
1
?
8/3/10 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 584 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta 584

Summary of Contents for Delta 584

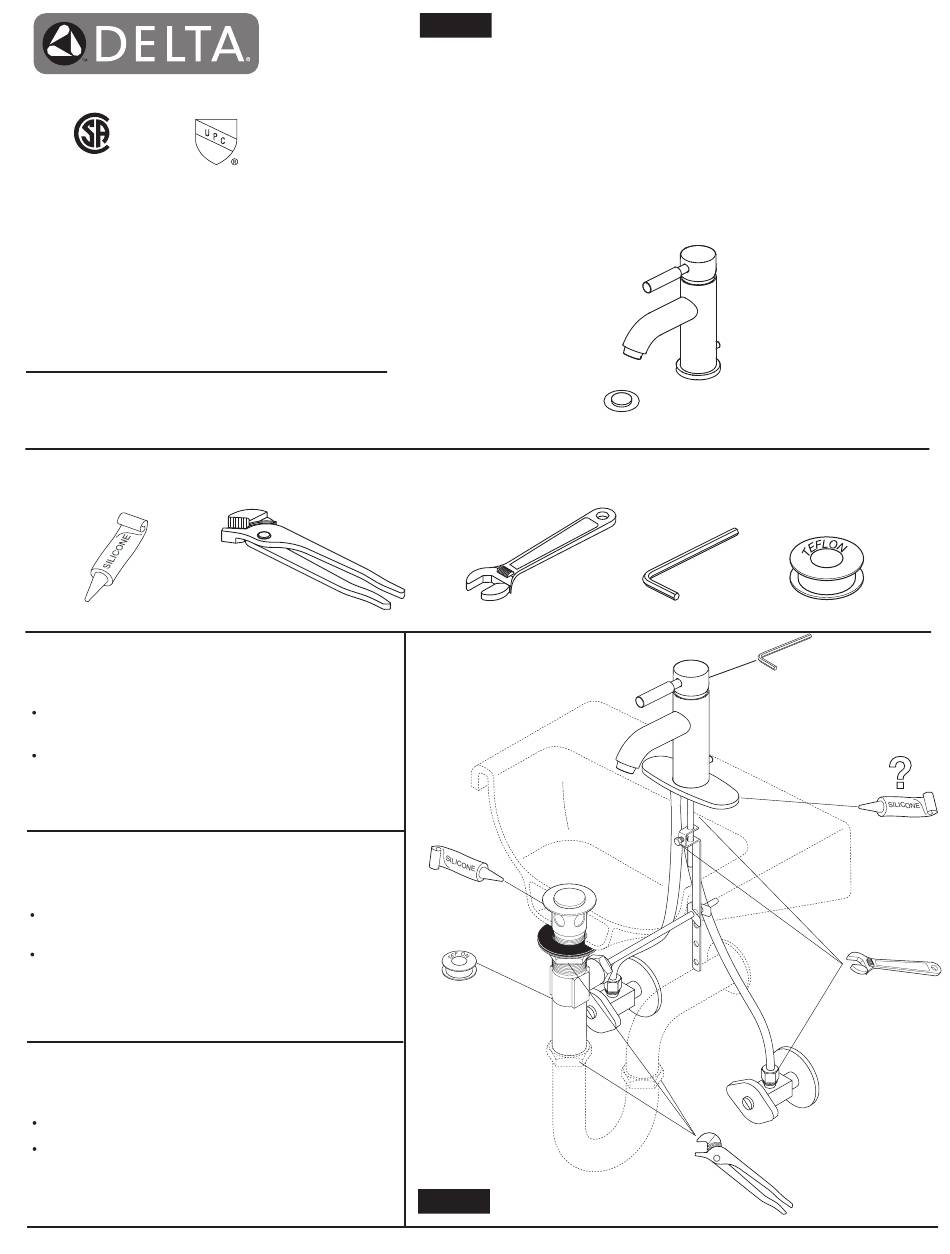

  • Page 1 To READ ALL the instructions completely before beginning. To READ ALL warnings, care and maintenance information. Para instalación fácil de su llave Delta usted necesitará: LEER TODAS las instrucciones completamente antes de empezar. LEER TODAS los avisos, cuidados, e información de mantenimiento.

  • Page 2: Faucet Installation

    Faucet Installation Install lift rod (1). Position faucet (2) with single or three hole escutcheon (3) and baseplate or gasket (4) on sink. Option: If surface of sink is uneven, use silicone under the baseplate or gasket. Place mounting hardware (5) over mounting studs (6) under sink. Secure with mounting nuts (7).
  • Page 3 Pop-Up with Metal Flange and Plastic Tail Piece With pivot (1) facing toward faucet, pull pop-up Remove pivot nut (1). Install horizontal rod (2) Remove stopper (1), brass nut & washer (2), black straight down into drain hole and secure and stopper (3) as removable (4) or gasket (3) and tail piece (4).
  • Page 4 CONNECT TO WATER SUPPLIES. Maintenance: Important: This flushes away any debris that could cause damage to internal parts. Mantenimiento: CONECTE A LAS ENTRADAS DE AGUA DE AGUA. Quite el aireador (1) y gire la manija (2) de la llave completamente a la posición abierta.
  • Page 5 Specify Finish RP64379 Especifique el acabado Handle Assembly Précisez la Finition Conjunto de manija Montage de la manette RP64380 Tapa Embase RP64381 Cartridge and retainer ring Cartucho y anillo de retención Cartouche et anneau de rétention RP64386 Lift Rod Varilla elevadora Tirette de vidage RP61340 Aerator...

  • Page 6: Cleaning And Care

    Any damage to this faucet Delta Faucet Company Masco Canada as a result of misuse, abuse or neglect, or any use of other than genuine Delta® replacement Product Service Technical Service Centre parts WILL VOID THE WARRANTY.
