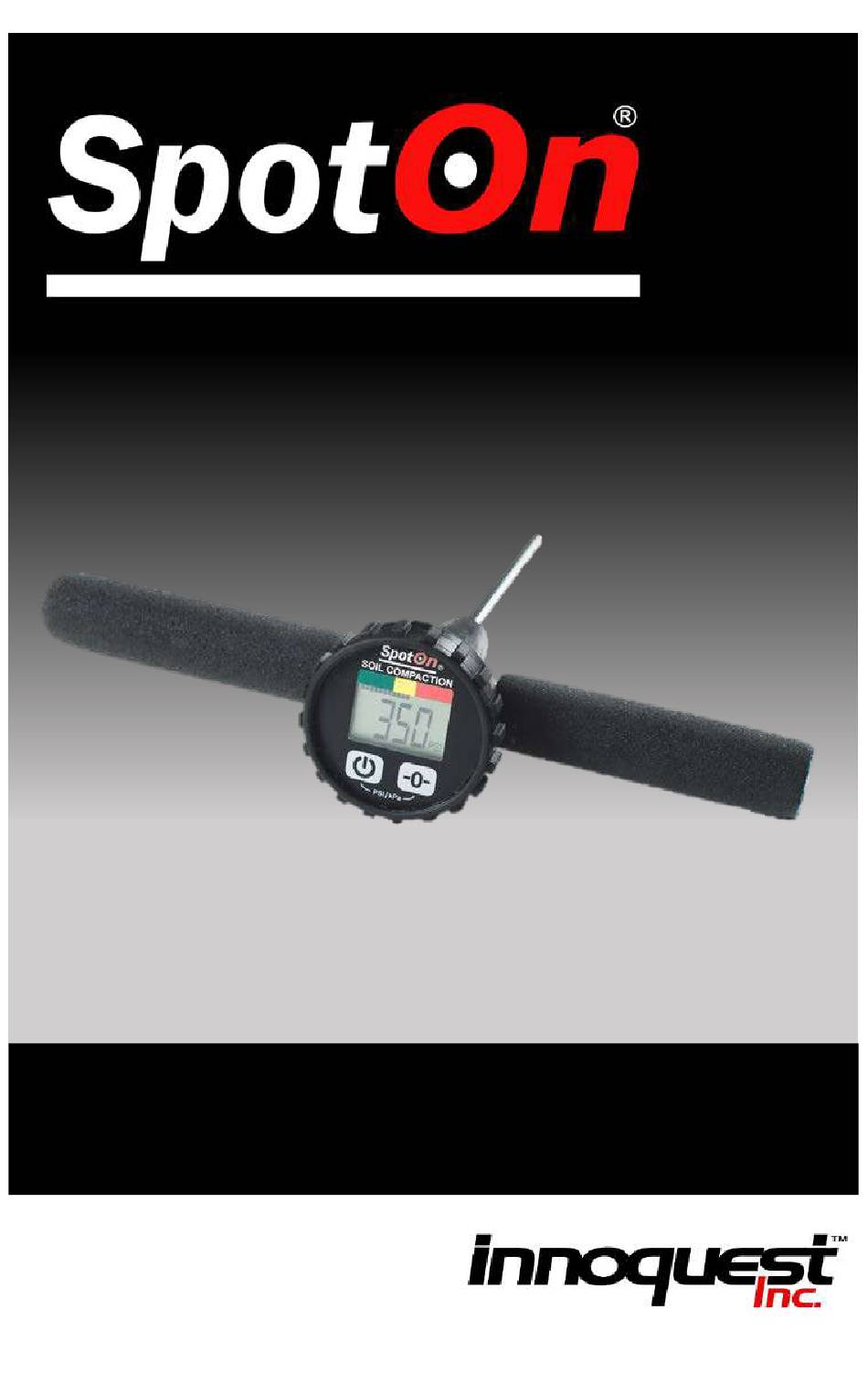

- Page 1 Digital Soil Compaction Meter Innoquest Item # 29360 Product Manual...
- Page 2 Table of Contents 1.0 Safety Info…………..…….……………….. 2 2.0 Meter Diagram........…... 2 3.0 Features……………………………………. 3 4.0 Specifications.….………………………… 3 5.0 General Operation………..……………… 4 5.1 Installing the Batteries……..……..… 4 5.2 Zero Calibration…………………..…. 4 5.3 Changing Display Units………..…… 5 5.4 Taking a Reading…………….……… 5 5.5 Probe Tip Cover….………………..…...
- Page 3 1.0 Safety Info Use caution when probing into soil to avoid hitting buried electrical wires or other utilities. Use caution when handling and transporting this meter since its sharp metal tip could cause damage to packaging, containers, or personal. Always use the included tip cover when transporting the meter. (See section 5.5 for more info) 2.0 Meter Diagram Color Coded...
- Page 4 3.0 Features • Meets ASABE S313.3 Soil Compaction Standard • Automatically displays maximum compaction value when probe is extracted from the soil. • Color coded display for easy compaction reference Green 0-200 PSI (0-1400 kPa) Yellow 200-300 PSI (1400-2070 kPa) Red 300+ PSI (2070+ kPa) •...
- Page 5 5.0 General Operation 5.1 Installing the Batteries Remove the metal end cap on the meter’s handle with a straight screw driver. Install two (2) new alkaline AA or LR6 size batteries with the plus (+) side of both batteries facing into the tube. Replace the metal end cap with the spring contacting the negative (-) of the last battery.
- Page 6 5.3 Changing Display Units Pressing both buttons (POWER & ZERO) at the same time while the meter is on will change the displayed units. This change will be saved when the meter is turned off. 5.4 Taking a Reading Power on the meter by pressing the POWER button.
- Page 7 5.5 Probe Tip Cover The meter ships with a re-usable probe tip cap. This cap can be stored in the meter’s handle while the meter is in use. The use of this probe tip cap is recommended for protecting the probe tip, personal, and vehicles during transport.
- Page 8 (Innoquest does not pay inbound shipping charges). All returns must receive an RMA number by calling Innoquest prior to return of the product. The RMA number must be clearly marked on the outside of the shipping carton.
