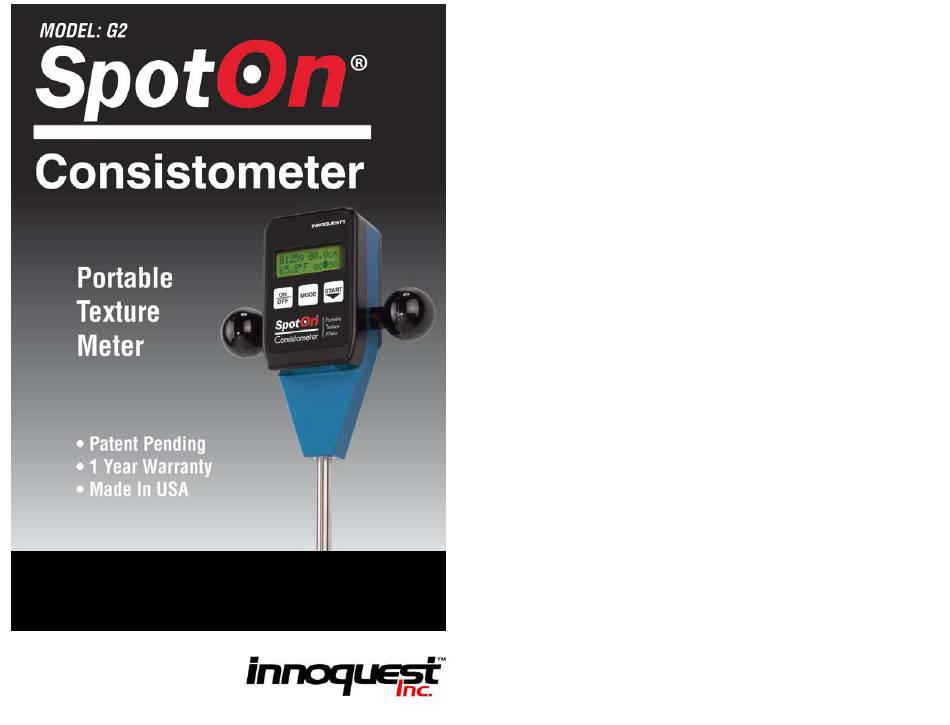

  • Page 1 Innoquest Item # 23920 Product Manual...

  • Page 2: Table Of Contents

    Table of Contents 1.0 Safety Information Caution should be exercised while using this meter to assure the safety of the user. This meter is a low voltage battery powered device 1.0 Safety Information………………………...2 which should not cause electrical hazard to the user even when connected to a computer via a USB cable.

  • Page 3: Introduction

    ● Data can be downloaded as an Excel® file (.CSV) for analysis and Battery Cover plotting Serial Number (Remove Back Plate Label ● Interchangeable probe tips can be used to adapt the instrument to to Replace Battery) different products (please contact Innoquest for information on additional probe tips) Wrist Lanyard Attachment Loop...

  • Page 4: Specifications

    3.0 Specifications 4.0 General Operation Force: 0-22 lbs (0-9,999grams) working range, 0.01 lbs (4 g) Note: See Demo Video on www.YouTube.com resolution, +/- 2% accuracy, Overload protection to 62 lbs (28 (Search SpotOn Consistometer) Depth: 0-28 in (0-70 cm) working range, 0.1 inch (0.1cm) resolution, +/- 0.25”...

  • Page 5: Meter Modes

    4.2.2 CALIBRATE MODE 4.2 Meter Modes This mode is used to calibrate the meter’s internal load Once power is turned on to the meter the user has the option to scroll cell for drift which can occur due to temperature changes through and select 4-5 operating modes.
  • Page 6 4.2.3 SETUP MODE 4.2.4 RAW MODE Once in Setup Mode press the START button to select This mode allows the user to see the raw readings from which parameter to change. the different sensors on the meter. While in this mode the user can press the START button to scroll through a.

  • Page 7: How To Make A Probing

    While pushing the probe into the sample watch the 4.3 How to Make a Probing speed indicator in the lower right of the screen. For the selected insertion speed the indicator must be centered 4.3.1 Turn the meter on and select (ooOoo).
  • Page 8 4.3.6 Once the meter has just finished SCREEN 3/4 & Up - Pressing the a probing (before starting a new START button additional times will probing) the user can see 3-4 allow the user to cycle through the types of data. Pressing the readings held in temporary memory START button will show the data for each 1 cm of probing depth.

  • Page 9: Software Install

    5.2 Software Use 5.0 PC Software 5.2.1 Port Selection The SpotOn Consistometer PC software is used for the following: 1. Make sure the meter has a battery installed. The meter should be - Before the meter can communicate with the PC a correct com turned off.
  • Page 10 5.2.2 Transferring Meter Data 5.2.3 Clearing Meter Memory Enter the Meter menu and select GET DATA FROM METER to Clear the meters memory when desired by entering the Meter menu download all data on the meter. This will create a .CSV (comma and selecting CLEAR METER MEMORY.
  • Page 11 Min – The value entered here will show on the meter’s LCD to 5.2.4 Configuring the Meter remind the user what the minimum acceptable value is. Set min A list of Product Types can be generated by entering the Meter menu to 0 and max to 9999 if no min/max is desired to show on the and selecting CONFIGURE PRODUCT LIST.

  • Page 12: Trouble Shooting

    6.0 Trouble Shooting 7.0 Maintenance Remove the battery from the meter if it will be stored without Why do I get an ERROR after making a probing? If 50% of the speed readings for a given probing (measured at each 1 use for a long period of time (like 3 months or more) cm depth increment) were not within one dot of the center point of the speedometer then the meter rejects the reading as invalid and show...

  • Page 13: Warranty & Service

    (Innoquest does not pay inbound shipping charges). All returns must receive an RMA number by calling Innoquest prior to return of the product. The RMA number must be clearly marked on the outside of the shipping carton.
