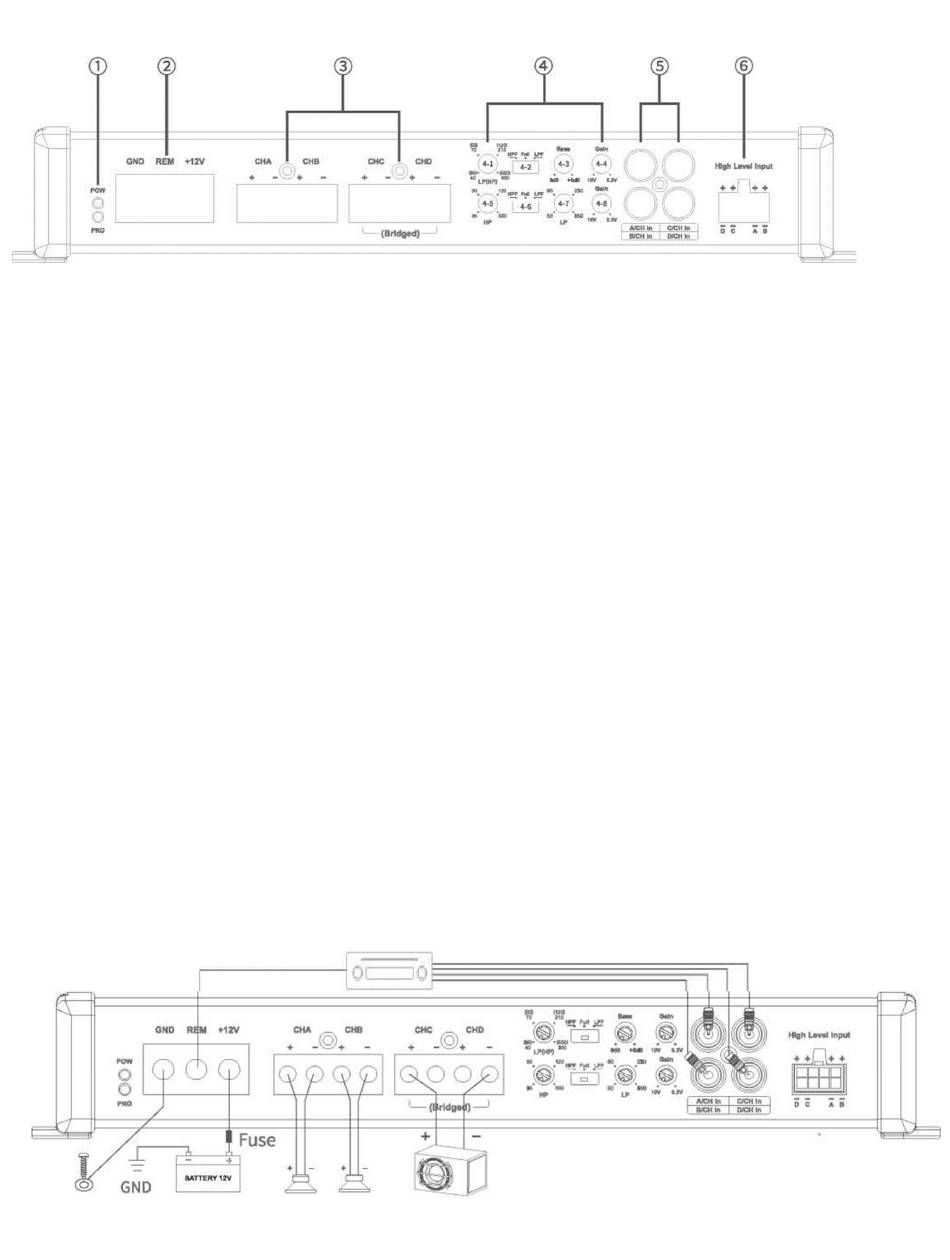

Connector and control unit

① Status indicators

The blue light is normal, and the red light is protection. If the red light is on, the amplifier may be
overloaded or work abnormally. Stop using it immediately.

② Power terminals

GND
Connect to car chassis or battery negative terminal，
REM
Connect the amp turn wire on from source
+12V
Connect to the positive terminal of the battery. (Remember. Use propriate fuse)
③

Speaker terminal

bridging, only use ch5 and ch6. Min 2 ohm stereo, 4 ohm bridge
④

Adjustment Knobs

frequensu played by amp BASS level of bass boost，GAIN input level of amplification, must be matched to
source
⑤ High level
㊀to minus terminal on speaker，㊉ to positive terminal on speaker. For
LOW PASS deside highest frequensy played by amp，High pass deside lowest
ch c and ch d with auto turn on
innput from source

Normal Installation
