Summary of Contents for Rebec A75

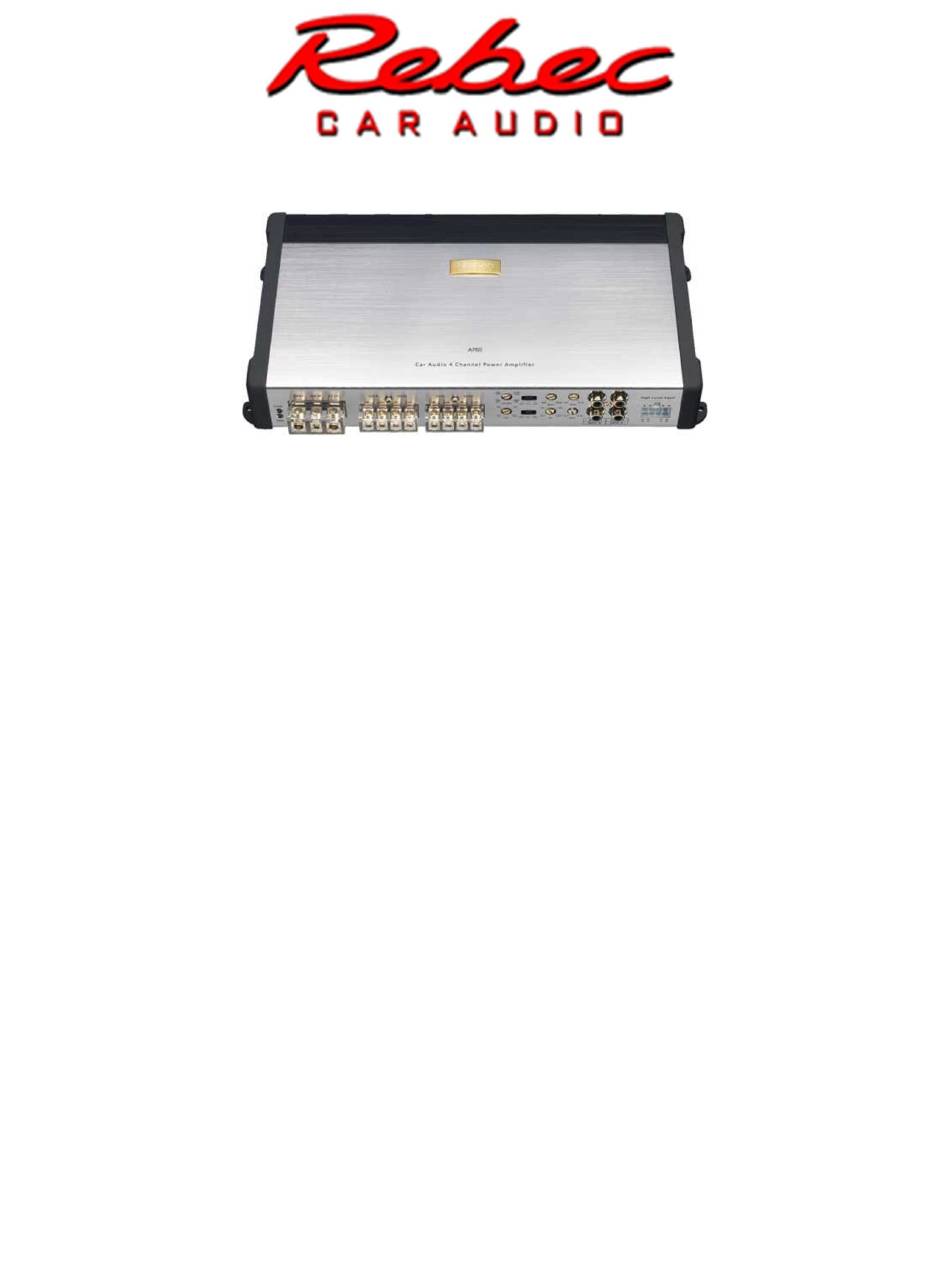

- Page 1 Please read manual carefully before installation...
- Page 2 Thank you for purchasing and using Rebec products. In order to prevent damage to the device and possible injury, please read this manual carefully and follow all installation steps, so that you can be familiar with each control and function of the amplifier, and can maximize the performance and characteristics of the amplifier, so Rebec products can bring you a pleasant listening experience.
- Page 3 Connector and control unit ① Status indicators The blue light is normal, and the red light is protection. If the red light is on, the amplifier may be overloaded or work abnormally. Stop using it immediately. ② Power terminals Connect to car chassis or battery negative terminal， Connect the amp turn wire on from source +12V Connect to the positive terminal of the battery.
- Page 4 Technical Spesifications. Amplifier Type ..................Class AB Output PowerRMS @4 ohm load ..................4x75 ≤ 10%THD + N 4X60W ≤ 0.1%THD + N @ 2 ohm load ..................4X130W ≤ 10%THD + N Bridge Ch 3 and 4 @ 4 ohm load ............1x240W ≤ 10%THD + N Bridge Ch 3 and 4 @ 2 ohm load ............
