Basalte ASANO P4a Installation Manual

ASANO P4a
Installation Manual

Description

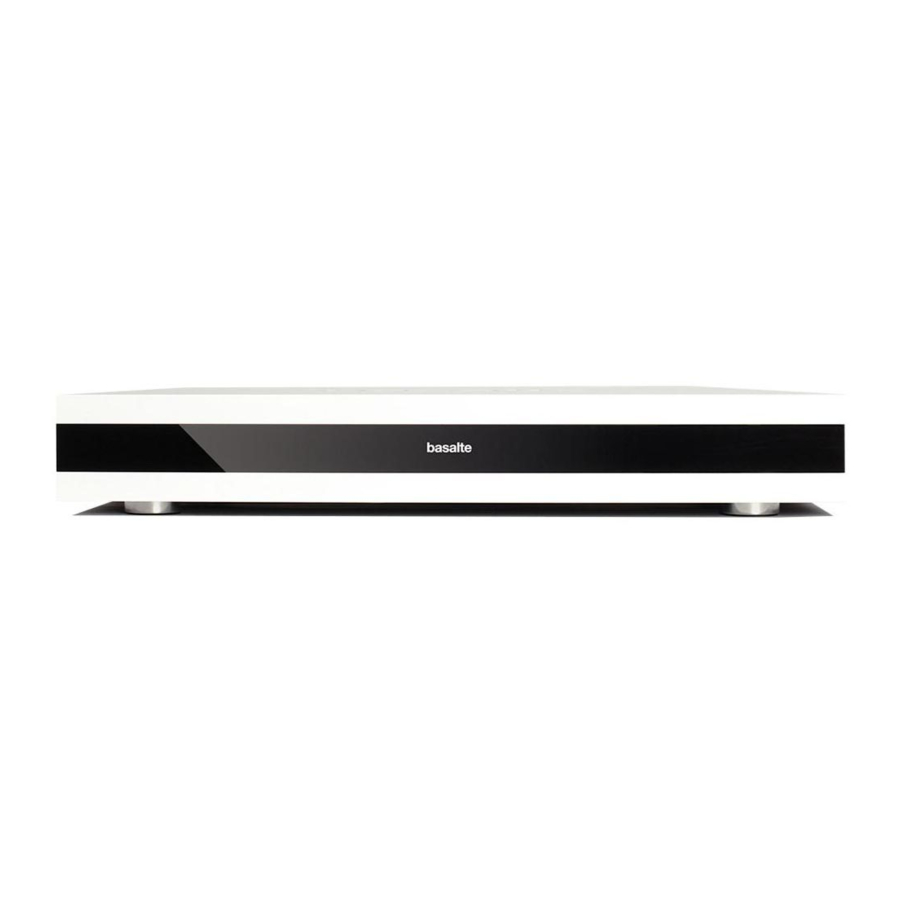

Asano P4a is a networked 4-zone amplifier, each zone output powered with 2x125 W amplifiers. It can connect 3
analogue audio input sources.
Asano P4a can only be used in combination with S4. The S4's integrated KNX control allows you to integrate the Asano
P4a in a KNX system.
1

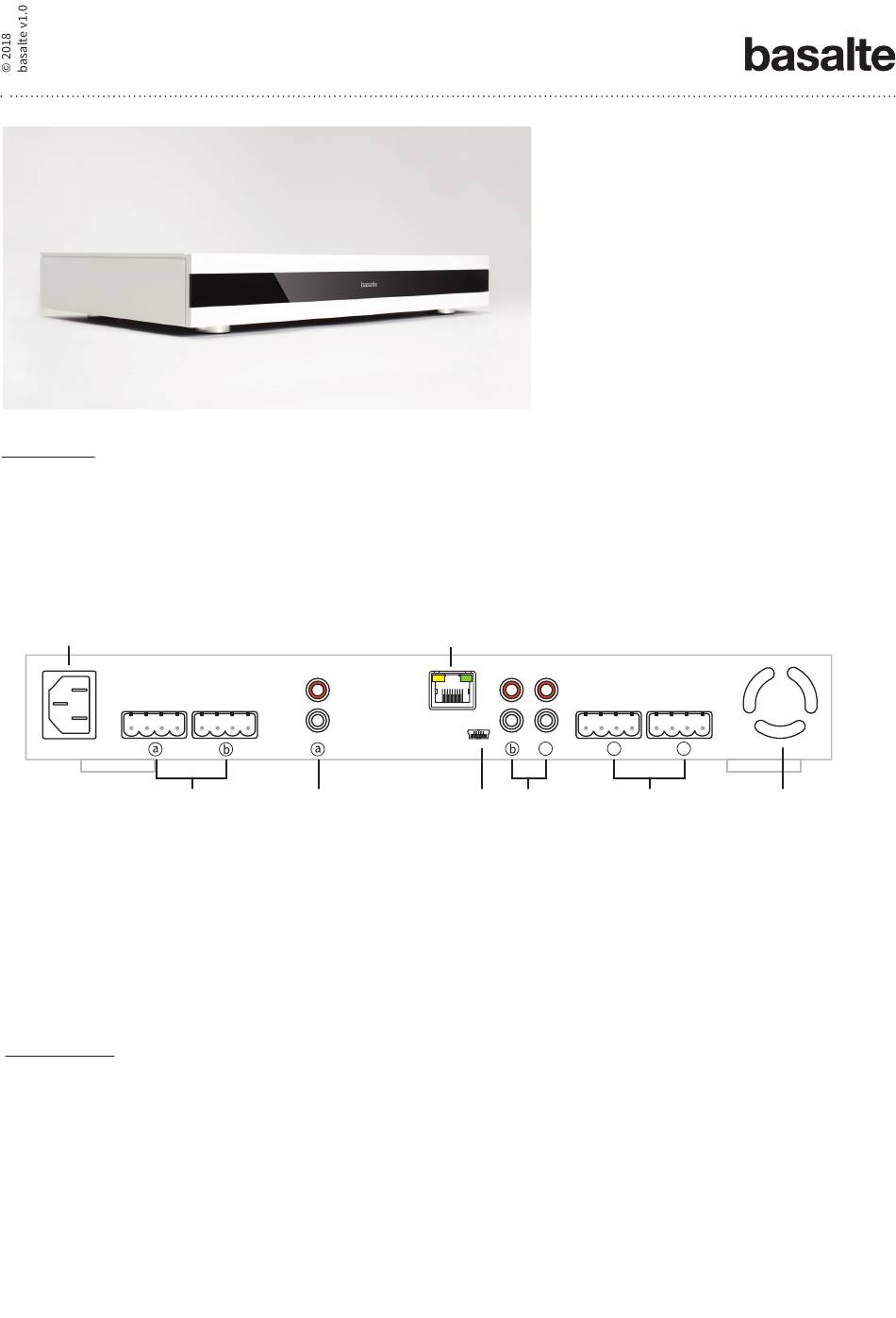

1 Power supply (230V AC)
2 Loudspeaker output
a Zone 1
b Zone 2
c Zone 3
d Zone 4

LED feedback

The Asano P4a front panel has a feedback LED which indicates following statuses:
• Blue: standby mode
• White: at least one output zone amplifier is active.
• Red flashing: device failure detected related to power supply or amplifier.
• Purple flashing: digital clipping or issues with the audio network.
2 3
3 Analogue input
a Source 1
b Source 2
c Source 3
Before operating the unit, please read this
manual thoroughly and retain it for future
reference.
Model No. 700-14
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
4
c c
6 3
4 Audio network
5 Cooling Fan
6 Service
d
2 5
