Basalte ASANO M3 Installation Manual

ASANO M3
Installation Manual

Description

Asano M3 is a networked multi zone amplifier that allows connecting up to 4 zones. The 2 amplified zones can be
configured as 2 stereo zones or 4 mono zones. The loudspeaker zones can also be bridged to provide a powerful stereo
zone. Additionally there is a digital S/PDIF output that allows connecting a third party amplifier or active speakers with
the Asano system.
M3 can only be used in combination with S4 and is fully controlled over the audio network. The S4's integrated KNX
control allows you to integrate the Asano M3 in a KNX system.

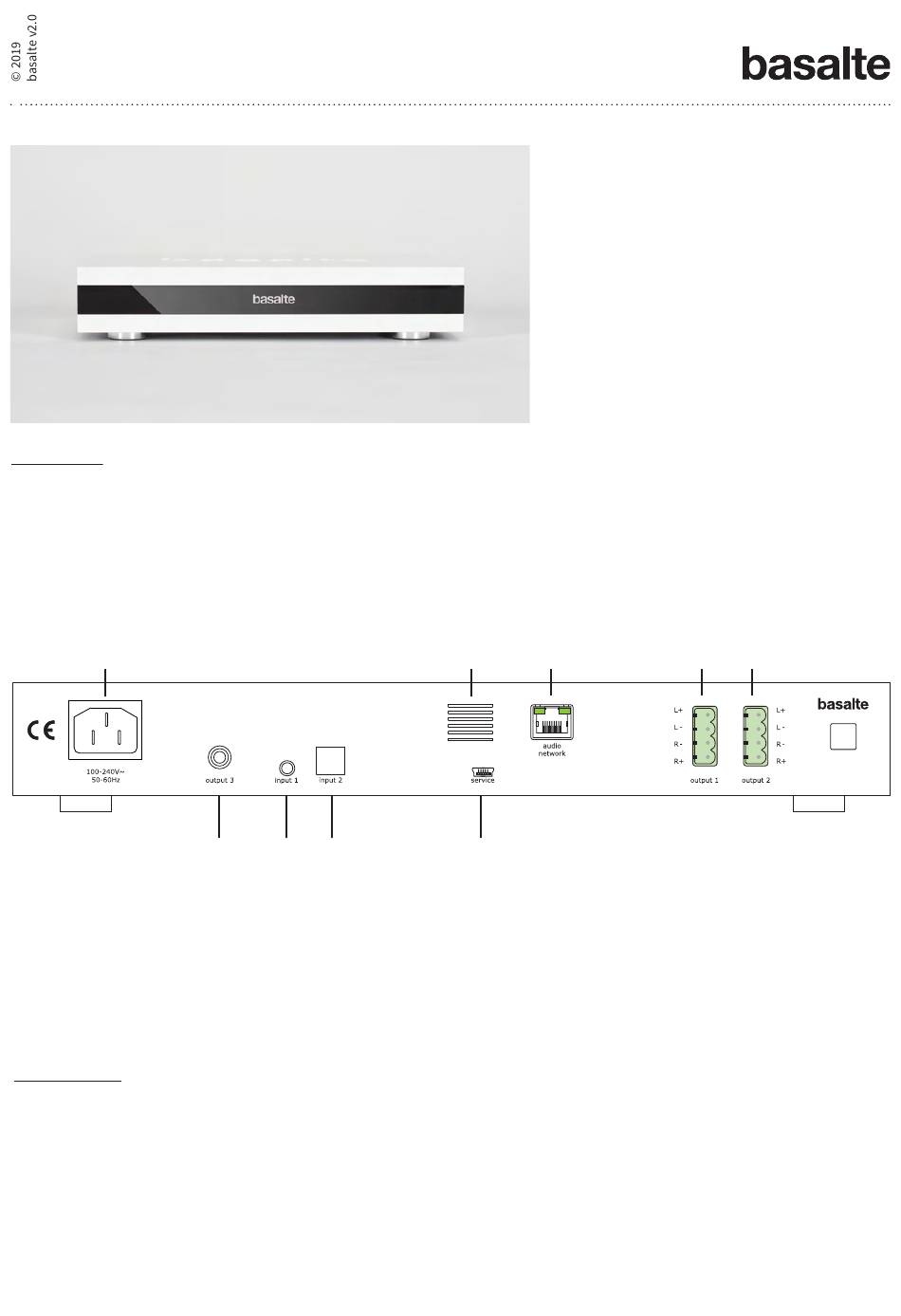

1
1 Power supply
2 Digital output S/PDIF
3 3.5 mini jack input
4 Optical input
5 Service interface

LED feedback

The Asano M3 front panel has a feedback LED which indicates following statuses:
• Blue: standby mode
• White: at least one output zone amplifier is active
• Following status indicates a possible device failure:
- Red flashing
- Purple flashing
- Cyan flashing
2 3 4
6 Cooling fan
7 Audio network
8 Loudspeaker output
a Zone 1
b Zone 2
Before operating the unit, please read this
manual thoroughly and retain it for future
reference.
Model No. 0703-03
Caution: any changes or modifications
not expressly approved in this manual
could void your authority to operate this
equipment.
6 7
5
8a 8b
