Quick Guide

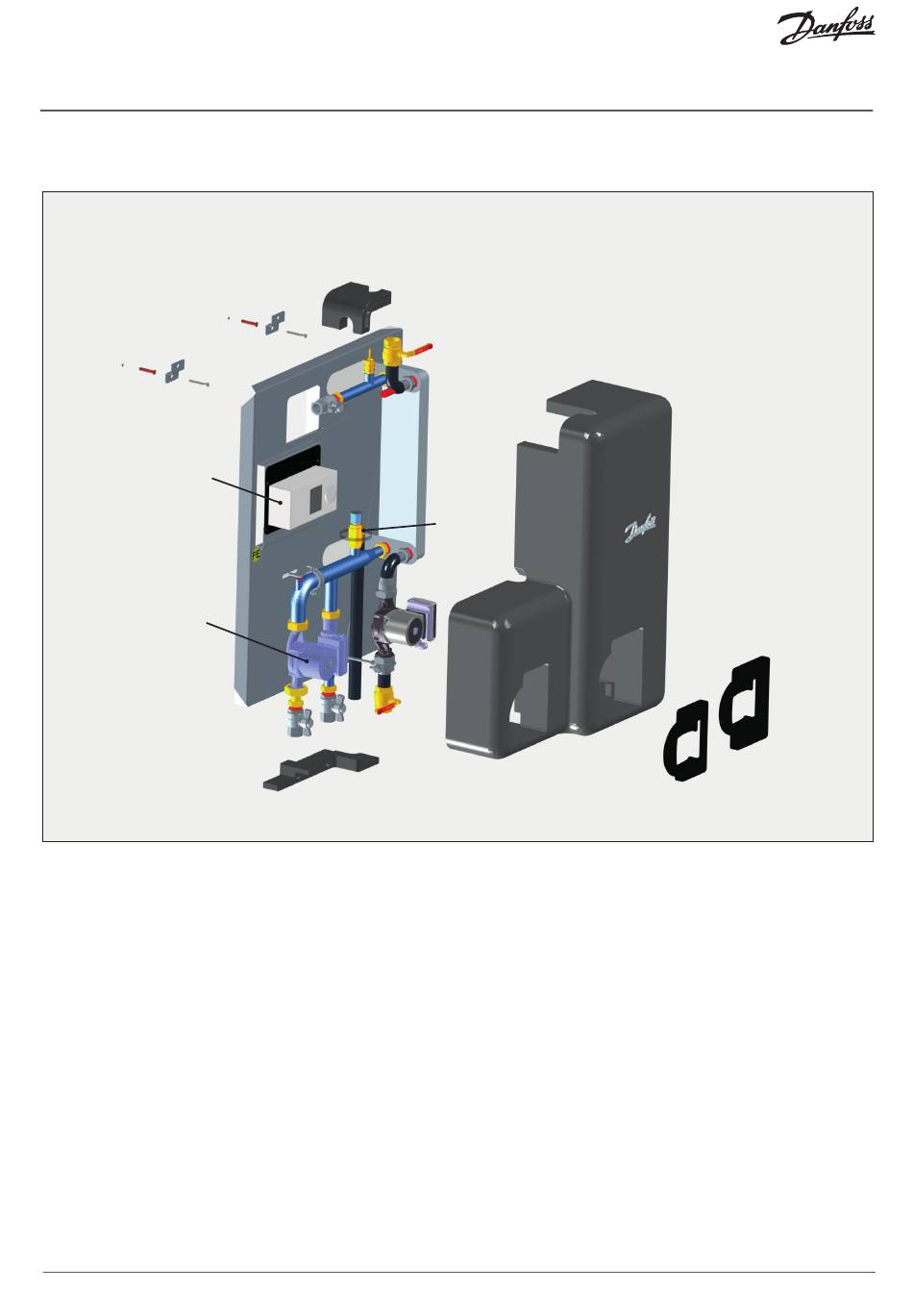

Assembly / System-installation:
H
ECD
CPU
Legend:
1)
Drinking water (cold)
2)
Drinking water (warm)
3)
Circulation
4)
Heating, supply
5)
Heating, return
HEL Heat exchanger
HPU Heating pump
CPU Circulation pump
SFV Safety valve
ECD Electronic controller DHW
D
Drain pipe
H
Holder set
I1
Insulation part 1
I2
Insulation part 2
I3
Insulation part 3
IP
Pump insulation
© Danfoss | 2018.01

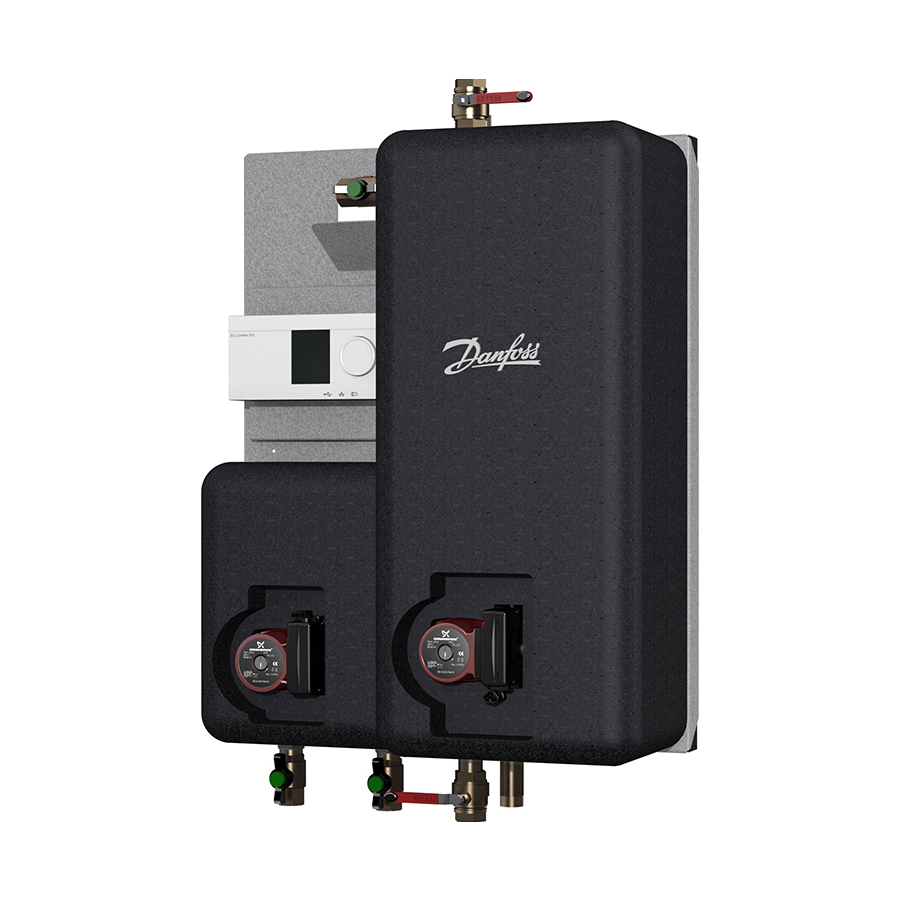

ThermoDual®-FLS-COMBI
I3
H
2
HEL
D
5
1
3
12
4
SFV
HPU
I1
IP
IP
VQ.LZ.A1.02 | 1
Advertisement
Table of Contents
Related Manuals for Danfoss ThermoDual-FLS-COMBI
Summary of Contents for Danfoss ThermoDual-FLS-COMBI
- Page 1 Heating, return HEL Heat exchanger HPU Heating pump CPU Circulation pump SFV Safety valve ECD Electronic controller DHW Drain pipe Holder set Insulation part 1 Insulation part 2 Insulation part 3 Pump insulation VQ.LZ.A1.02 | 1 © Danfoss | 2018.01...
- Page 2 Check if the system is securely fixed and cannot be moved. Insulation removal: First remove pumps insulations (IP) by pulling them out from the sockets. These parts are flexible and can be removed easier by pressing them. VQ.LZ.A1.02 2 | © Danfoss | 2018.01...
- Page 3 Gently remove main part of insulation (I1) by pulling it in the direction shown on drawing 4. Now you can remove other two insulation parts (I2 and I3) by pulling them in the direction down or up shown on drawing 5. VQ.LZ.A1.02 © Danfoss | 2018.01 | 3...
- Page 4 (e.g. KTW / W270 / Elastomer Guideline). Recommended types of seals: Heating side: KLINGER®top-sil-ML1, Multilayer 30 × 23mm (torque 30 .. 40 Nm) Domestic water side: EPDM A-KT 90-00, 30 × 23mm (torque 25 .. 30 Nm) 4 | © Danfoss | DHS-SMT/PL | 2018.01 VQ.LZ.A1.02...
