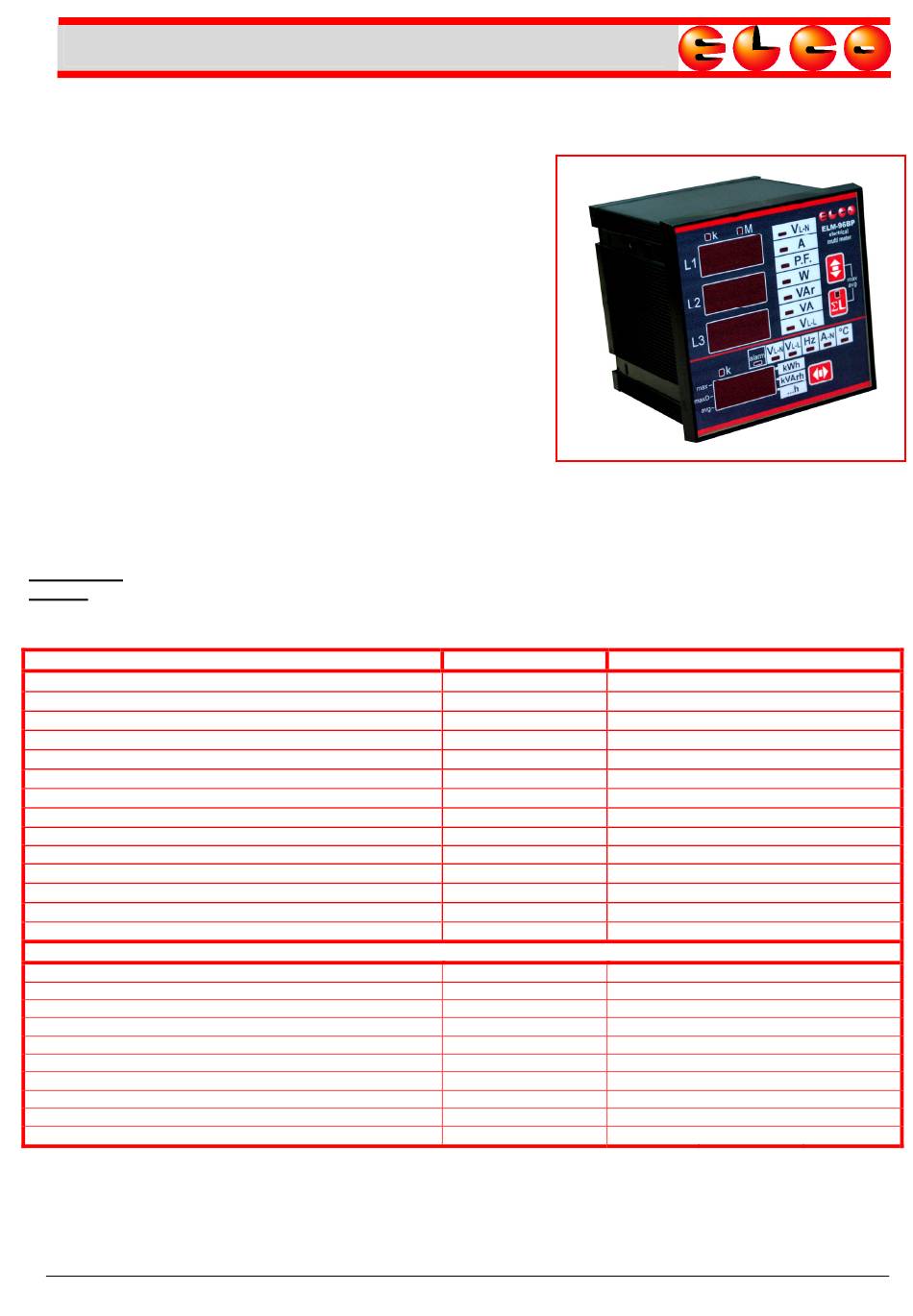

INSTRUCTION MANUAL
IM447-U v0.67
ELM-96BP-LON
ELECTRICAL MULTIFUNCTION METER with LON communication
GENERALITY
These digital multimeters allow to monitor all the electrical parameters
present on a distribution line. The local display of 30 electrical
parameters is carried out by 4 display with red LED guaranteeing a
good and contemporary reading of more measures. A simple front
panel completes the
parameters, with a great quantity of information. These instruments,
over of the instantaneous measures, display the maximum peak of the
main parameters (maximum peak and maximum demand).
These multimeters replace in a unique device, all the functions of
voltmeters, ammeters, energy meters, cosphimeters, wattmeters,
varmeters, frequency meters permitting a great economic saving, a
reduction of dimension and the wiring energy and a simplification in
the purchase and management of the instruments because this is a
model usable at all of need of local measure in the electrical panel,
machine, etc.
AVAILABLE MODELS
It's available only a model for flush mounting for panel.
-ELM-96BP-LON basic version in execution for flush mounting DIN 96x96mm
ACCESSORIES AND OPTIONS
accessories: frontal protection transparent cover IP65
options: insulated current inputs
neutral current input (or residual current input)
MEASURED PARAMETERS
parameters
phase and three phase voltages
phase to phase and three phase system voltages
phase and three phase currents
neutral current
phase and three phase power factors
phase and three phase active powers
phase and three phase system reactive powers
phase and three-phase system apparent powers
frequency
temperature
three phase system active energy
three phase system reactive energy
three phase system apparent energy
hour counter
average and peak values (maximums):
maximum phase voltages
maximum phase currents
maximum neutral current
maximum three-phase powers
maximum average phase currents (maximum demand)
maximum average neutral current (maximum demand)
maximum average three-phase powers (maximum demand)
average phase currents
average neutral current
average three-phase powers
ELM-96BP-LON
ELECTRICAL MULTIFUNCTION METER
intuitive selection of
instruction manual
several electrical
unit of measurement
[V-kV]
[V-kV]
[A-kA]
[A-kA]
[W-kW-MW]
[VAr-kVAr-MVAr]
[VA-kVA-MVA]
[Hz]
[°C]
[kWh]
[kVArh]
[kVAh]
[hr]
[V-kV]
[A-kA]
[A-kA]
[W-VAr-VA (k-M)]
[A-kA]
[A-kA]
[W-VAr-VA (k-M)]
[A-kA]
[A-kA]
[W-VAr-VA (k-M)]
initial identification
V V V
L1-N L2-N
V V V
L1-L2 L2-L3
A A A
L1 L2
A
n
PF PF PF
L1 L2
W W W
L1 L2
VAr VAr VAr
L1 L2
VA VA VA
L1 L2
Hz
L1
T
Σ kWh
Σ kVArh
Σ kVAh
h
V V
L1-N max L2-N max
A A
L1 max L2 max
A
n max
Σ W Σ VAr
max max
I I
L1 max (avg) L2 max (avg)
A
n max (avg)
Σ W Σ VAr
max (avg) max (avg)
A A
L1 avg L2 avg
A
n avg
Σ W Σ VAr
avg avg
IM447-U v0.67
Σ V
L3-N
L-N
Σ V
L3-L1
L-L
Σ A
L3
Σ PF
L3
Σ W
L3
Σ VAr
L3
Σ VA
L3
V
L3-N max
A
L3 max
Σ VA
max
I
L3 max (avg)
Σ VA
max (avg)
A
L3 avg
Σ VA
avg
