SERVICE MANUAL
®
MOYNO
Annihilator
Series 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Annihilator 3 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for moyno Annihilator 3 Series

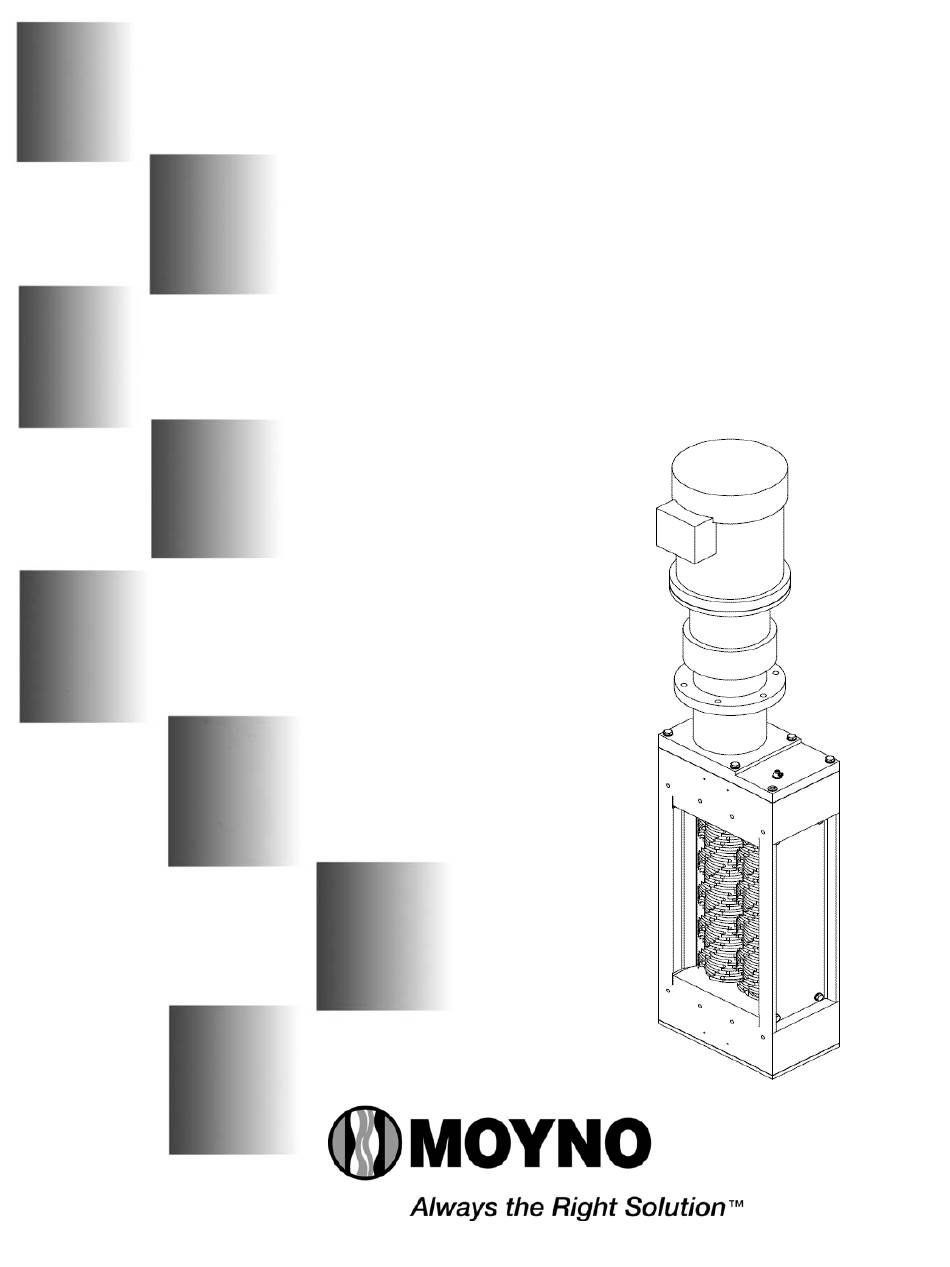

  • Page 1 SERVICE MANUAL ® MOYNO ™ Annihilator Series 3...
  • Page 2: Table Of Contents

    Table of Contents 1-1. INTRODUCTION ..........................1 1-2. GENERAL ..........................1 1-3. NAMEPLATE DATA ......................1 1-4. Model Number ......................1 1-5. Frame Designation .....................1 1-6. Trim Code........................2 1-7. Equipment Description....................2 1-8. Grinder Unit ........................2 1-9. Motor ..........................2 1-10. Reducer........................2 2-1. INSTALLATION ...........................2 2-2. GENERAL ..........................2 2-3.
  • Page 3: Introduction

    By utilizing a slow speed gear motor, the cutters have high torque capability and low impact while severing debris. The Moyno Annihilator is designed with cutting teeth on both Figure 1-2. Complete unit. the cutters and spacer cutters which increases the cutting capability of rags over other twin shaft grinders and eliminates the greatest cause of failure –...
  • Page 4: Trim Code

    1-8. Grinder Unit. The Moyno Annihilator is a motor driven, to clear the object. The controller then returns the Grinder to double shaft design stacked with intermeshing cutters and the forward direction of rotation.
  • Page 5: Operation

    3-1. OPERATION Page 3 3-2. INITIAL CHECK / START-UP CHECKLIST Before putting the grinder into operation, the following items should be checked to ensure that each piece of equipment is installed correctly: • Recheck for proper line voltage connections at the control panel and control transformer.
  • Page 6: Cartridge Replacement

    Remove and replace the cutter cartridge with a new or they are very sharp. rebuilt cartridge from Authorized Moyno Representative. Turn assembly on its side. 4-9. Motor Removal 10. Remove the socket head screws connecting the housing adapter to the top housing (2). Remove the gasket (3) The grinder may remain in line during motor removal and and clean grease from the top housing.
  • Page 7: Assembly

    Secure the housing adapter with two socket head screws, two hex head screws and The seal cartridge assembly can be purchased from Moyno four washers. The two socket head screws go in the as a separate piece from the bearing and bearing sleeve for middle of the housing.
  • Page 8: Reducer/Motor Assembly

    22. Place the housing gasket (3) and bottom cover (5) against the bottom housing and secure them with six 15. Place a large (L) cutter on Shaft 1 with the AP positioned socket head cap screws (33). at Point 6 on the shaft 1 (See figure 4-1.). Place a small (S) spacer cutter on Shaft 2 with the AP positioned at Page 6 Point 3.
  • Page 9: Storage

    Page 7 4-18. STORAGE 4-19. Short-Term Storage. Storage of 6 months or less will not damage the grinder. However, to ensure the best possible protection, the following is advised: Store grinder inside whenever possible or cover with some type of protective covering. Do not allow moisture to collect around the unit.
  • Page 10: Hardware List

    Page 8 4-21. Hardware LIst Your Moyno Annihilator has been designed and built to minimize overall operating cost. All wearable parts are replaceable. A recommended inventory of spare parts is dependent upon the application and the importance of continued operation.
  • Page 11: Parts List

    O-RING 3207902252 INSPECTION PLATE GASKET SEE TABLE 6 INSPECTION PLATE SEE TABLE 6 BEARING SLEEVE (Incl. w/ 4231037001 seal) or sold separately (*)Seal Assembly (Moyno Part #4231036001) includes items 17, 18, 19, 20, 21, 22, 23, 24, & 58 .
  • Page 12: Parts List Continued

    Page 10 Table 2 (Ref. No. 4) ⎯ Side Rail Model Part Number 4241505001 4241506001 4241507001 4241508001 4241509001 4241510001 4241511001 4241512001 6F/8F 4241513001 4241514001 4241515001 Table 3 (Ref. No. 6) ⎯ Idler Shaft Model Part Number 8C/4F 4251464001 12C/6F/8F 4251466001 18C/10F 4251468001 24C/12F...
  • Page 13: Flanged Reference

    NOTE: For units containing different types of cutters on each shaft, half the quantity of cutters need to be ordered for the cutter type on each shaft. Pre-assembled replacement cutter cartridges are available. Consult your local Moyno Representative for details.
  • Page 14: Exploded View

    Page 12 Exploded View...
