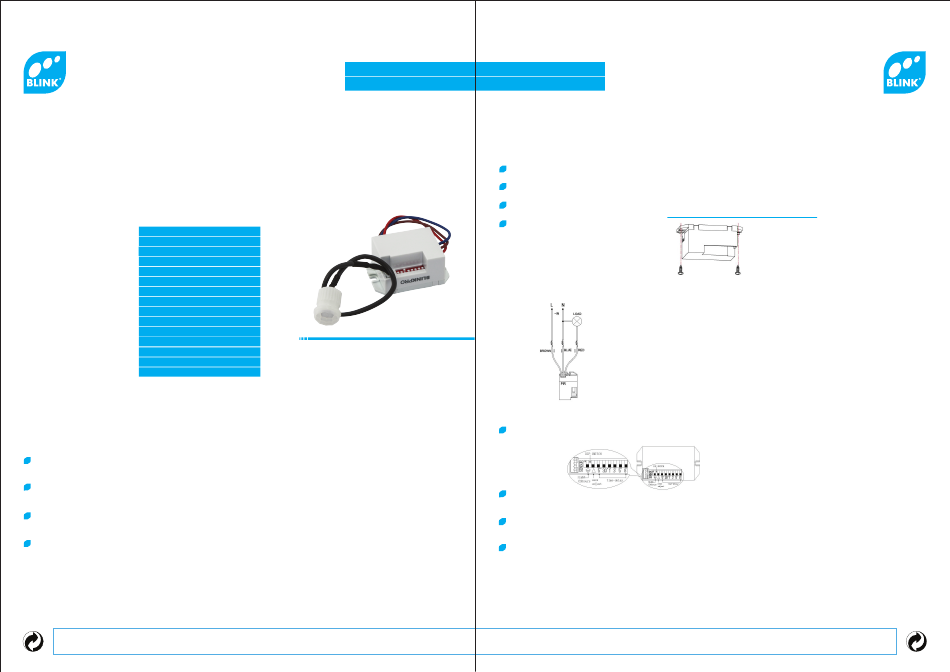

Blink NANO SENSE Instructions

Instructions NANO SENSE
NANO SENSE adopts high sensivity detector, integrated circuit and SMD; It gathers automatic, convenient, safe, energy-saving,
practical functions; It utilizes human motion infrared rays as control signal sources, when one enters the detection field,
it will start the controlled load at once; It can identify day and night automatically; It is easy to install and its usage is widely.
I. Specifications
Power Source
230V~
Detection Range
360º
Frequency 50Hz
Working Temperature -20ºC~+40ºC
Ambient Light 10LUX/2000LUX (adjustable)
Working Humidity <93%RH
Time-Delay 5sec., 30sec., 1min., 3mins.
5mins., 8mins.
Installation Heigh 1.8m~2.5m
Power Consumption
0.45W (work)
0.1W (static)
Rated Load
800W (incandescent lamp)
200W (energy-saving lamp)
Detection Motion Speed
0.6~1.5m/s
Detection Distance
6m max.(24ºC)
II. Function
Can identify day and night automatically; when turn to"sun", it will work day and night; when turn it to "moon"(min.), it will
only work in the ambient light less than 10LUX. As for adjustment, please refer to testing way.
SENS adjustable: It can be adjusted according to using location: low sensivity for small room and high sensivity for large
room.
Time-delay is added continually; when it receives the second induction signals after the first induction, it will compute
time once more on the rest of the first time-delay basics (set time).
Time-delay is adjustable: it can be set according to your desire, the minimum is 5sec., and the maximum is 8min.
All responsibilities for defects or damages are hereby rejected if caused by: incorrect assembling of
the product, incorrect supply, use of lamps not suitable for this product, external agents. BLI/26.1.EN
EU Reg nº 003469376 EU Reg nº 003469376
www.blink.com.pt www.blink.com.pt
III. Installation
Switch off the power.
Fix the bottom on the selected position with the inflated screw through the screw boles in the side of the sensor.
Connecting the power and the load to sensor as per the connection-wire sketch diagram.
Switch on the power and test it.
Connection-wire diagram:
IV. Test
Slide the LUX switch to SUN (like the picture below). Slide the SENS switch to maximum (below is the maximum).
Adjust the TIME switch, slide 5 switch to ON position (slide upwards).
When you switch on the power, and preheat 30 seconds later, the load is turned on, in the absence of no inductor signals,
the load should be stopped working within 5-30sec.
After the first is out, make it sense again after 5-10sec. The load should work. When there is no inductor signals in the
indicator lamp, the load should be stopped working within 5sec.
Slide the LUX switch to MOON position; it is in LUX, the load should be not work in the daylight. If you cover the detection
window with the opaque objects (towel, etc.), the load work, under no induction signal condition, the load should stop
working within 5-15sec.
TAKE NOTICE:
All responsibilities for defects or damages are hereby rejected if caused by: incorrect assembling of
the product, incorrect supply, use of lamps not suitable for this product, external agents. BLI/26.1.EN
When testing in daylight please turn LUX knob to SUN position, otherwise the sensor lamp could not
work!
Figura 1
