600-1064-95R Micro Keyfob Installation and
User Manual
EN

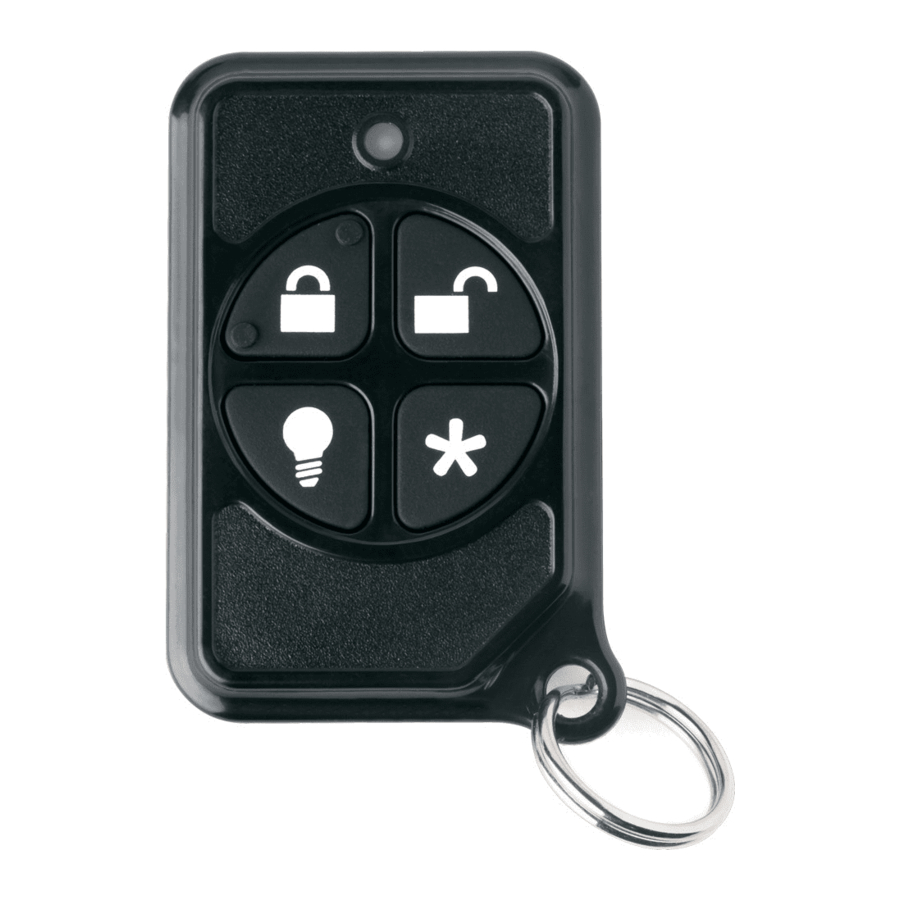

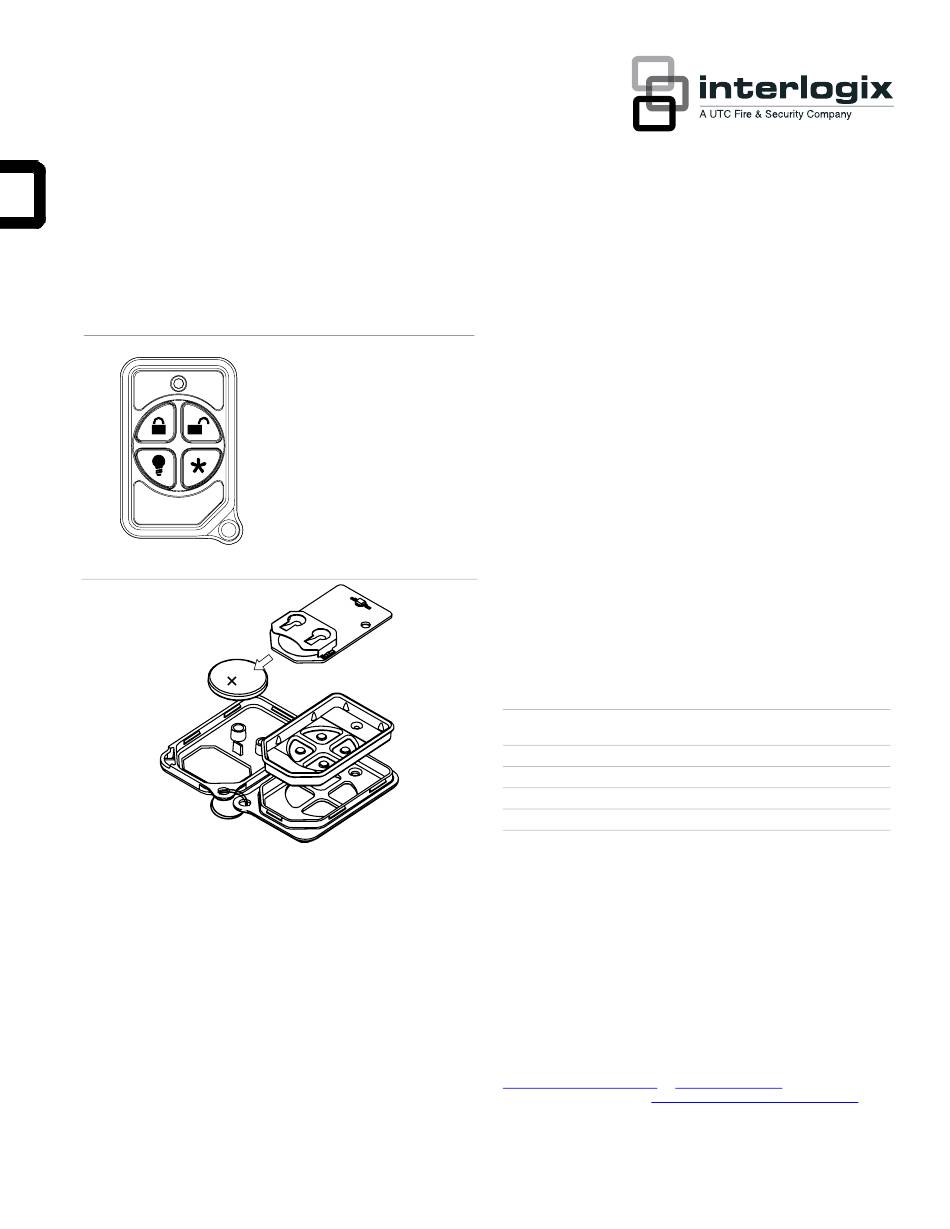

Figure 1: Micro Keyfob
(1)
(2) (3)
(4)
(5)
(6)
Figure 2: Battery replacement
(1)
(3)
(5)
(1) Battery holder (2) Circuit board
(3) Battery (4) Rubber touchpad
(5) Back cover (6) Front cover
Introduction
The Micro Keyfob is a battery-powered, wireless device designed to fit
on a keychain and is compatible with Simon, Concord, NetworX, and
Allegro panels, Learn Mode Repeaters, and QuikBridge Loop
Receivers. It provides a convenient option for the following security
system operations:
• Arm the system (doors, windows, and motions sensors).
• Arm the system with no entry delay (if programmed).
• Disarm the system.
• Trigger panic alarms.
• Turn system-controlled lights on or off (if programmed).
• Operate system-controlled garage doors (if programmed).
P/N 466-2413 • REV B • 29JUN11
(1) LED
(2) Lock button
(3) Unlock button
(4) Light button
(5) Star button
(6) Cover slot
(2)
(4)
(6)
Refer to the control panel documentation for specific instructions on
the programming, testing, and operation of the keyfob.
Keyfob operation
Unlock button . Disarm the system.
Lock button. Arm the system.
Light button. Toggle system-controlled lights on/off (if programmed).
Star button. As programmed in the system.
When the battery is low, the LED light will not turn on when buttons are
pressed, and the keyfob will not operate.
To replace the keyfob battery:
1. To open the keyfob, insert a dime into the corner cover slot and
gently pry the front and back covers apart.
2. Remove the circuit board and rubber touchpad assembly by
pushing inward on one of the touchpad buttons.
3. Slide the battery out and away from the circuit board. Dispose of
the used battery according to battery directive instructions and/or
instructions from local government authorities.
4. Insert a new battery ("+" side away from the circuit board). Press
the circuit board firmly down into the rubber touchpad and then
replace the touchpad assembly into the front cover.
5. Line up the front and back covers starting at the key ring corner
and then snap together.
Specifications
Battery type and CR2032 coin cell battery
replacement battery CR2032 coin cell battery
Estimated battery life 5 years
Transmitter frequency 319.5 MHz
Dimensions (W × H × D) 1.26 × 1.96 × 0.34 in. (32 × 50 × 9 mm)
Operating temperature 10 to 120°F (-12 to 49°C)
Replacement for TX-4014-01-2, TX-4012-01-2, 60-659-95R
60-707-01-95R, 60-694-95R, NX-470
FCC compliance
This device complies with part 15 of the FCC Rules and IC RSS-210.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
FCC ID: B4Z-931-KEYFOB
IC: 1175C-931KEYFOB
This Class B digital apparatus complies with Canadian ICES-003.
Contact information
www.utcfireandsecurity.com or www.interlogix.com
For customer support, see www.interlogix.com/customer-support.
Copyright © 2011 UTC Fire & Security. All rights reserved.
