anko JJB-301 User Manual
anko JJB-301 User Manual

anko JJB-301 User Manual

Hand held steam cleaner

Advertisement

Hand Held Steam Cleaner
User Manual
Model No.: JJB-301
Rev 4
READ AND SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JJB-301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for anko JJB-301

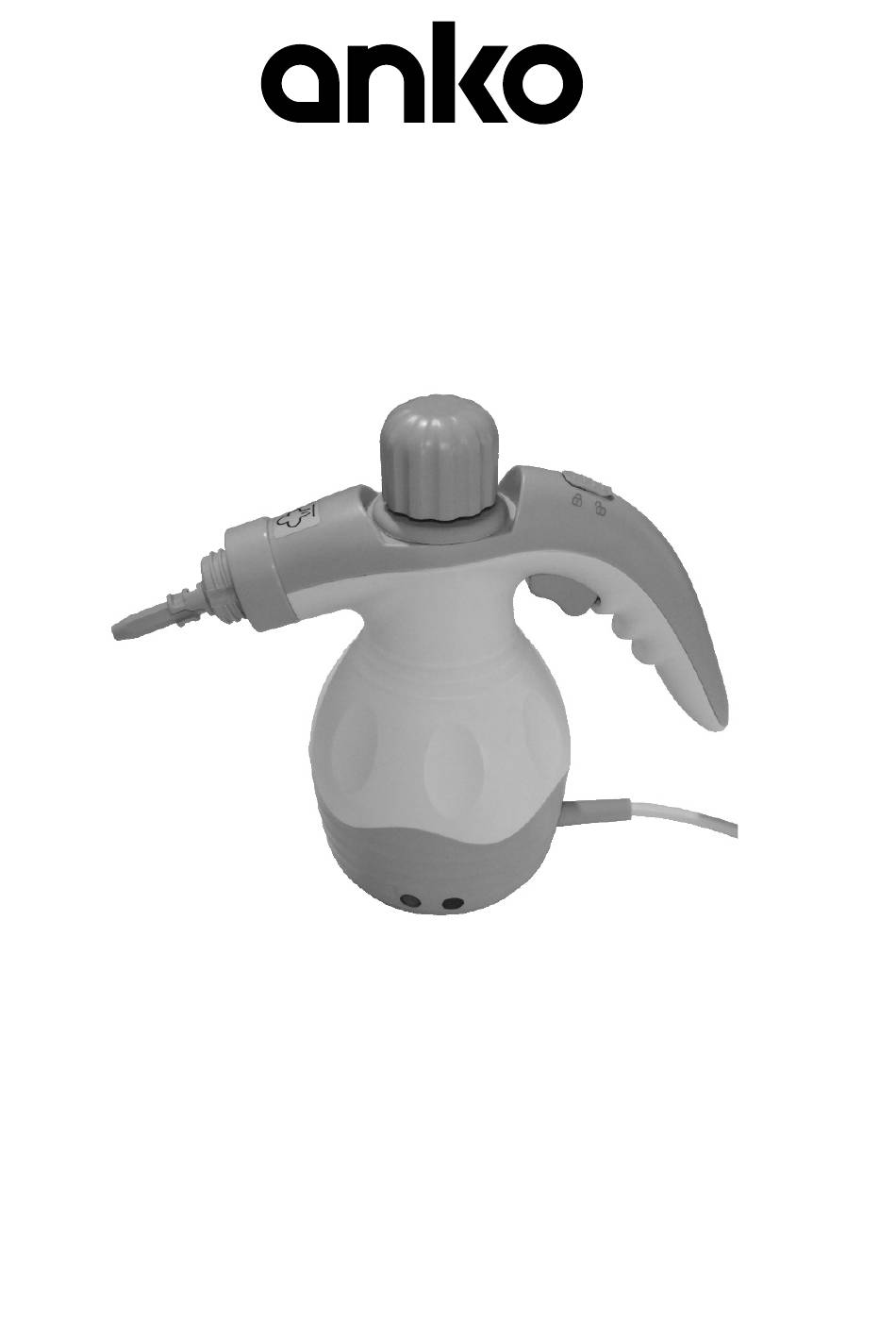

  • Page 1 Hand Held Steam Cleaner User Manual Model No.: JJB-301 Rev 4 READ AND SAVE THESE INSTRUCTIONS...
  • Page 2 Page 2 of 20...
  • Page 3: Table Of Contents

    Warnings ................4 Safety Direction ..............4 Recommendations ............7 Safety: Protective Cut-Out and Pressure Relief ..... 8 Product Characteristics ............ 8 Suggested Uses ..............8 Higher Safety ..............8 Durable ................9 Energy Efficient ..............9 Easy to Use ............... 9 Specification ..............
  • Page 4: Warnings

    Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 5 DO NOT use near sinks, baths or showers containing water or near running water. DO NOT use in swimming pools, etc. containing water. Always disconnect the plug from wall socket, let cool completely and release the pressure before removing the water fill cap. It is highly recommended to disconnect the plug from wall socket and let cool before changing the accessories.
  • Page 6 It is highly recommended to disconnect the plug from wall socket, let cool and release all internal pressure before changing the attachments. Note: Squeeze the steam trigger to release the pressure. Never open the cap to release pressure as Injury may result. To avoid an overloaded circuit, do not operate another high current appliance on the same electrical circuit.
  • Page 7: Recommendations

    No liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling of appliance. Additional Safety Instructions Relating to the Plug and Power Cord If using an extension cord: • The technical specifications of the extension cord must match or exceed the technical specifications of this appliance.
  • Page 8: Safety: Protective Cut-Out And Pressure Relief

    Safety: Protective Cut-Out and Pressure Relief This appliance is designed in such a way that when the water in the tank has been used up, the thermostat will activate and cut power off to the heating element thus preventing the appliance from continuing to heat with no water. The appliance should be immediately switched off and unplugged when there is no more steam generated.
  • Page 9: Durable

    This appliance is supplied with a 3-pin power lead and plug with an earthing connection so that the tank and heating components can be grounded in order to ensure safety in operation. The extra long power cord with double insulation, can effectively insulate the cable from water spray and dust, and ensure safety under normal operating conditions.
  • Page 10: Components

    Components Item Description Item Description Safety Screw Cap Angled Spray Nozzle Steam Trigger Lock Funnel Steam Trigger Brush Nozzle Handle Power cord and plug Extension Nozzle Indicator Lights Squeegee Plate Flexible Extension Nozzle Beaker Mop Head Nozzle / Coupling Page 10 of 20...
  • Page 11: Operation Procedures

    Operation Procedures Before first use, please read the Instruction Manual carefully. • • Place the steam cleaner on a level flat surface. Push down on the safety screw cap and at the same time unscrew the • safety screw cap Anti-clockwise then remove it. Note: Constant downward pressure is required when unscrewing the cap.
  • Page 12 Remove the funnel and re-fit the safety screw cap. • Note: Screw the cap in clockwise as far as possible then push down hard on the cap top and turn to fully tighten the cap in position. Constant downward pressure is required when screwing the Cap Closed •...
  • Page 13: Functions

    NOTE: It is highly recommended to disconnect the plug from the power point, let cool and release all internal pressure before changing the attachments as the nozzle will be extremely hot. Slide the steam trigger lock down then squeeze the steam trigger to release the pressure.
  • Page 14: Upholstery Cleaning

    Upholstery Cleaning NOTE: Read the care labels for the upholstered surface before proceeding to ensure steaming is permissible. We suggest to perform a test clean in the surface in an inconspicuous area. Assemble the same components as under section “Steaming Clothes”. •...
  • Page 15: Mop Head / Squeegee Plate For Cleaning Windows

    The tip of the Extension Nozzle has six sides which means the Angled • Nozzle or the Brush Nozzle can be positioned at six different angles depending on the application. Installing the Angled Nozzle or the Brush Nozzle to the Flexible •...
  • Page 16: Mop

    10.4 Mop Take the Mop and stretch it over the bottom face of the Mop Head • Accessory until it fits neatly. To remove the Mop, gently pull the side down and the pull off. • 11 Refill Water During Operation Unplug the appliance from the power point.
  • Page 17: Cleaning Your Steam Cleaner

    Completely remove the safety screw cap. Caution must be taken as the • unit will still be very hot. Allow the appliance to cool it down for about 10 minutes. • Tip out the residual water in the tank and clean the external surface with •...
  • Page 18: Troubleshooting

    14 Troubleshooting Power Not Switched On. Switch On at power point. No water in the tank. Add water to the water tank. Product cannot be repaired. No Steam. Thermal Fuse Blown Call Customer service Check to see if there is No Power to Power Point power supplied with another appliance, such as a lamp.
  • Page 19: Warranty Against Defect

    15 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
  • Page 20 Page 20 of 20...
