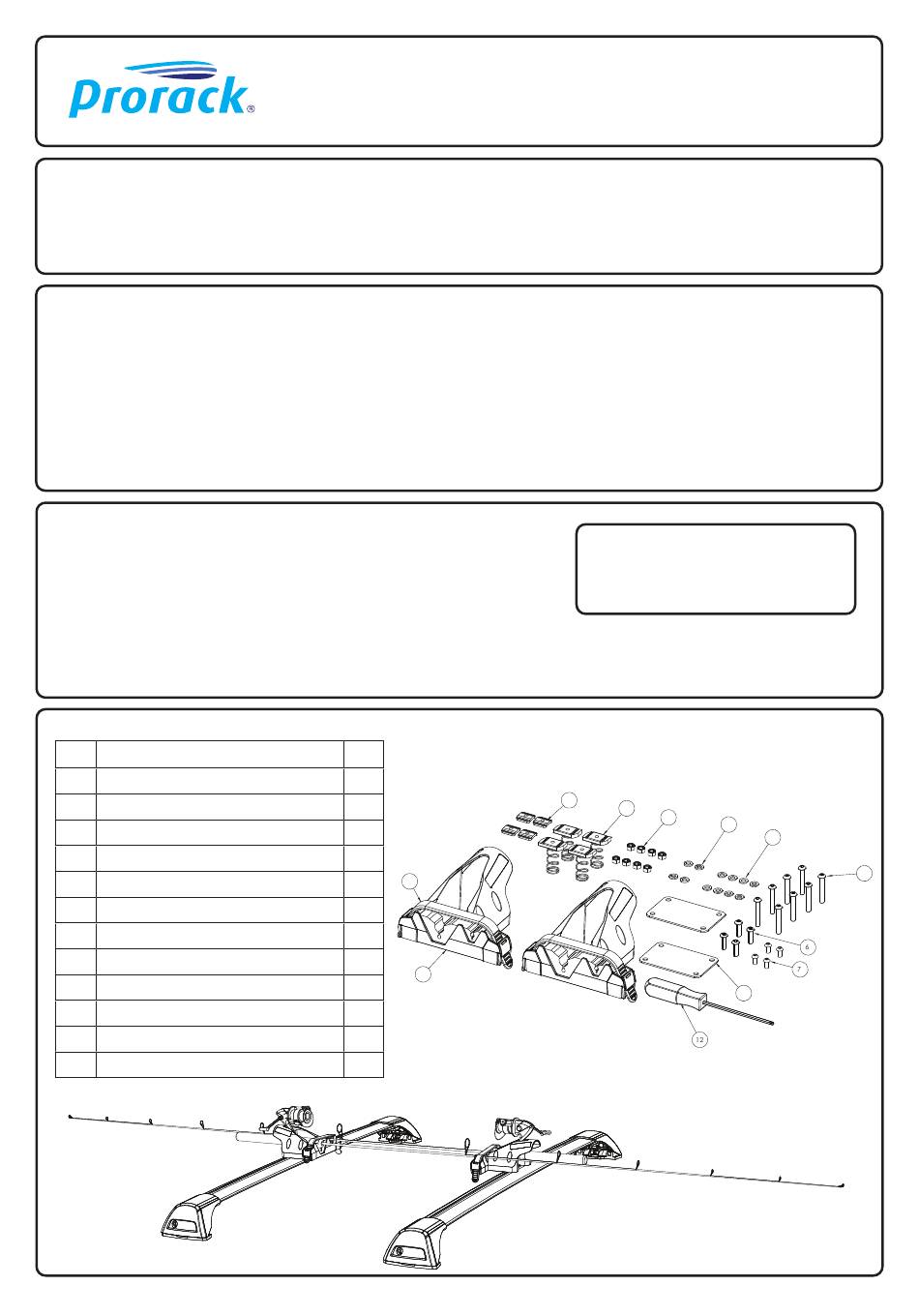

First Time Installation
•
Please read instructions carefully before installation.
•
Check the contents of kit. Contact your Prorack dealer if any parts appear to be missing or damaged.
•
Clean your roof racks prior to fi tting the Fishing Rod Holder.
Important Warning
•
It is critical that all Prorack racks and accessories be properly and securely attached to your vehicle. Improper
attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others.
•
You are responsible for securing the racks and accessories to your car, checking the attachments prior to use, and
periodically inspecting the products for adjustment, wear, and damage.
•
If you do not understand all of the instructions and cautions, or if you have no mechanical experience and are not
thoroughly familiar with the installation procedures, you should have the product installed by a professional installer
such as a roof rack specialist.
Contents
Go to Page 2
Go to Page 3
Installation onto Prorack Standard and other square Crossbars
Go to Page 4
Kit Contents
Item Component
1
M6 Spring Nut
2
M6 Slot Nut
3
M6 Nylock Nut
4
M6 Spring Washer
5
M6 Washer
6
M6 Button Head Capscrew 20 mm
7
M6 Button Head Capscrew 12 mm
8
Clamp Plate For P-Bar
9
M6 Button Head Capscrew 40 mm
10
Fishing Rod Holder Zip Strap
11
Fishing Rod Holder Body
12
Screwdriver Allen Key 4 mm
09-13-585-Rev3
Fishing Rod Holder
Qty
4
4
8
4
10
8
4
4
2
11
8
2
2
1
Tools Required
•
10 mm Spanner or Torque Wrench
(for Standard Bar fi tment only)
2
1
3
4
PR3217
5
9
8
Page 1 of 5
