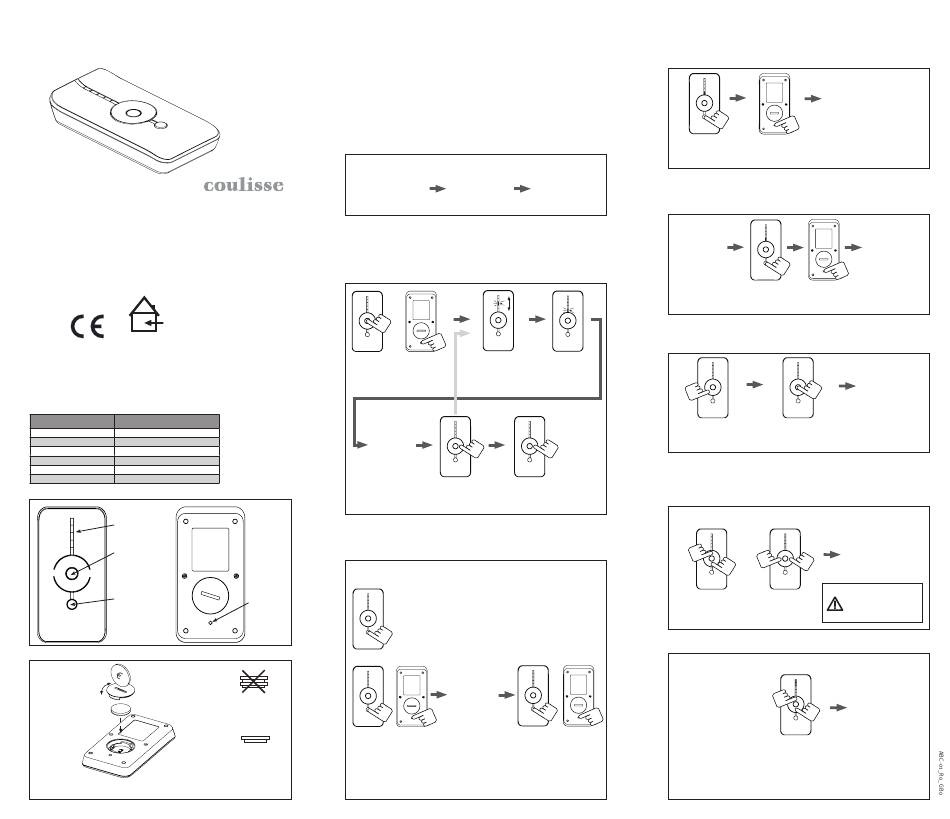

Coulisse Absolute Control ABC-01 Manual

Manual
Absolute Control
Remote control ABC-01
WARNING: Important safety instructions. Follow all instructions,
since incorrect installation can lead to severe injury.
WARNING: Do not make repairs yourself. Do not attempt to open the device or
disassemble it. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
indoor use only

1. General information

The ABC-o1 is an intelligent remote to operate Coulisse automation blinds.

1.1 Performances

ABC-01
Battery CR2032 1.5V
Channels 5
infinite
Max. blinds per channel
Range (inside building) 20m, 2 concrete walls
Frequency 2.4 GHz
Weight 56 grams

1.2 Buttons

Channel Indicator
LED's (1 to 5)
Center button
(stop - favorite)
Up
Left Right
Down
ChannelSelect
button

1.3 Changing the battery

+

2. Programming

To program a blind:
1. Set blind in program mode, chapter 2.1
2. Program the blind, chapter 2.2
3. Exit the program mode, chapter 2.1

2.1 Set a blind in program mode

Setting a blind in program mode can be done in three ways. If a blind is in program mode
it will show a stepping motion. The blind can still be operated with the buttons. If a program
action is confirmed, the blind stops stepping for 3 seconds. A blind will exit the program
mode automatically after 4 minutes.
1. By hand: press the program button on the blind
It is possible to set multiple blinds in program mode and program them simultaneously.
Set in Program mode:
Press program button
on the blind,
The blind starts
stepping
2. By remote: SingleSelect mode
The SingleSelect mode is a patented method to set a blind in program mode by remote
control. When a remote and blind are in SingleSelect mode, the blind can be operated,
paired to one or more channels and programmed.
Other blinds are disconnected from the remote, untill the SingleSelect mode has ended.
+
To start the SingleSelect mode:
press center + program button
(use pen)
The blind is in
program mode
and stepping
Go to chapter
2.2 for
program options
3. By remote: ChannelSelect
ChannelSelect is a method to set all blinds that are paired in the same channel,
into program mode.
Program
button
Select the channel
+
+
-
2X CR2016 1,5V
+
To start the channel
select mode: press channel
-
CR2032 1,5V select + program button
(use pen)
Exit Program mode:
Program the blind Press program button
on the blind,
Go to chapter 2.2 The blind stops
for program options
stepping
Searching: indication Blind found:
LED's are Indication LED
flashing up and down is flashing in
Please wait: remote is selected channel
searching for blinds
To search the next Exit the SingleSelect mode
blind: press right Press right during search
(press left to find
previous)
All blinds are in
program mode
+
and stepping
Go to chapter 2.2
for
program options
To exit the channel
select mode: press channel
select + program button
(use pen)

2.2 Programming a blind

1. Pair a blind to a channel
To pair a blind to a channel, the blind must be in program mode.
See chapter 2.1 how to set a blind in program mode and exit program mode.
Action confirmed:
blind stops stepping
for 3 seconds
Choose channel to Pair/unpair by pressing
pair by pressing the the program button
ChannelSelect button (use pen)
2. Pair multiple blinds simultanously to a channel or other remote
To pair multiple blind simultanously to a channel or other remote, all blinds must be in
program mode. See chapter 2.1 how to set a blind in program mode and exit program mode.
Pairing multiple blinds simultanously to a channel is not possible for Singleselect
Set multiple blinds
in program mode
by hand or by
ChannelSelect.
(See chapter 2.1)
Choose channel to Pair/unpair by pressing
pair by pushing the the program button
ChannelSelect button (use pen)
3. Set the favorite position
To program a blind, the blind must be in program mode.
See chapter 2.1 how to set a blind in program mode and exit program mode.
Set the blind Set your position by
in the desired position pressing the center
button for two seconds
4A. Switch the blind's direction of rotation
To program a blind, the blind must be in program mode. See chapter 2.1 how to set a blind
in program mode and exit program mode.
Example: when you press left/down on the remote and your blind moves to the right/up,
you have to switch the rotation direction of the blind.
Switch UP & DOWN Switch LEFT & RIGHT*
Hold the up and down Hold the left and right
button to switch the button to switch the !
direction of rotation direction of rotation.

4B. SingleSelect mode: Switch direction of rotation for panel and vertical blinds

Switch LEFT & RIGHT
The remote recognizes
a vertical or paneltrack
blind automatically and
switches the buttons
up&right and down&left.
The channel indicator is
also reversed
For Panel and Vertical blinds:
Hold the up and down button
to switch the left&right rotation
Action confirmed:
blind stops stepping
for 3 seconds
Action confirmed:
blind stops stepping
for 3 seconds
Action confirmed:
blind stops stepping
for 3 seconds
* When SingleSelect
method is used: follow
step 4B to switch
LEFT & RIGHT.
Action confirmed:
blind stops stepping
for 3 seconds
